Panduit LCAX2-56H-E
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

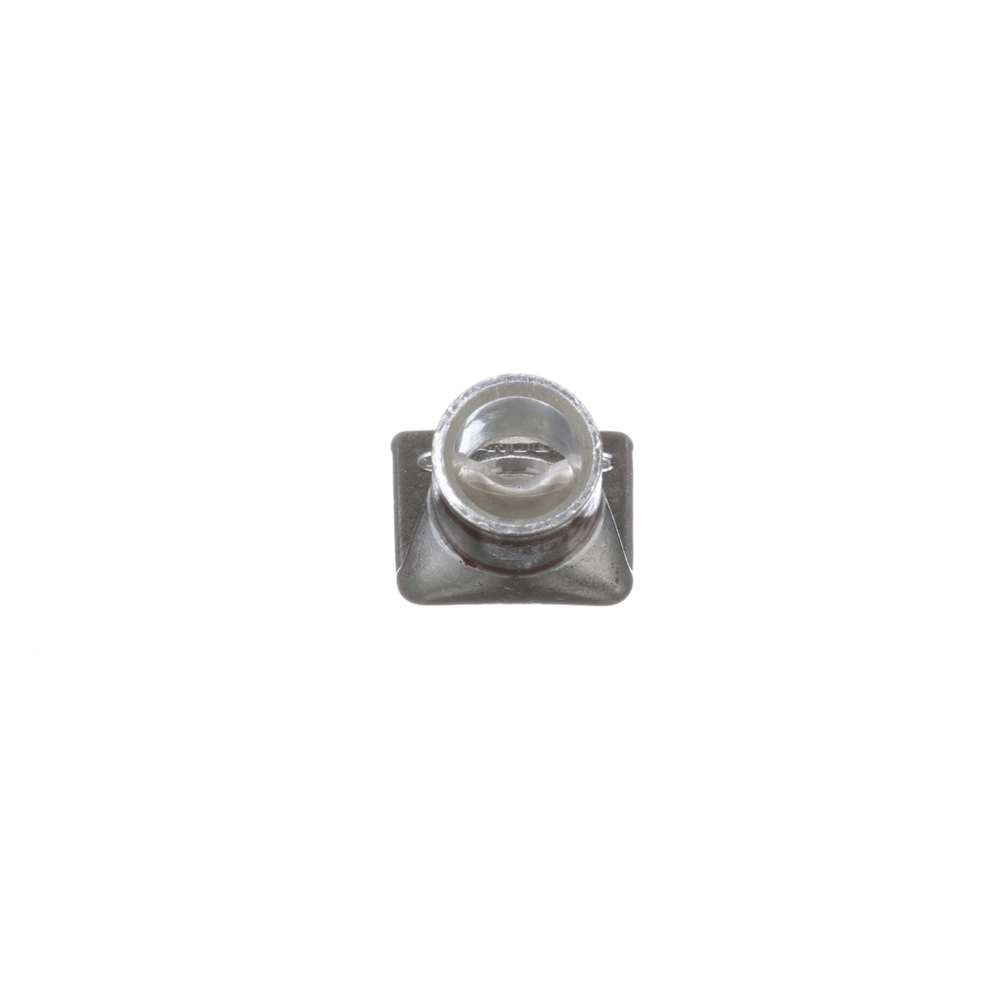

One-hole, flex lug, #2 AWG wire, 5/16 stud hole, 45° angle tongue.Pan-Lug™ LCAX2-56H-E Copper Compression Connectors - Lugs
Panduit LCAX2-56H-E is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- MX
- EAN
- 00074983442973
- GTIN Package
- 00074983442973
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 0.0318
- Standard Package Weight Pounds
- 0.8500
- Std Package Height In
- 3.4
- Std Package Height MM
- 86.36
- Std Package Length In
- 4.8
- Std Package Length MM
- 121.92
- Std Package Width In
- 3.45
- Std Package Width MM
- 87.63
- Std. Pkg. Qty.
- 20
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 07498344297
Specifications
- Barrel Length (In.)
- 0.59
- Barrel Length (mm)
- 15
- Barrel Type
- Standard Barrel Length with Inspection Window
- Base Material
- Copper
- Burndy Die Index Number
- 10
- Class G Copper Flex Conductor Size (AWG)
- 2
- Class H Copper Flex Conductor Size (AWG)
- 2
- Class I Copper Flex Conductor Size (AWG)
- 2
- Class K Copper Flex Conductor Size (AWG)
- 2
- Class M Copper Flex Conductor Size (AWG)
- 2
- Color Code
- Brown
- Copper Code Conductor Size (AWG)
- 2
- CSA Temperature Rating (°C)
- 90
- DLO Copper Flex Conductor Size (AWG)
- 2
- Finish/Coating
- Tin-Plated
- Lug Type
- 1 Stud Hole Lug. 45 degree bend
- Maximum Voltage (kV)
- 35
- Overall Length (In.)
- 1.42
- Overall Length (mm)
- 36.1
- Panduit Die Index Number
- P33
- Product Segment
- IEI
- Product Type
- Copper Compression Connectors - Lugs
- Standards Met
- UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13
- Stud Hole Size (In.)
- 5/16
- Stud Hole Size (mm)
- 7.9
- Sub Brand
- Pan-Lug™
- T & B Die Index Number
- 33
- Tongue Angle
- 45°
- Tongue Thickness (In.)
- 0.11
- Tongue Thickness (mm)
- 2.8
- Tongue Type
- Standard
- Tongue Width (In.)
- 0.7
- Tongue Width (mm)
- 17.8
- UL Temperature Rating (°C)
- 90
- Wire Strip Length (In.)
- 11/16
- Wire Strip Length (mm)
- 17.5
