Panduit LAMA600S-38-6Y
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

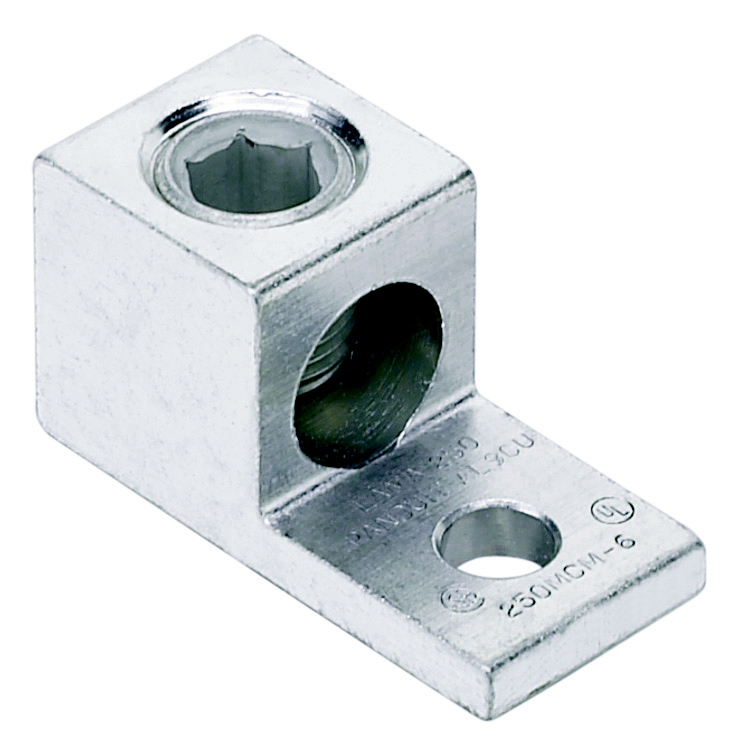

One-hole, aluminum, single barrel lug, type LAMA, #4 AWG - 600 kcmil, 1/0 AWG - 250 kcmil, 3/8" (9.5mm) stud hole.Aluminum Mechanical Lug, 1 Hole, 1 Barrel, #4 AWG - 600 kcmil or (2) 1/0 AWG - 250 kcmil, 3/8" (9.5mm) Stud
Panduit LAMA600S-38-6Y is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Specifications
- Aluminum or Copper Conductor Size Range
- #4 AWG - 600 kcmil - (2) 1/0 AWG - 250 kcmil
- Conductor Material
- Tin-Plated Aluminum
- Conductor Size
- #4 AWG Code - 600 kcmil Code - (2) 1/0 AWG Code - 250 kcmil Code
- Conductor Size Range (mm²)
- 25 - 300 or (2) 70 - 150
- Copper and Aluminum Conductor Size Range
- #14 AWG - #6 AWG
- Country of Origin 2Digit
- MX
- Country of Origin Description
- Mexico
- Gross Volume UOM
- CU
- Hazardous Material Flag
- N
- Height 1 In. (mm)
- —
- Height 2 In. (mm)
- —
- Hex Key Size (In.)
- 3/8
- Hex Size (mm)
- 9.5
- Insulation
- —
- Lowest Level UOM
- EA
- Master Pack Packaging Description
- BOX
- Master Pack Quantity
- 1
- Max. Voltage Rating
- —
- Mounting Hole Spacing In. (mm)
- —
- NEMA Hole Spacing
- —
- NMFC Rate
- 70
- No. of Conductors
- 1
- No. of Holes
- 1
- No. of Ports
- —
- Part Number Series
- LAMA
- Parts Available
- N
- Product Group Assignment
- Power Connectors
- Shelf Life
- 0
- Stud Hole Size (In.)
- 3/8
- Stud Hole Size In. (mm)
- 3/8 (9.525)
- Stud Hole Spacing In. (mm)
- —
- Temperature Rating
- —
- Tightening Torque (In-Lbs)
- See product packaging
- Tightening Torque (N-m)
- See product packaging
- Tongue Length
- 1.50
- Tongue Length In. (mm)
- 1.50 (38.1)
- Tongue Length (mm)
- 38.1
- Tongue Thickness
- 0.31
- Tongue Thickness In. (mm)
- 0.31 (7.874)
- Tongue Thickness (mm)
- 7.9
- Tongue Type
- Straight
- Tongue Width (In.)
- 1.38
- Tongue Width In. (mm)
- 1.38 (35.052)
- Tongue Width (mm)
- 35.1
- Unit Volume
- .0093667
- Unit Weight
- .2958
- UNSPSC
- 39121408
- UOM EA Pk
- PK
Certifications & Approvals
- ARRA Compliant
- Y
- Buy American Compliant
- Y
- CE Compliant
- No
- CE Marking
- No
- CSA Certified
- C22.2 No. 65-13
- ECCN Commodity Code
- EAR99
- MSDS Indicator
- N
- Ozone Depleting Compounds
- N
- RoHS Compliancy Status
- Compliant
- Tin-Plating Meets ASTM B545-97, Class C
- 320µ in (8µ m)
- UL and CSA Temperature Rating
- 90°C
- UL and CSA Voltage Rating
- 600V
- UL Listed
- 486A-486B File #E52164
- UL Temperature Rating
- —
Packaging Details
- GTIN Package
- 00074983596188
- Minimum Order Quantity
- 1
- Part Number Full UPC
- 7498359618
- Sell Pack Packaging Description
- BOX
- Sell Pkg Qty 1
- 1
- Ship Pack Packaging Description
- BOX
- Ship Pkg Qty 1
- 1
- Stanard Carton Quantity
- 0
- Standard Carton Weight
- 0
- Standard Package Quantity
- 6
- Standard Package Weight
- 1.7747999999999999
- Std Package Height
- 3
- Std Package Height MM
- 76.2
- Std Package Length
- 7
- Std Package Length MM
- 177.8
- Std Package Width
- 3
- Std Package Width MM
- 76.2
- UNSPSC Package Description
- PACKAGE
- UNSPSC Package UOM
- PK
- UNSPSC Piece Desription
- EACH
- UNSPSC Piece UOM
- EA
Specifications
- Brand Name
- Panduit
- Height (In.)
- 1.81
- Height In (mm)
- 1.81 (46.0)
- Height (mm)
- 46.0
- Length (In.)
- 2.81
- Length In (mm)
- 2.81 (71.4)
- Length (mm)
- 71.4
- Material
- Tin-Plated Aluminum
- Note
- replaces LAMA600S-38-6
- Order Min Qty Each
- 1
- Order Multiple Quantity Each
- 1
- Sub Brand
- Type LAMA
- Width In (mm)
- —
