Panduit IUTP6X2MBL
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

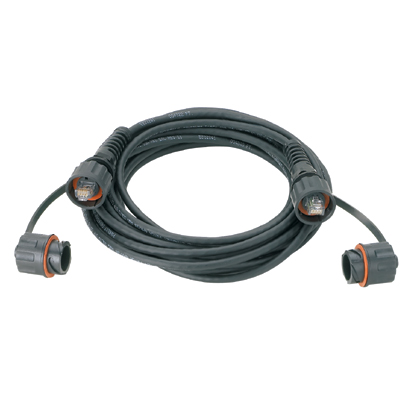

The IndustrialNet™ Cat 6A Unshielded Patch Cord is constructed of industrial grade, 24 AWG, U/UTP, twisted pair, stranded, CMR cable with IP67 industrial bulkhead modular connector with protective cap. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 2 meters in length and black.Industrial Cat 6A Unshielded 600 V Patch Cord, Variant 1 Bulkhead, 2m, BL
Panduit IUTP6X2MBL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- CR
- EAN
- 00613056181106
- GTIN Carton
- 50613056181101
- GTIN Package
- 00613056181106
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 10
- Min. Order UOM
- Piece
- Pallet Quantity
- 1,200
- Pallet Volume
- 42.172778
- Pallet Weight
- 395.5704
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.3514
- Standard Carton Weight Pounds
- 3.2964
- Standard Package Volume Ft3
- 0.0351
- Standard Package Weight Pounds
- 0.3296
- Std Carton Height In
- 4.4
- Std Carton Height MM
- 111.76
- Std Carton Length In
- 13.4
- Std Carton Length MM
- 340.36
- Std Carton Width In
- 10.3
- Std Carton Width MM
- 261.62
- Std Ctn Qty
- 10
- Std Package Height In
- 1.5
- Std Package Height MM
- 38.1
- Std Package Length In
- 11
- Std Package Length MM
- 279.4
- Std Package Width In
- 9
- Std Package Width MM
- 228.6
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 61305618110
Specifications
- Application
- Patch Cords provide an ideal solution to support industrial Ethernet from the Local Area Network (LAN) based support offices to the processing devices on the plant floor even under harsh industrial conditions. Innovative design features provide a secure, reliable connection for superior data transmission in work cells where moisture and dust/ particles are encountered, in temperature extremes and in applications with vibration.
- Boot Color
- Black
- Cable Construction
- U/UTP
- Color
- Black
- Conductor Gauge (AWG)
- 24
- Conductor Gauge (kcmil)
- 0.4
- Conductor Type
- Stranded
- Connector 1 Type
- Modular Plug
- Connector 2 Type
- Modular Plug
- Flammability Rating
- CM
- IEC Variant
- 60603-7
- IP Rating
- IP67
- Jacket Material
- Thermoplastic Elastomer
- Maximum Operating Temperature (°C)
- 70
- Minimum Operating Temperature (°C)
- -20
- Nominal Cable Outside Diameter (mm)
- 7.4
- Overall Length (m)
- 2
- Patch Cord Type
- Unshielded
- Performance Level
- Category 6A
- Plug Housing Material
- Polycarbonate
- Plug Type
- 8 Position
- PoE Compatibility
- PoE
- Product Segment
- IAI
- Product Type
- Industrial Copper Patch Cord
- Standards Met
- Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6A and ISO11801 Class EA standards at swept frequencies 1 to 500 MHz, Patch cords meets IEC 60603-7; housing meets IEC 61076-3-106, Meets ANSI/TIA-1096-A; contacts plated with 50 microinches of gold for superior performance, Bulkhead connection rated IP65/IP67 for dust protection and temporary liquid immersion, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS Compliant
- Sub Brand
- IndustrialNet™
- Wiring Scheme
- T568B
