Panduit ISTPHCH2MBL
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

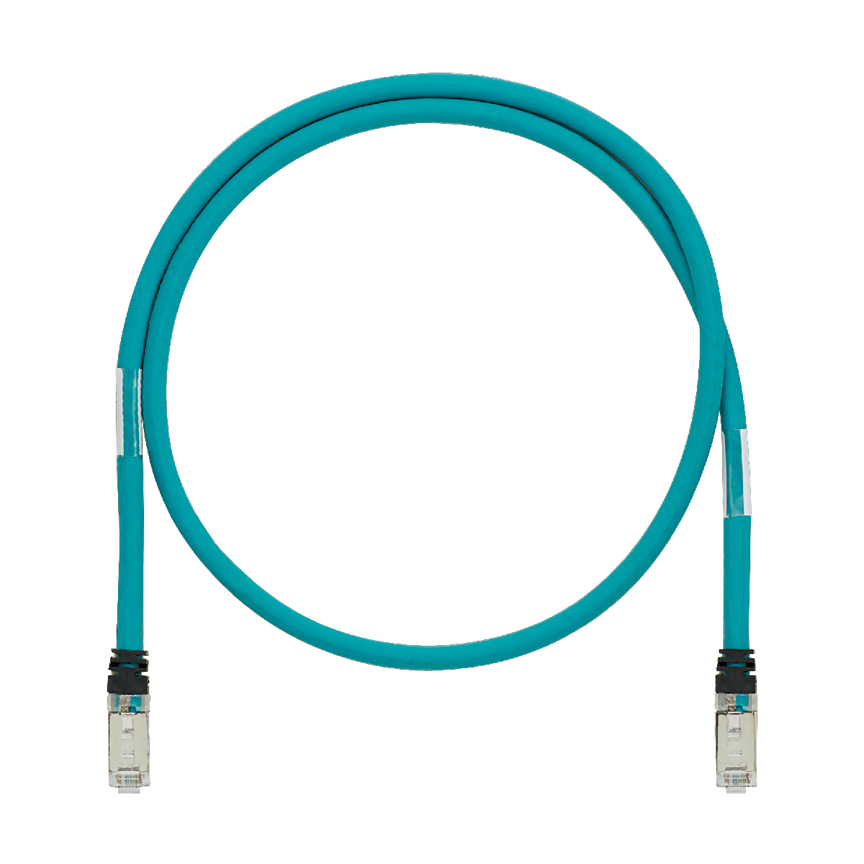

The IndustrialNet™ Cat 5e Shielded Patch Cord is constructed of industrial grade, 26 AWG, SF/UTP, twisted pair, stranded, CM cable with industrial bulkhead shielded modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 2 meters in length and Black.Industrial Cat 5e Shielded 600 V Patch Cord, 2m, BL
Panduit ISTPHCH2MBL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- CR
- EAN
- 00074983720088
- GTIN Carton
- 50074983720083
- GTIN Package
- 00074983720088
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 10
- Min. Order UOM
- Piece
- Pallet Quantity
- 1,760
- Pallet Volume
- 48.005630
- Pallet Weight
- 745.2276
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.2728
- Standard Carton Weight Pounds
- 4.2342
- Standard Package Volume Ft3
- 0.0273
- Standard Package Weight Pounds
- 0.4234
- Std Carton Height In
- 4.4
- Std Carton Height MM
- 111.76
- Std Carton Length In
- 10.4
- Std Carton Length MM
- 264.16
- Std Carton Width In
- 10.3
- Std Carton Width MM
- 261.62
- Std Ctn Qty
- 10
- Std Package Height In
- 1.5
- Std Package Height MM
- 38.1
- Std Package Length In
- 11
- Std Package Length MM
- 279.4
- Std Package Width In
- 9
- Std Package Width MM
- 228.6
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 07498372008
Specifications
- Application
- (1) 10BASE-T (Ethernet) (2) 100BASE-T (Fast Ethernet) (3)1000BASE-T (Gigabit Ethernet) (4) Industrial Ethernet (5) Ethernet/IP (6) Control Panel deployments featuring power source voltages (7) Uplinks featuring gigabit data transmission from the control panel to the consolidation point (8) High flex applications – Robotic, C-Track
- Boot Color
- Black
- Cable Construction
- SF/UTP
- Color
- Black
- Conductor Gauge (AWG)
- 24
- Conductor Gauge (kcmil)
- 0.4
- Conductor Type
- Stranded
- Connector 1 Type
- Modular Plug
- Connector 2 Type
- Modular Plug
- Flammability Rating
- CM
- IEC Variant
- 60603-7
- IP Rating
- IP20
- Jacket Material
- Thermoplastic Elastomer
- Maximum Operating Temperature (°C)
- 70
- Minimum Operating Temperature (°C)
- -20
- Nominal Cable Outside Diameter (mm)
- 7.2
- Overall Length (m)
- 2
- Patch Cord Type
- Shielded
- Performance Level
- Category 5e
- Plug Housing Material
- Polycarbonate
- Plug Type
- 8 Position
- PoE Compatibility
- PoE
- Product Segment
- IAI
- Product Type
- Industrial Copper Patch Cord
- Standards Met
- Meets all applicable ANSI/TIA-968-A requirements; contacts plated with 50 microinches of gold for superior performance, Meets IEC 60603-7, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, UL AWM Style 2463 (80°C 600 V) Flex Life Test: 1 million cycles at 10x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test: 3 million cycles, 360°, RoHS Compliant
- Sub Brand
- IndustrialNet™
- Wiring Scheme
- T568A
