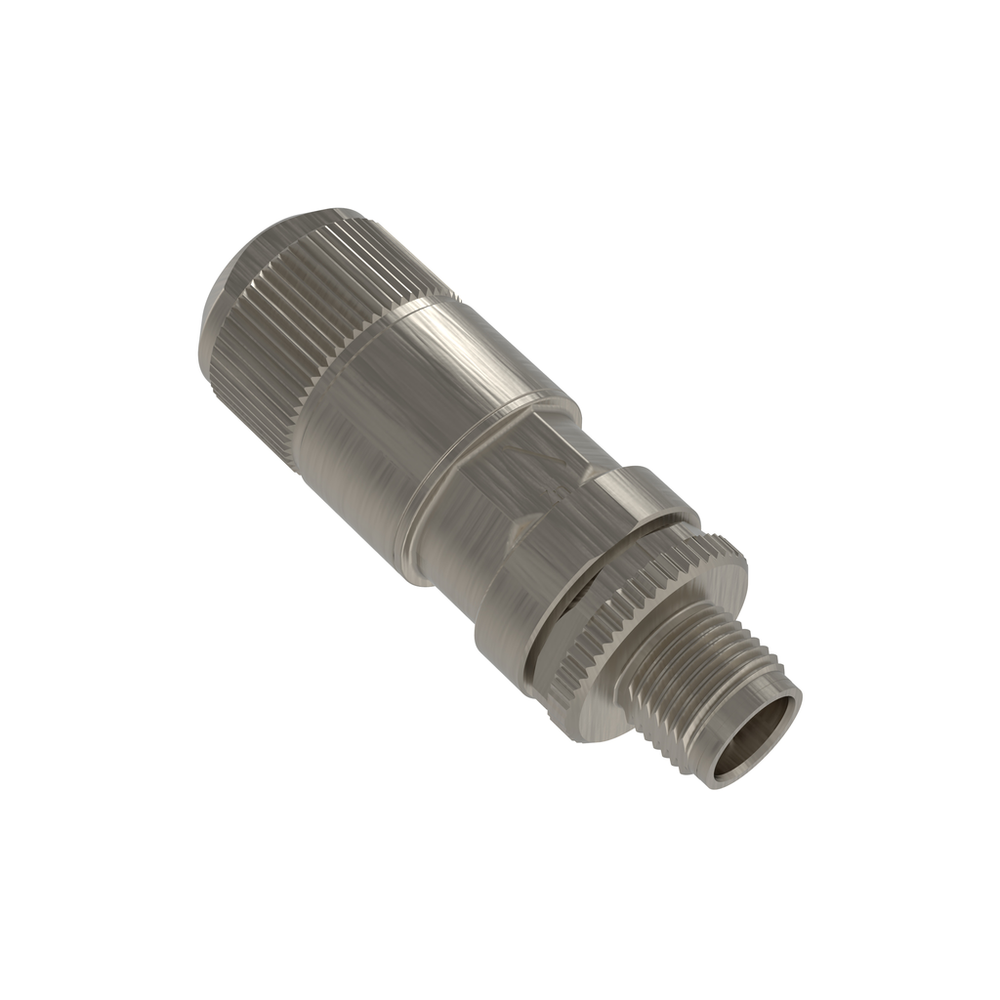

Panduit ISPS6A88MFA
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The M12 X-Code modular plug is field terminable for use with industrial grade, 26/7 - 22/7 AWG stranded, Cat 6A, UTP or shielded copper cable. This plug is constructed of a zinc cast housing with a 360° shield. The plug has an ingress protection rating of IP65/IP67 and offers an extended temperature range as required for more demanding applications. It is easily attachable without any special tools and is capable of termination to a 2-pair stranded or solid twisted-pair copper cable.Industrial M12 X-Code Field Term Modular Plug
Panduit ISPS6A88MFA is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- TW
- EAN
- 00613056173422
- GTIN Carton
- 50613056173427
- GTIN Package
- 00613056173422
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.1352
- Standard Carton Weight Pounds
- 1.6000
- Standard Package Volume Ft3
- 0.0135
- Standard Package Weight Pounds
- 0.1600
- Std Carton Height In
- 4.1
- Std Carton Height MM
- 104.14
- Std Carton Length In
- 11.25
- Std Carton Length MM
- 285.75
- Std Carton Width In
- 5.45
- Std Carton Width MM
- 138.43
- Std Ctn Qty
- 10
- Std Package Height In
- 1
- Std Package Height MM
- 25.4
- Std Package Length In
- 4.45
- Std Package Length MM
- 113.03
- Std Package Width In
- 3.65
- Std Package Width MM
- 92.71
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 61305617342
Specifications
- Color
- Metallic
- Conductor Gauge (AWG)
- 22
- Connector 1 Type
- X-code
- Environment
- Harsh Industrial
- Overall Depth (In.)
- 2.32
- Overall Depth (mm)
- 58.9
- Overall Height (In.)
- 0.78
- Overall Height (mm)
- 19.7
- Overall Width (In.)
- 0.59
- Overall Width (mm)
- 14.9
- Performance Level
- Category 6A
- Product Segment
- IAI
- Product Type
- M12 X-Code Field Terminable Plug
- Standards Met
- Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6A and ISO11801 Class EA standards at swept frequencies 1 to 500 MHz, Shall meet ODVA Ethernet/IP^ , PROFINET and CC-Link performance requirements, Plug meets IEC 61076-2-109, IEC 60532-4, and IEC 60529 specifications, Compliant to UL 1863, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant.
- Sub Brand
- IndustrialNet™
- Surface Treatment
- Zinc Die cast, Nickel Chrome Plated and Plastic part is PA UL94 V-0
