Panduit ISFCH6X04ATL-UG
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

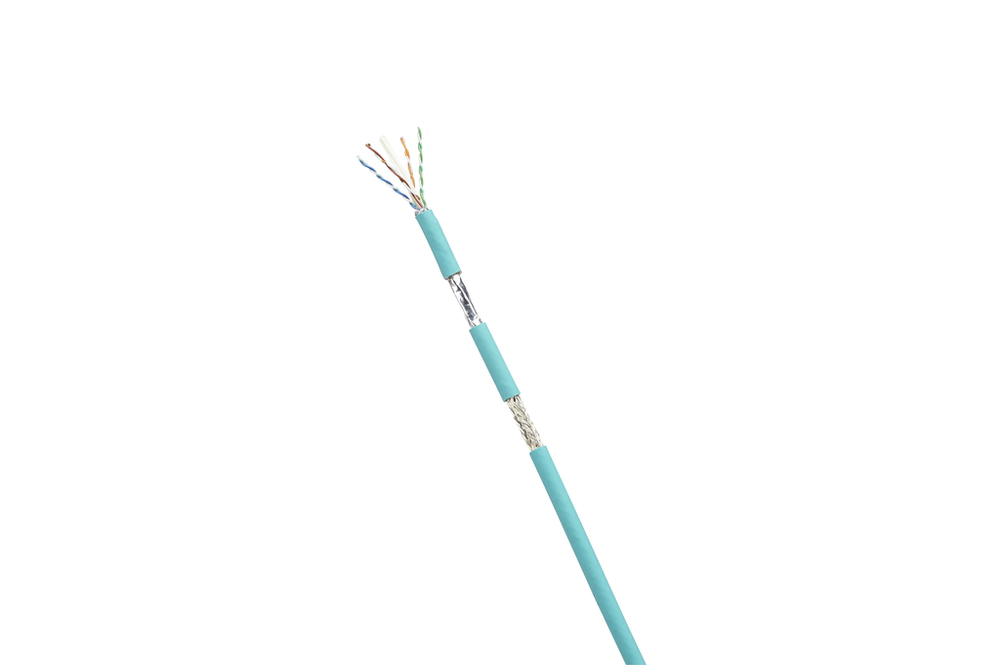

The Cat 6A SF/UTP copper cable is constructed of 24/7AWG stranded copper conductors with HDPE polyethylene insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.Copper Cable, Cat 6A, 4-Pair, 24/7 AWG, SF/UTP, CM
Panduit ISFCH6X04ATL-UG is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- Country of Origin 2Digit
- US
- EAN
- 00613056318694
- GTIN Carton
- 50613056318699
- GTIN Package
- 00613056318694
- Hazardous Material Flag
- N
- Min Order Qty
- 1,000
- Min. Order UOM
- Foot
- Pallet Quantity
- 20,000
- Pallet Volume
- 50.416667
- Pallet Weight
- 1,200.0000
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 50.4167
- Standard Carton Weight Pounds
- 1,200.0000
- Standard Package Volume Ft3
- 2.5208
- Standard Package Weight Pounds
- 60.0000
- Std Carton Height In
- 44
- Std Carton Height MM
- 1117.6
- Std Carton Length In
- 44
- Std Carton Length MM
- 1117.6
- Std Carton Width In
- 44
- Std Carton Width MM
- 1117.6
- Std Ctn Qty
- 20000
- Std Package Height In
- 12
- Std Package Height MM
- 304.8
- Std Package Length In
- 20
- Std Package Length MM
- 508
- Std Package Width In
- 20
- Std Package Width MM
- 508
- Std. Pkg. Qty.
- 1000
- Std. Pkg. UOM
- Foot
- UOM EA PK
- PK
- UPC
- 61305631869
Specifications
- Bend Radius (In.)
- 0.64
- Bend Radius (mm)
- 16.2
- Cable Construction
- SF/UTP
- Color
- Teal
- Conductor Gauge (AWG)
- 24
- Conductor Gauge (mm)
- 0.5
- Conductor Material
- Copper
- Conductor Type
- Stranded (24/7)
- Environment
- Harsh Environment
- Flammability Rating
- CM
- Insulation Diameter (In.)
- 0.04
- Insulation Diameter (mm)
- 1
- Insulation Material
- HDPE
- Jacket Material
- Thermoplastic Elastomer
- Maximum Installation Temperature (°C)
- 80
- Maximum Installation Temperature (°F)
- 176
- Maximum Installation Tension (lb)
- 25
- Maximum Installation Tension (N)
- 110
- Maximum Operating Temperature (°C)
- 80
- Maximum Operating Temperature (°F)
- 176
- Maximum Voltage (V)
- 80
- Minimum Installation Temperature (°C)
- -40
- Minimum Installation Temperature (°F)
- -40
- Minimum Operating Temperature (°C)
- -40
- Minimum Operating Temperature (°F)
- -40
- Nominal Cable Outside Diameter (In.)
- 0.32
- Nominal Cable Outside Diameter (mm)
- 8.1
- Number of Pairs
- 4
- Overall Length (ft.)
- 1
- Overall Length (m)
- 305
- Packaging Type
- Reel
- Performance Level
- Category 6A
- Product Segment
- IAI
- Product Type
- Copper Cable/Industrial
- Resistance Properties
- UV Resistant
- Standards Met
- Exceeds the requirements IEC 61156-6 Category 6A, ANSI/TIA-568-C.2 Category 6A;Standard compliances: UL AWM Style 2463 (80°C 600V)Flex Life Test: 1 million cycles at 10 x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test: 3 million cycles, 270° Oil resistance 6 months @ 20°C; PoE Compliance: Meets IEEE 802.3af and IEEE 802.3at for PoE applications; RoHS Compliant
- Sub Brand
- IndustrialNet™
