Description

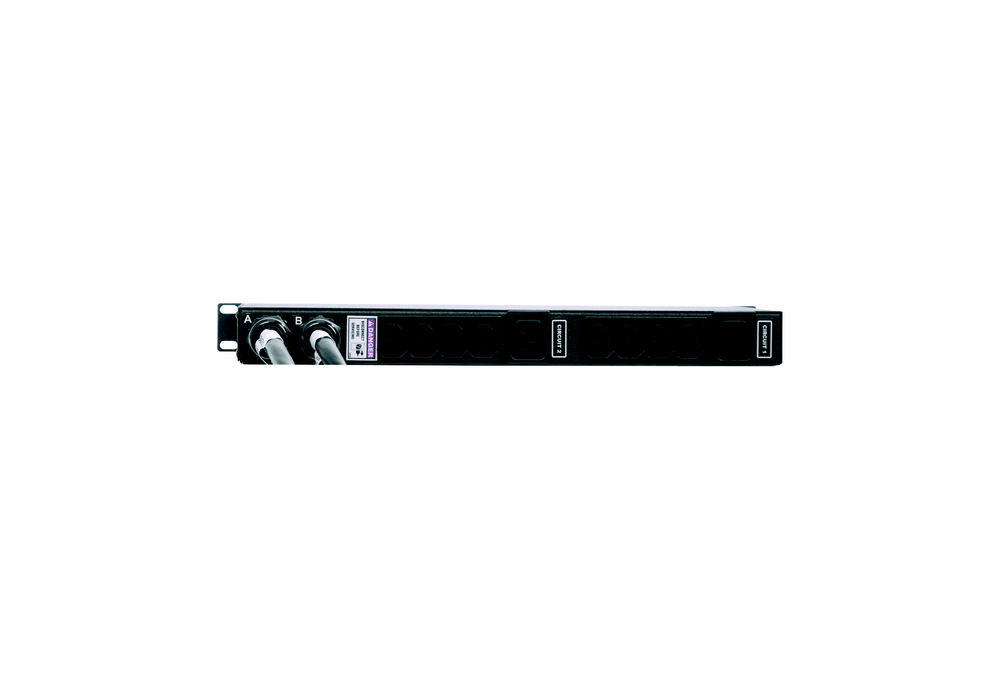

Horizontal auto transfer switch 16 A, 230V, eight C-13 and two C-19 receptacles, two LEDs power-on indicators with red LED current monitor with two IEC 309 2P + E, 16A plugs. Complies with IEC 60950-1, EN 55022, EN 55024 and CE Marked. Power Feeds A and B must be Phase Synchronized. Dimensions: 1.72"H x 17.0"W x 8.5"D (44mm x 431mm x 216mm)Horizontal ATS 16 A, 230V, Eight C-13 and Two C-19 Receptacles
Panduit HA1D2A0CA1081 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Specifications
- Country of Origin 2Digit
- US
- Country of Origin Description
- United States
- Current Rating (Amps)
- 16A
- Gross Volume UOM
- CU
- Hazardous Material Flag
- N
- Input Power Range (kW)
- 1.0-5.0kW
- Input Voltage
- 230V - Single Phase
- kW
- 3.6
- Lowest Level UOM
- EA
- Master Pack Packaging Description
- CTN
- Master Pack Quantity
- 1
- Monitoring
- Local Meter
- Mount Orientation
- Horizontal
- NMFC Rate
- 70
- No. of Rack Spaces
- 1
- Output Voltage
- 230V
- Product Group Assignment
- POUs
- Rack PDU Type
- Auto Transfer Switch Rack PDU
- Receptacle Type
- IEC C-13 and IEC C-19
- Remote Outlet Switching
- No
- Shelf Life
- 0
- Surge Suppression
- No
- Tool-Less Button Spacing (In.)
- null
- Tool-Less Button Spacing (mm)
- null
- Total Number of Outlets
- 10
- Unit Volume
- 1.2
- Unit Weight
- 14.25
- UNSPSC
- 43223301
- UOM EA Pk
- EA
Certifications & Approvals
- ARRA Compliant
- Y
- Buy American Compliant
- Y
- CE Compliant
- Yes
- CE Marking
- Yes
- ECCN Commodity Code
- EAR99
- FIFRA Indicator
- N
- MSDS Indicator
- N
- Ozone Depleting Compounds
- N
- RoHS Compliancy Status
- Compliant
- UL Listed
- No
Packaging Details
- GTIN Package
- 00074983639335
- Minimum Order Quantity
- 1
- Part Number Full UPC
- 7498363933
- Sell Pack Packaging Description
- CTN
- Sell Pkg Qty 1
- 1
- Ship Pack Packaging Description
- CTN
- Stanard Carton Quantity
- 0
- Standard Carton Weight
- 0
- Standard Package Quantity
- 1
- Standard Package Weight
- 14.25
- Std Package Height
- 6.25
- Std Package Height MM
- 158.75
- Std Package Length
- 22.5
- Std Package Length MM
- 571.5
- Std Package Width
- 14.75
- Std Package Width MM
- 374.65
- UNSPSC Package Description
- PACKAGE
- UNSPSC Package UOM
- PK
- UNSPSC Piece Desription
- EACH
- UNSPSC Piece UOM
- EA
Specifications
- Amps
- 16 Amp
- Brand Name
- Panduit
- Color
- Black
- Depth (In.)
- 8.50
- Depth (mm)
- 215.9
- Height (In.)
- 1.72
- Height (mm)
- 43.7
- Order Min Qty Each
- 1
- Order Multiple Quantity Each
- 1
- Plug Type
- (2) IEC 60309 - 6H 2P+E Blue Splashproof
- Sub Brand
- Auto Transfer Switch
- Voltage
- 230V
- Width (In.)
- 17.12
- Width (mm)
- 434.8
