Panduit H100X034H2T-2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

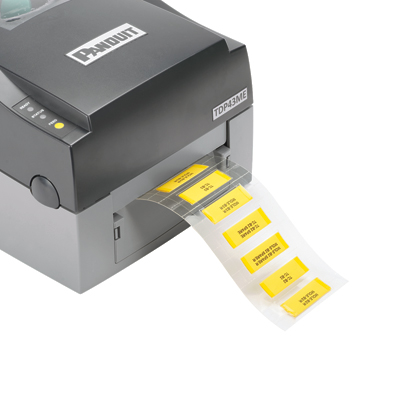

The thermal transfer military grade heat-shrink label in yellow is 2-sided with a 3/16" (4.76mm) diameter and made of 3:1 flattened polyolefin. It is 1" (25.4mm) wide and .34" (8.6mm) high. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. The sleeve has 2 label(s) per row and 1000 labels per roll. Heat-shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable.H100X034H2T-2 Heat Shrink Label
Panduit H100X034H2T-2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- US
- EAN
- 00074983088539
- GTIN Package
- 00074983088539
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1
- Min. Order UOM
- Roll
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 0.1204
- Standard Package Weight Pounds
- 1.3500
- Std Package Height In
- 6.5
- Std Package Height MM
- 165.1
- Std Package Length In
- 6.4
- Std Package Length MM
- 162.56
- Std Package Width In
- 5
- Std Package Width MM
- 127
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Roll
- UOM EA PK
- EA
- UPC
- 07498308853
Specifications
- Color
- Yellow
- Compatible Wire Gauge (AWG)
- 18-12
- Diameter (In.)
- 0.19
- Diameter (mm)
- 4.8
- Flammability Rating
- VW-1
- Label Application
- Cable & Wire Marking
- Label Property
- Flammability, Fluid Resistance, Harsh Environments, Military Grade
- Material
- Polyolefin
- Maximum Cable Diameter (In.)
- 0.19
- Maximum Cable Diameter (mm)
- 4.8
- Maximum Operating Temperature (°C)
- 135
- Maximum Operating Temperature (°F)
- 275
- Minimum Cable Diameter (In.)
- 0.06
- Minimum Cable Diameter (mm)
- 1.5
- Minimum Operating Temperature (°C)
- -55
- Minimum Operating Temperature (°F)
- -67
- Note
- For use with TDP printers
- Number of Labels
- 1
- Number of Labels per Row
- 2
- Number of Sides
- 2
- Overall Height (In.)
- 0.34
- Overall Height (mm)
- 8.6
- Overall Width (In.)
- 1
- Overall Width (mm)
- 25.4
- Printer Type
- Thermal Transfer
- Product Segment
- IEI
- Product Type
- Heat Shrink Label
- Resistance Properties
- Military Grade
- Standards Met
- (1) Material is RoHS compliant (European Union directive 2002/95/EC).(2) AMS-DTL-23053/5C (Class 1 and Class 3) and UL standard 224 with a VW-1 rating. (3) When printed using RMH4BL,RMEH4BL, RHH4BL-S, RMR4BL, RMER4BL, RMR4WH, RHR4BL-S, or RMR2BL thermal transfer ribbons it will also meet SAE-AS5942, MILSTD-883F Method 2015.13, and MIL-STD-202G Method 215K.(4) RoHS Compliant
