Description

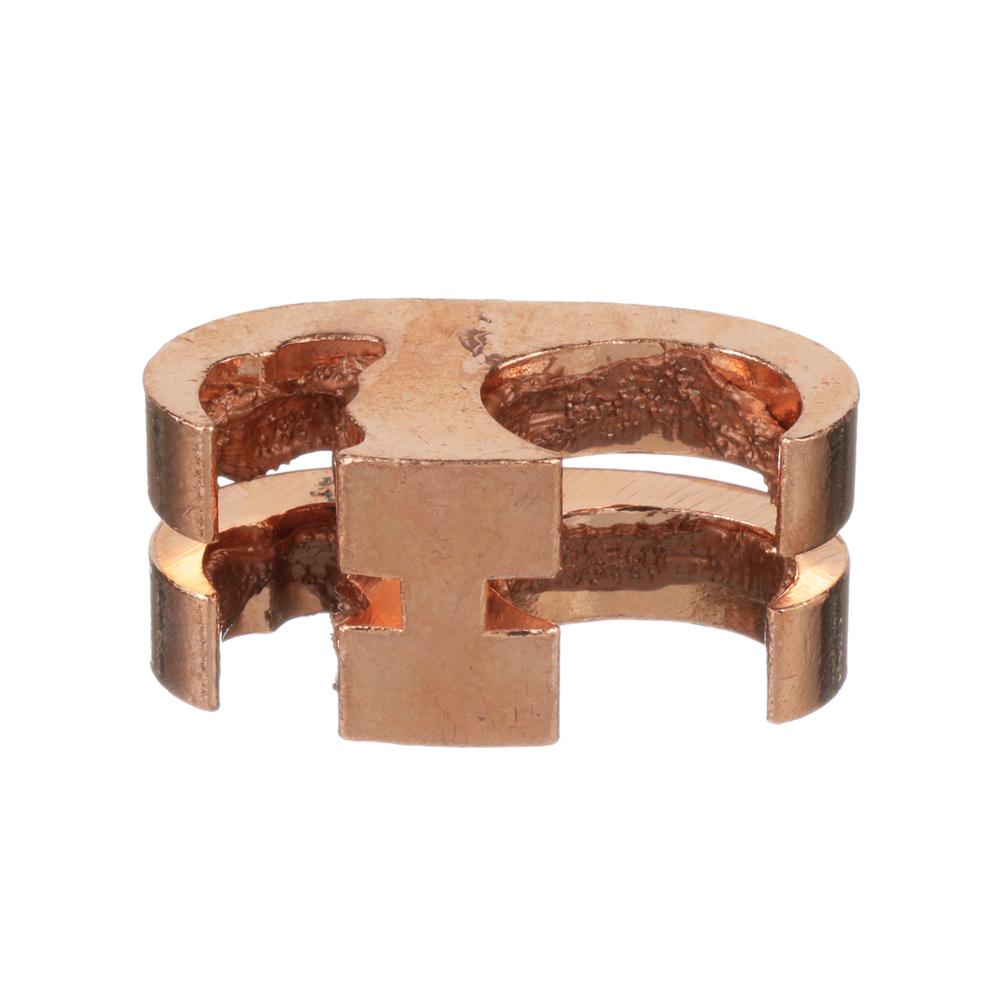

The GCE250-1/0-Q E Style Ground Connector is designed to enhance the crimp process using technology that meets IEEE STD 837-2002 and REV 2014. Has a wide-range taking ability; multi-conductor design provides flexibility with minimum number of parts. Slotted design allows quick, easy assembly while the pre applied conductive antioxidant compound ensures a high quality mechanical and electrical bond. UL467 & CSA certified for grounding, bonding and suitable for direct burial in earth or concrete.Panduit GCE250-1/0-Q E Style Grounding Connector
Panduit GCE250-1/0-Q is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- California Pro65 Cancer
- Y
- Country of Origin 2Digit
- MX
- EAN
- 00613056854512
- GTIN Package
- 00613056854512
- Hazardous Material Flag
- N
- Mercury Content Indicator
- N
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- Pallet Quantity
- 2,250
- Pallet Weight
- 787.5000
- REACH Status
- N
- Restricted Use of Hazardous Substances
- N
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 0.0917
- Standard Package Weight Pounds
- 8.7500
- Std Package Height In
- 3.62
- Std Package Height MM
- 91.948
- Std Package Length In
- 7
- Std Package Length MM
- 177.8
- Std Package Width In
- 6.25
- Std Package Width MM
- 158.75
- Std. Pkg. Qty.
- 25
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 61305685451
Specifications
- Application
- Utility/Ground Grid
- Color Code
- Black
- Connector Type
- E-Style Connector
- Material
- High Conductivity Copper
- Maximum Copper Conductor Size (AWG SOL)
- 6
- Maximum Copper Conductor Size (AWG STR)
- 4/0
- Maximum Copper Conductor Size (kcmil)
- 250
- Maximum Ground Rod Size (In.)
- 5/8
- Maximum Ground Rod Size (mm)
- 15.9
- Maximum Rebar Size (AWG)
- 4
- Maximum Rebar Size (In.)
- 1/2
- Maximum Rebar Size (mm)
- 12.7
- Minimum Copper Conductor Size (AWG SOL)
- 6
- Minimum Copper Conductor Size (AWG STR)
- 6
- Minimum Copper Conductor Size (kcmil)
- 250
- Minimum Ground Rod Size (In.)
- 1/2
- Minimum Ground Rod Size (mm)
- 12.7
- Minimum Rebar Size (AWG)
- 3
- Minimum Rebar Size (In.)
- 3/8
- Minimum Rebar Size (mm)
- 9.5
- Overall Height (In.)
- 2.18
- Overall Height (mm)
- 55.4
- Overall Length (In.)
- 1
- Overall Length (mm)
- 25.4
- Overall Width (In.)
- 1.05
- Overall Width (mm)
- 26.7
- Panduit Die Index Number
- PG25
- Product Segment
- IEI
- Product Type
- E-Tap Grounding Connectors
- Standards Met
- IEEE Std 837-2002 and REV 2014, CSA 22.2, cULus listed to UL467 for direct burial grounding applications
- Sub Brand
- StructuredGround™
