Panduit FSD77-8-3K2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

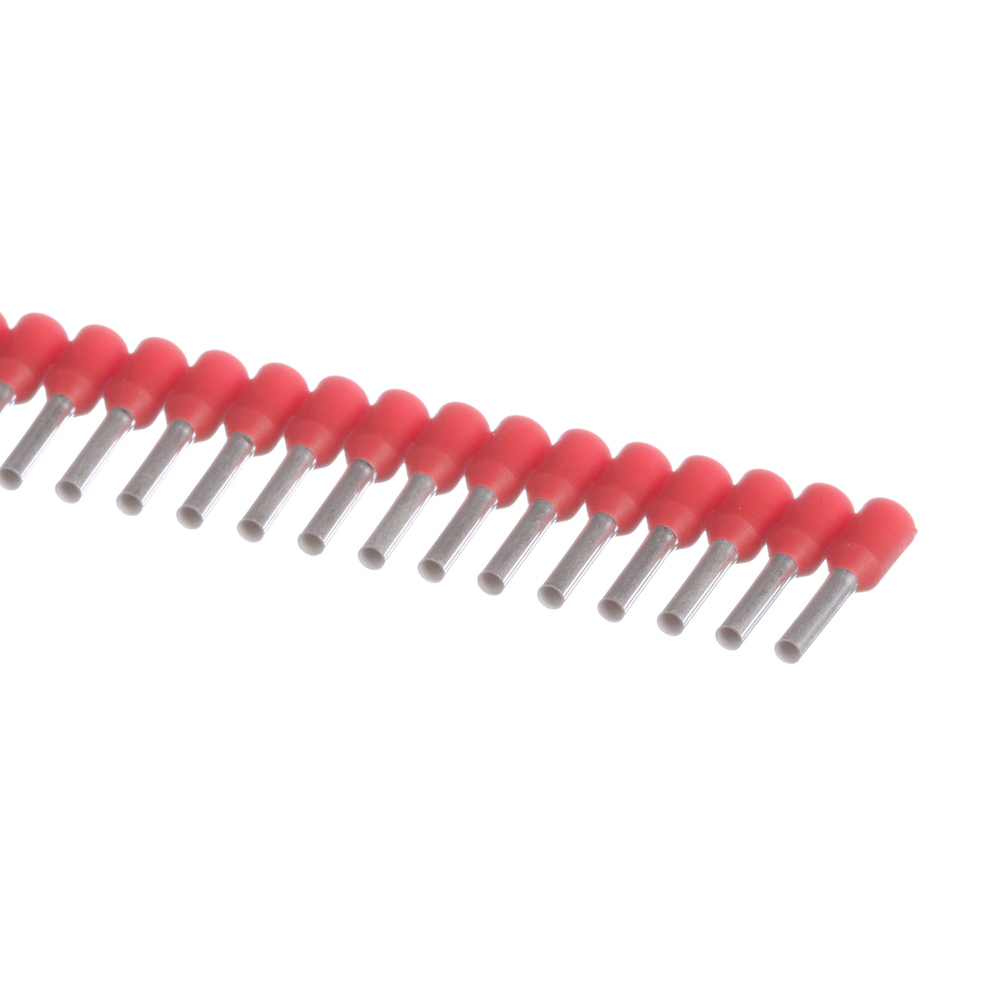

Panduit FSD77-8-3K2 Covered Single Wire FerruleReel Smart™ FSD77-8-3K2 Single wire ferrule, Red, 8mm Pin L, PK3000
Panduit FSD77-8-3K2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- DE
- EAN
- 00074983909841
- GTIN Package
- 00074983909841
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 3,000
- Min. Order UOM
- Piece
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 0.0579
- Standard Package Weight Pounds
- 0.9750
- Std Package Height In
- 1.2
- Std Package Height MM
- 30.48
- Std Package Length In
- 10
- Std Package Length MM
- 254
- Std Package Width In
- 10
- Std Package Width MM
- 254
- Std. Pkg. Qty.
- 3000
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 07498390984
Specifications
- Base Material
- Copper
- Color Code
- Red
- Cover Material
- Polypropylene
- CSA Temperature Rating (°C)
- 105
- Ferrule Type
- Single Wire Standard
- Finish/Coating
- Tin-Plated
- Flammability Rating
- UL94-HB
- For Use With
- CP-881, APM-MRSP1516JVD
- Inside Diameter (In.)
- 0.06
- Inside Diameter (mm)
- 1.5
- Maximum Metric Conductor Size (mm²)
- 1
- Maximum Operating Temperature (°C)
- 105
- Maximum Operating Temperature (°F)
- 221
- Maximum Wire Insulation Diameter (In.)
- 0.11
- Maximum Wire Insulation Diameter (mm)
- 2.8
- Minimum Metric Conductor Size (mm²)
- 1
- Minimum Operating Temperature (°C)
- -54
- Minimum Operating Temperature (°F)
- -60
- Outer Diameter (In.)
- 0.07
- Outer Diameter (mm)
- 1.8
- Overall Length (In.)
- 0.57
- Overall Length (mm)
- 14.5
- Packaging Type
- Ferrules on a Reel
- Pin Length (In.)
- 0.31
- Pin Length (mm)
- 8
- Product Segment
- IEI
- Product Type
- Covered Single Wire Ferrule on Reel
- Standards Met
- DIN 46228, CSA C22.2 No. 291-14, UL 486F
- Sub Brand
- Reel Smart™
- Wire Strip Length (In.)
- 13/32
- Wire Strip Length (mm)
- 10
