Panduit FSD75-8-K
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

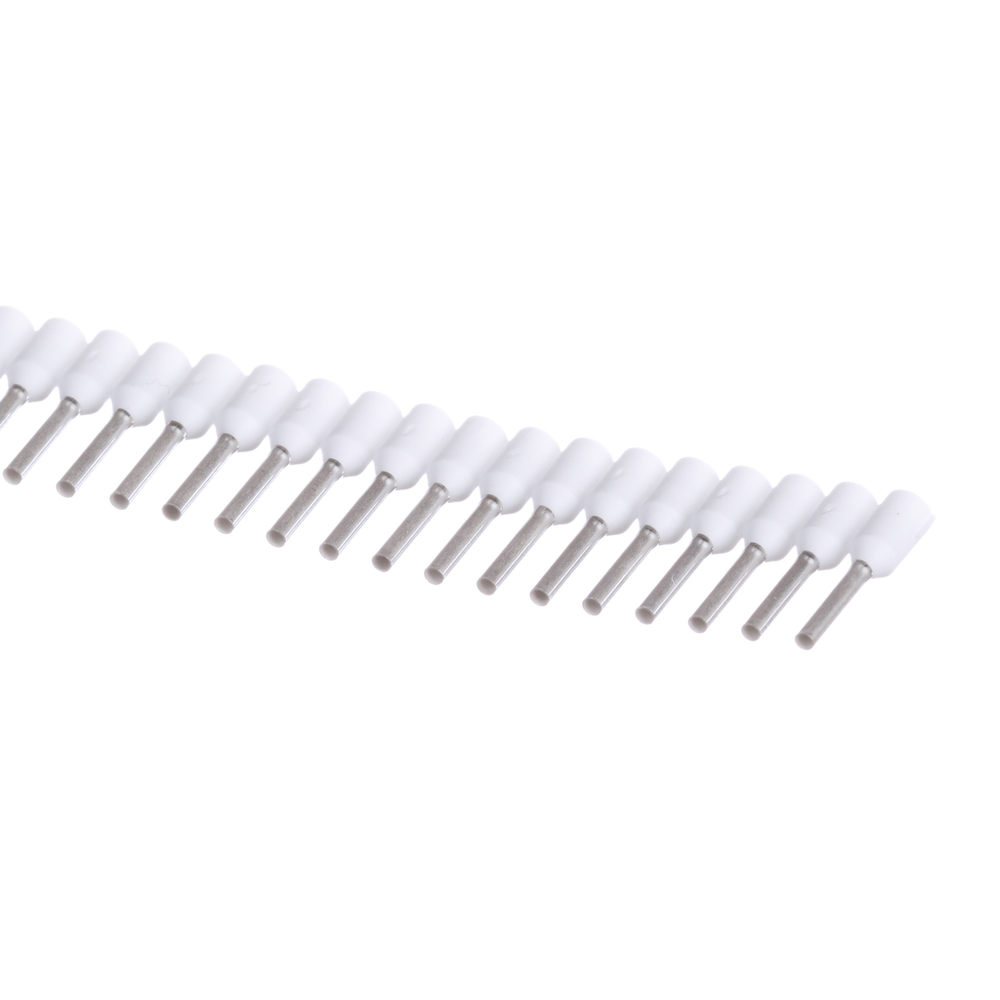

Insulated ferrules, single wire white DIN end sleeve on mini-reel, 22 - 20 AWG (0.50mm²), 0.31 (8.0mm) pin length.Pan-Term® FSD75-8-K Covered single wire ferrule on reel
Panduit FSD75-8-K is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- DE
- EAN
- 00074983333387
- GTIN Package
- 00074983333387
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1,000
- Min. Order UOM
- Piece
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 0.0164
- Standard Package Weight Pounds
- 0.2700
- Std Package Height In
- .75
- Std Package Height MM
- 19.05
- Std Package Length In
- 6
- Std Package Length MM
- 152.4
- Std Package Width In
- 5.9
- Std Package Width MM
- 149.86
- Std. Pkg. Qty.
- 1000
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 07498333338
Specifications
- Base Material
- Copper
- Color Code
- White
- Copper Conductor Size (AWG)
- #20
- Cover Material
- Polypropylene
- CSA Temperature Rating (°C)
- 105
- Ferrule Type
- Single Wire Standard
- Finish/Coating
- Tin-Plated
- Flammability Rating
- UL94-HB
- For Use With
- CP-881, APM-MRSP1516JMD
- Inside Diameter (In.)
- 0.04
- Inside Diameter (mm)
- 1.1
- Maximum Copper Conductor Size (AWG)
- #20
- Maximum Metric Conductor Size (mm²)
- 0.5
- Maximum Operating Temperature (°C)
- 105
- Maximum Operating Temperature (°F)
- 221
- Maximum Wire Insulation Diameter (In.)
- 0.1
- Maximum Wire Insulation Diameter (mm)
- 2.6
- Minimum Copper Conductor Size (AWG)
- #20
- Outer Diameter (In.)
- 0.06
- Outer Diameter (mm)
- 1.4
- Overall Length (In.)
- 0.57
- Overall Length (mm)
- 14.5
- Packaging Type
- Ferrules on a Reel
- Pin Length (In.)
- 0.31
- Pin Length (mm)
- 8
- Product Segment
- IEI
- Product Type
- Covered Single Wire Ferrule on Reel
- Standards Met
- DIN 46228 Part 4, CSA C22.2 No. 291-14, cULus E472545
- Sub Brand
- Pan-Term®
- Wire Strip Length (In.)
- 0.39
- Wire Strip Length (mm)
- 10
