Panduit FR12TB2412
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

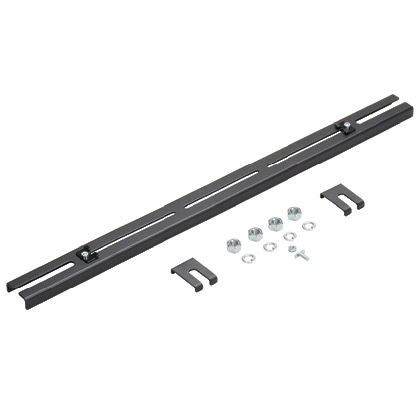

Used to support the 12x4 system by spanning two threaded rod drops that are 24in apart. Ideal for supporting trapeze bracket from 24in wide ladder rack or 24in wide cable tray. Can be installed from above or below. Bracket is secured to each threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps, For 1/2in threaded rod.FIBERRUNNER® TRAPEZE, FOR 12X4 SYSTEM, FOR 1/2" THREADED ROD, BLACK
Panduit FR12TB2412 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- California Pro65 Cancer
- No
- Country of Origin 2Digit
- US
- EAN
- 00074983116997
- GTIN Package
- 00074983116997
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- Pallet Quantity
- 288
- Pallet Weight
- 1,296.0000
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 0.0833
- Standard Package Weight Pounds
- 4.5000
- Std Package Height In
- 1.5
- Std Package Height MM
- 38.1
- Std Package Length In
- 32
- Std Package Length MM
- 812.8
- Std Package Width In
- 3
- Std Package Width MM
- 76.2
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 07498311699
Specifications
- Angle
- 90°
- Application
- (1) Used to Support the 12X4 System by Spanning Two Threaded Rod Drops that are 24 inch Apart, (2) Bracket is Secured to Each Threaded Rod With Two Nuts, (3) The Pre-Assembled Slide Clamps Enable Fast Assembly to Channel.
- Color
- Black
- Compatible Threaded Rod Size (In.)
- 0.5
- Compatible Threaded Rod Size (mm)
- 12.7
- For Use With
- Trapeze Bracket
- Includes
- (1) Bracket Assembly, (2) 1/2 Clamp Plates, (4) 1/2 Helical Spring Lockwashers, (4) 1/2-13 Heavy Hex Nuts, (1) 1/4-20 T-Bolt, (1) 1/4 -20 Hex KEPS Nut
- Material
- Steel
- Number of Pieces
- 13
- Overall Height (In.)
- 0.86
- Overall Height (mm)
- 21.8
- Overall Length (In.)
- 32
- Overall Length (mm)
- 812.8
- Overall Width (In.)
- 2.19
- Overall Width (mm)
- 55.6
- Product Segment
- EDI-DC
- Product Type
- Trapeze
- Series Type
- 12 x 4 FiberRunner Brackets
- Sub Brand
- FiberRunner®
- System Dimensions
- 12x4
