Panduit FR12CS12M
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

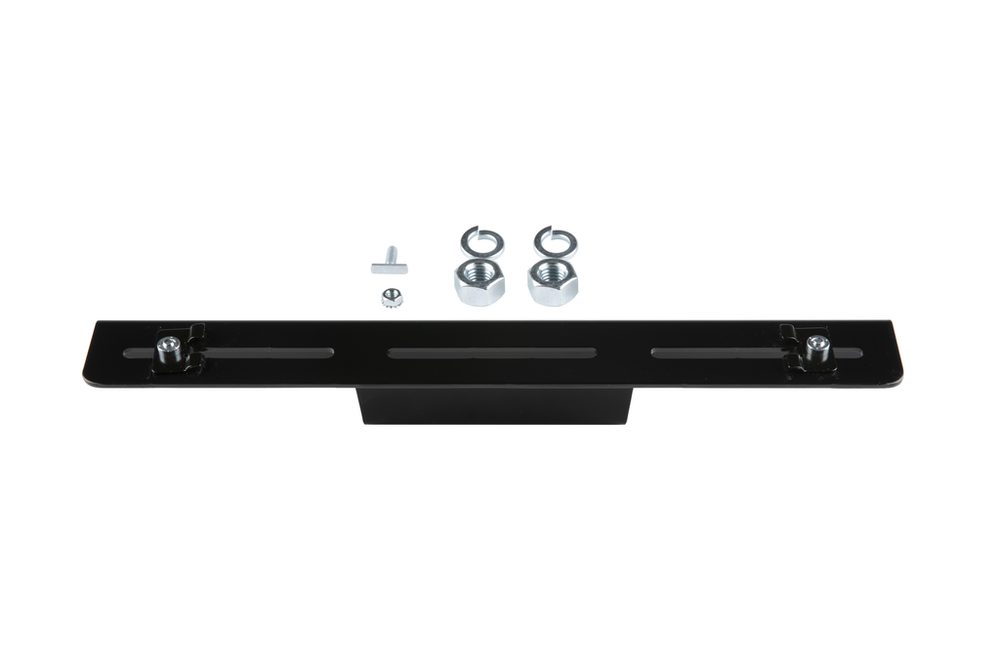

Used to support the 12x4 system from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps. Also can be secured directly to the top of cabinets, For 12mm threaded rod.FIBERRUNNER® CENTER SUPPORT, FOR 12X4 SYSTEM, BLACK
Panduit FR12CS12M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- California Pro65 Cancer
- No
- Country of Origin 2Digit
- US
- EAN
- 00074983835911
- GTIN Package
- 00074983835911
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- Pallet Quantity
- 80
- Pallet Weight
- 216.0000
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 0.1454
- Standard Package Weight Pounds
- 2.7000
- Std Package Height In
- 4
- Std Package Height MM
- 101.6
- Std Package Length In
- 20.5
- Std Package Length MM
- 520.7
- Std Package Width In
- 5.5
- Std Package Width MM
- 139.7
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 07498383591
Specifications
- Angle
- 90°
- Application
- (1) The Fiberrunner 12X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling, (2) It is Suited for Data Center Applicationswhere Cable is Routed from Distr
- Color
- Black
- Compatible Threaded Rod Size (In.)
- 0.47
- Compatible Threaded Rod Size (mm)
- 12
- For Use With
- Fast Assembly to Channel
- Includes
- (1) Bracket, (1) T-Fastener, (1) 1/4-20 "KEPS" Locknut, (2) Bracket Clip Assemblies, (2)1/4-20 Hex Head Machine Screws, (2) 1/2 Helical Spring Lockwashers, (2) M12X1.75 Hex Nuts
- Material
- Steel
- Number of Pieces
- 13
- Overall Height (In.)
- 3
- Overall Height (mm)
- 76.2
- Overall Length (In.)
- 4
- Overall Length (mm)
- 101.6
- Overall Width (In.)
- 15.7
- Overall Width (mm)
- 398.8
- Product Segment
- EDI-DC
- Product Type
- Center Support
- Series Type
- 12 x 4 FiberRunner Brackets
- Standards Met
- Ul Listed to 2024 Optical Fiber Cable Routing Assemblies UL Recognized (File No. E147128) Slotted Wall Csa Certified (File No. 016446 0 000) Slotted Wall
- Sub Brand
- FiberRunner®
- System Dimensions
- 12x4
