Description

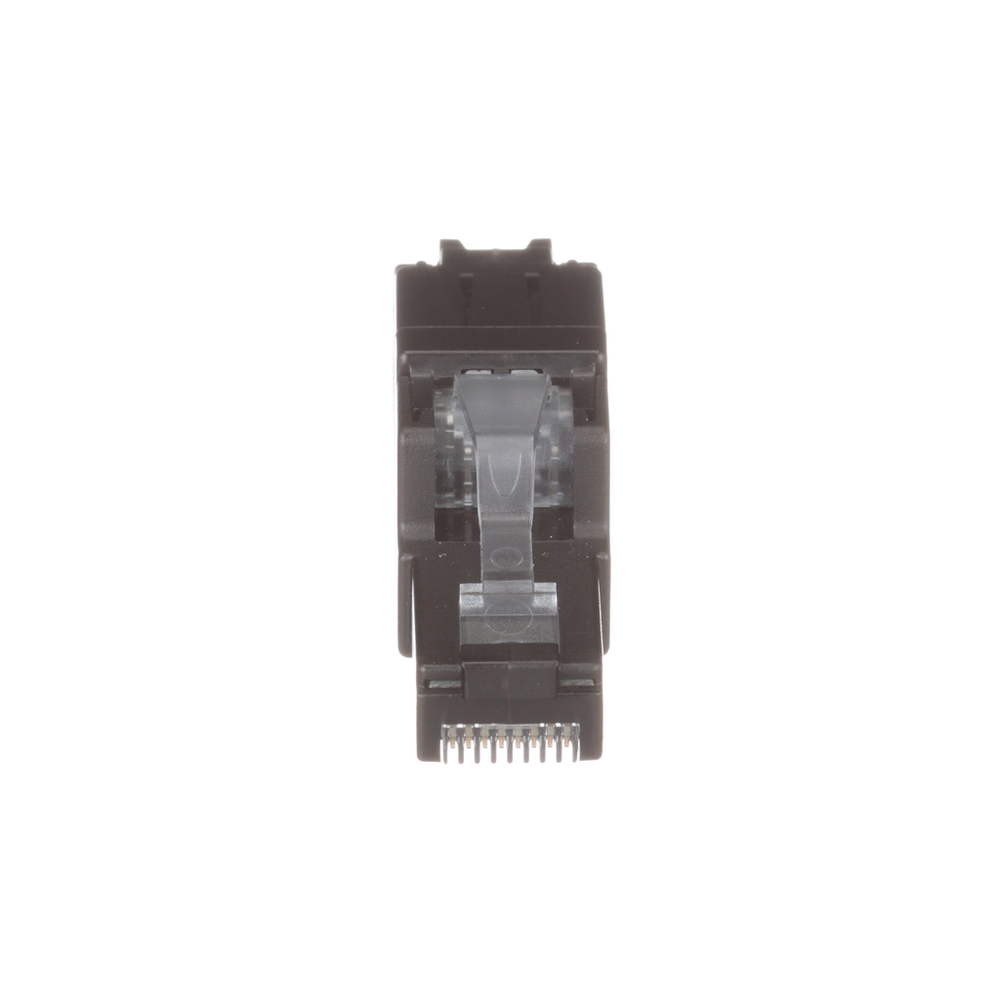

The TX6A™ Category 6A UTP Field Term Plug terminates 4-pair, 22-26 AWG, 100 ohm, UTP twisted pair cable and is backwards compatible with Cat 6 and 5e. The plug utilizes TG style technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. This plug simplifies installation of common devices such as cameras and wireless access points. The field term plug is black and includes 10 per package.TX6A™ RJ45, Cat 6A UTP Field Term Plug, 22-26 AWG, Black
Panduit FP6X88MTG-X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- CR
- EAN
- 00613056308510
- GTIN Carton
- 50613056308515
- GTIN Package
- 00613056308510
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 10
- Min. Order UOM
- Piece
- Pallet Quantity
- 13,000
- Pallet Volume
- 20.875561
- Pallet Weight
- 277.0300
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.1606
- Standard Carton Weight Pounds
- 2.1310
- Standard Package Volume Ft3
- 0.0161
- Standard Package Weight Pounds
- 0.2131
- Std Carton Height In
- 3.55
- Std Carton Height MM
- 90.17
- Std Carton Length In
- 10.55
- Std Carton Length MM
- 267.97
- Std Carton Width In
- 7.3
- Std Carton Width MM
- 185.42
- Std Ctn Qty
- 100
- Std Package Height In
- 1.95
- Std Package Height MM
- 49.53
- Std Package Length In
- 6.15
- Std Package Length MM
- 156.21
- Std Package Width In
- 3.9
- Std Package Width MM
- 99.06
- Std. Pkg. Qty.
- 10
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 61305630851
Specifications
- Body Material
- Polycarbonate
- Color
- Black
- Compatible Wire Gauge (AWG)
- 22-26
- Connector Type
- Field Terminable Plug
- Contact Material
- Gold Plated Phosphor Bronze
- Flammability Rating
- UL94V-0
- IP Rating
- IP20
- Maximum Operating Temperature (°C)
- 75
- Maximum Operating Temperature (°F)
- 167
- Minimum Operating Temperature (°C)
- -40
- Minimum Operating Temperature (°F)
- -40
- Number of Plugs
- 10
- Overall Height (In.)
- 0.62
- Overall Height (mm)
- 15.8
- Overall Length (In.)
- 1.82
- Overall Length (mm)
- 46.2
- Overall Width (In.)
- 0.53
- Overall Width (mm)
- 13.5
- Performance Level
- Category 6A
- Product Segment
- EDI-ENT
- Product Type
- UTP Field Term Plug
- Shield Type
- Unshielded (UTP)
- Standards Met
- Exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA Channel performance requirements with up to two field term plugs in channel. Meets or exceeds proposed TIA Modular Plug Terminated Link requirements with up to two field term plugs in link, Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, IEC 60529 (IP 20), Supports IEEE 802.3af / 802.3at (PoE/PoE+) and proposed 802.3bt type 3 and type 4 (PoE++) applications. Supports Power over HDBaseT up to 100 watts, RoHS compliant
- Sub Brand
- Pan-Net®
- Wiring Scheme
- T568A/T568B
