Panduit FLCSMC6BLY
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

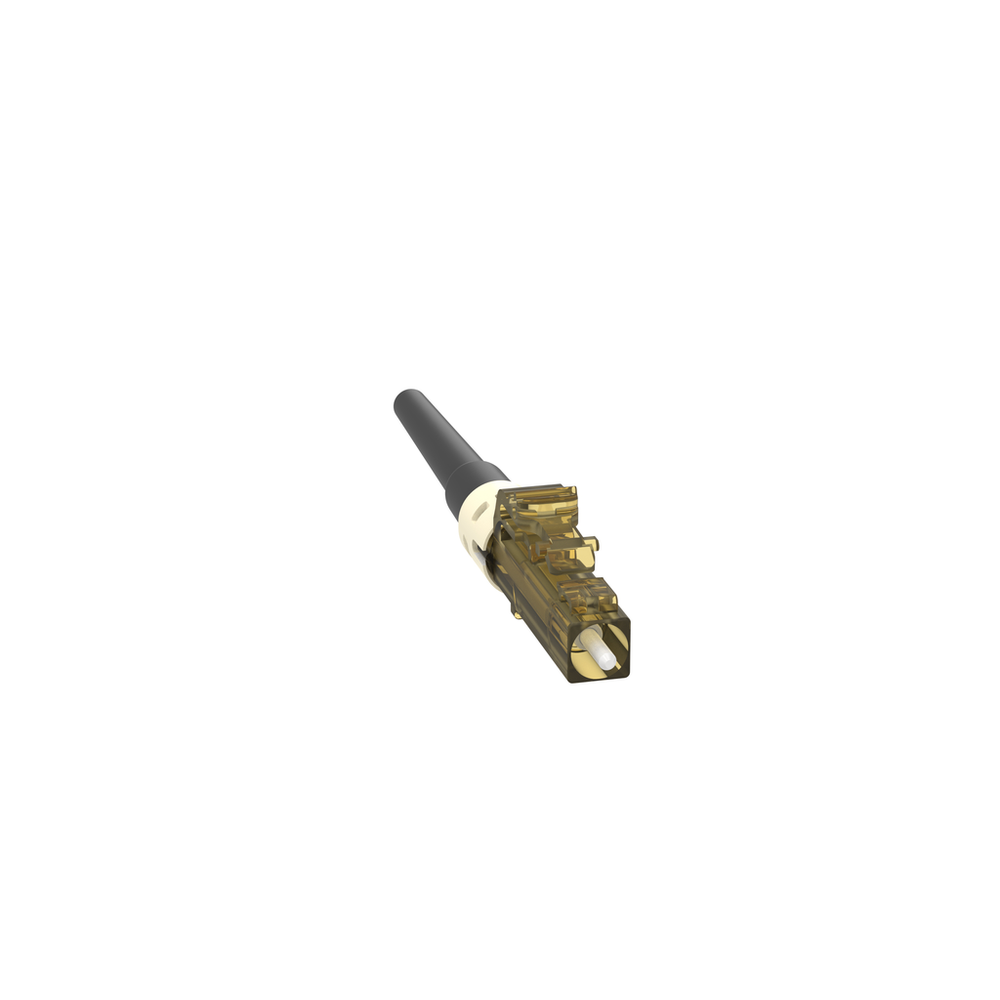

The OptiCam® LC Fiber Optic Connector is a multimode 62.5/125μm OM1 simplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The LC connector has a natural-colored body with an electric ivory-colored backbone and black 900μm boot.OptiCam® LC Simplex, 62.5µm OM1, with Black Boot
Panduit FLCSMC6BLY is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- CR
- EAN
- 00074983047475
- GTIN Carton
- 50074983047470
- GTIN Package
- 00074983047475
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 10
- Min. Order UOM
- Piece
- Pallet Quantity
- 27,300
- Pallet Volume
- 88.472222
- Pallet Weight
- 327.6000
- REACH Status
- False
- RoHS Compliant
- RoHS directive is not applicable
- Standard Carton Volume Ft3
- 0.0324
- Standard Carton Weight Pounds
- 0.1200
- Standard Package Volume Ft3
- 0.0032
- Standard Package Weight Pounds
- 0.0120
- Std Carton Height In
- 2.3
- Std Carton Height MM
- 58.42
- Std Carton Length In
- 4.1
- Std Carton Length MM
- 104.14
- Std Carton Width In
- 3.2
- Std Carton Width MM
- 81.28
- Std Ctn Qty
- 10
- Std Package Height In
- 1
- Std Package Height MM
- 25.4
- Std Package Length In
- 3.5
- Std Package Length MM
- 88.9
- Std Package Width In
- 5
- Std Package Width MM
- 127
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 07498304747
Specifications
- Application
- Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect.
- Backbone Color
- Electric Ivory
- Body Style
- Simplex
- Boot Color
- Black
- Color
- Black
- Connection Type
- LC
- Fiber Diameter (µm)
- 62.5
- Fiber Type
- OM1
- Maximum Connector Insertion Loss (dB)
- 0.3
- Maximum Installation Temperature (°C)
- 42
- Maximum Installation Temperature (°F)
- 108
- Maximum Operating Temperature (°C)
- 60
- Maximum Operating Temperature (°F)
- 140
- Minimum Connector Return Loss (dB)
- 20
- Minimum Installation Temperature (°C)
- 38
- Minimum Installation Temperature (°F)
- 100
- Minimum Operating Temperature (°C)
- 0
- Minimum Operating Temperature (°F)
- 32
- Outer Diameter (In.)
- 0.035
- Outer Diameter (mm)
- 0.9
- Polish Type
- Pre-Polished
- Product Segment
- EDI-ENT
- Product Type
- Fiber Optic Connectors, LC OptiCam
- Standards Met
- Exceed TIA/EIA-568-B.3 requirements
- Sub Brand
- OptiCam®
