Description

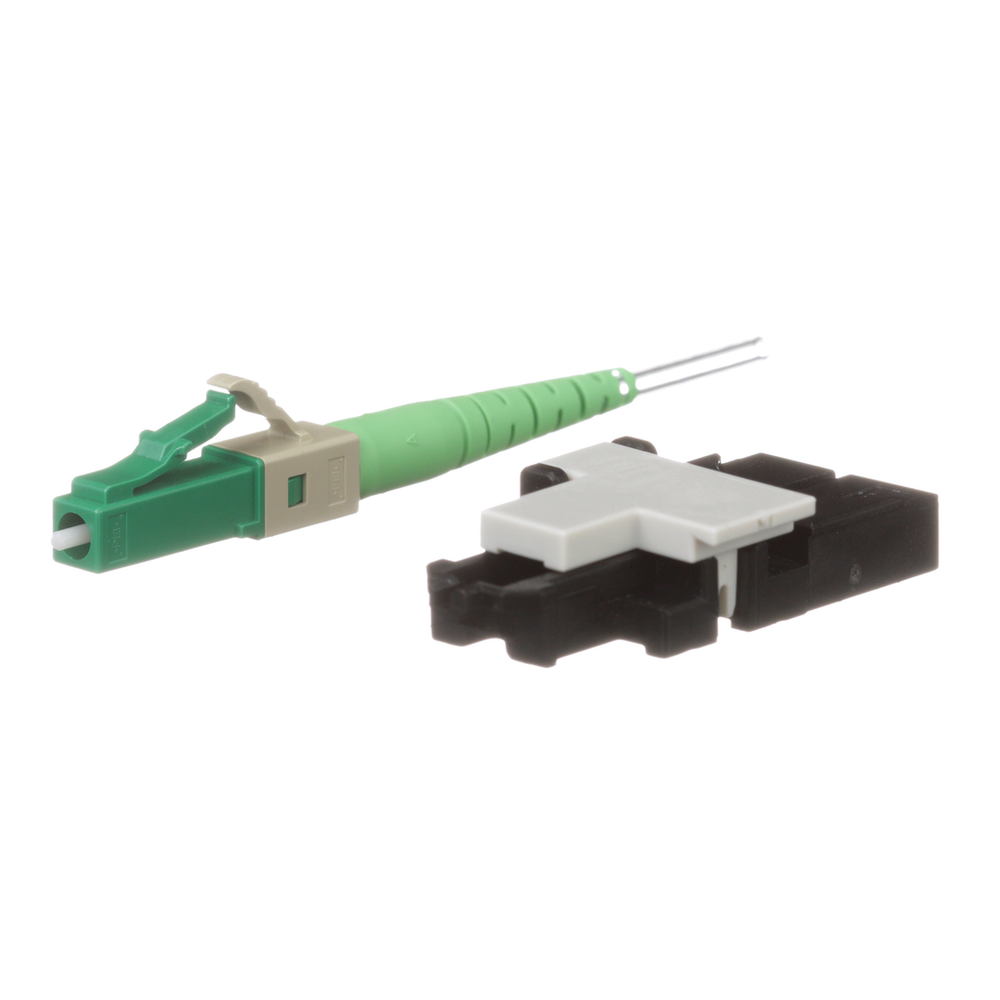

The Fusion Splice LC-APC Fiber Optic Connector is a singlemode 9/125μm OS1/OS2 simplex fiber connector, intended for 900μm tight-buffered or 250μm loose-tube fiber installation. Field termination can be done in about two minutes on several common splice machine brands. The connector consists of a ferrule assembly with a bare fiber stub, a front housing, a rear housing with integral boot, and a splice protection sleeve.Fusion Splice LC-APC Simplex 9µm OS1/2 Connector
Panduit FLCS2/9SOCA9AG is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- Country of Origin 2Digit
- JP
- EAN
- 00613056574007
- GTIN Carton
- 50613056574002
- GTIN Package
- 00613056574007
- Hazardous Material Flag
- N
- Min Order Qty
- 10
- Min. Order UOM
- Piece
- Pallet Quantity
- 17,600
- Pallet Volume
- 48.005630
- Pallet Weight
- 352.0000
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.2728
- Standard Carton Weight Pounds
- 2.0000
- Standard Package Volume Ft3
- 0.0273
- Standard Package Weight Pounds
- 0.2000
- Std Carton Height In
- 4.4
- Std Carton Height MM
- 111.76
- Std Carton Length In
- 10.4
- Std Carton Length MM
- 264.16
- Std Carton Width In
- 10.3
- Std Carton Width MM
- 261.62
- Std Ctn Qty
- 100
- Std Package Height In
- 1.5
- Std Package Height MM
- 38.1
- Std Package Length In
- 12
- Std Package Length MM
- 304.8
- Std Package Width In
- 6
- Std Package Width MM
- 152.4
- Std. Pkg. Qty.
- 10
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 61305657400
Specifications
- Application
- Used for initial installation of fiber links, MAC work, or repairs to existing links to minimize downtime.
- Backbone Color
- Green
- Body Style
- Simplex
- Boot Color
- Green
- Color
- Green
- Connection Type
- Fusion Splice LC
- Fiber Diameter (µm)
- 9
- Fiber Type
- OS1/OS2
- Maximum Connector Insertion Loss (dB)
- 0.3
- Maximum Installation Temperature (°C)
- 42
- Maximum Installation Temperature (°F)
- 108
- Maximum Operating Temperature (°C)
- 75
- Maximum Operating Temperature (°F)
- 167
- Minimum Connector Return Loss (dB)
- 65
- Minimum Installation Temperature (°C)
- 38
- Minimum Installation Temperature (°F)
- 100
- Minimum Operating Temperature (°C)
- -40
- Minimum Operating Temperature (°F)
- -40
- Outer Diameter (In.)
- 0.035
- Outer Diameter (mm)
- 0.9
- Polish Type
- Pre-Polished
- Product Segment
- EDI-DC
- Product Type
- Fiber Optic Connectors, Fusion Splice
- Standards Met
- RoHS compliant. Exceed TIA/EIA-568-B.3 requirements. TIA/EIA-604 FOCIS-10
