Description

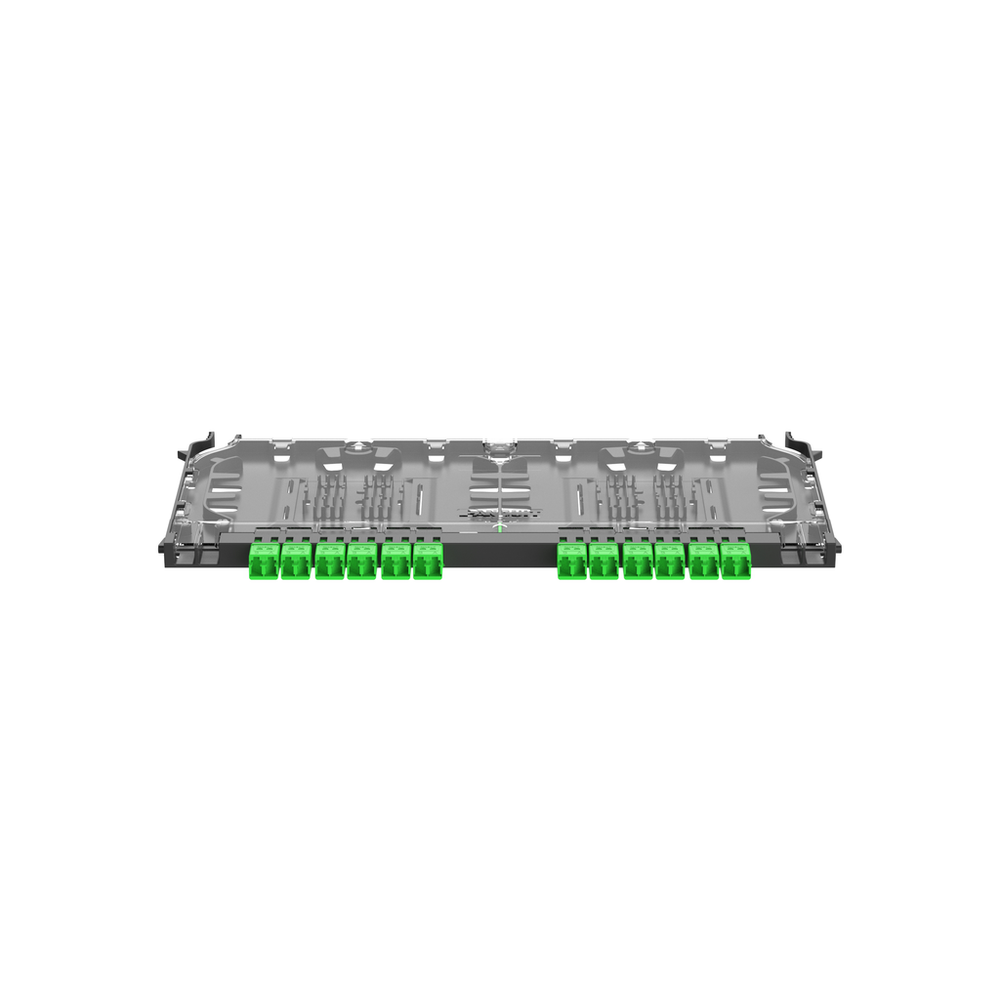

FlexCore Front Access ODF Fiber Optic Splice Cassette, Singlemode (OS2) 24-fiber LC Duplex to Ribbon Pigtails, Standard IL24F ODF Splice Cass, OS2, LC APC, Discrete, Std IL
Panduit FDS9N-24-LAP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- California Pro65 Cancer
- N
- Country of Origin 2Digit
- CR
- EAN
- 00613056833012
- GTIN Carton
- 50613056833017
- GTIN Package
- 00613056833012
- Hazardous Material Flag
- N
- Mercury Content Indicator
- N
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- Pallet Quantity
- 360
- Pallet Volume
- 47.744271
- Pallet Weight
- 291.6000
- REACH Status
- N
- Restricted Use of Hazardous Substances
- N
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 1.3262
- Standard Carton Weight Pounds
- 8.1000
- Standard Package Volume Ft3
- 0.1326
- Standard Package Weight Pounds
- 0.8100
- Std Carton Height In
- 10.9
- Std Carton Height MM
- 276.86
- Std Carton Length In
- 14.4
- Std Carton Length MM
- 365.76
- Std Carton Width In
- 14.4
- Std Carton Width MM
- 365.76
- Std Ctn Qty
- 10
- Std Package Height In
- 1.3
- Std Package Height MM
- 33.02
- Std Package Length In
- 9.9
- Std Package Length MM
- 251.46
- Std Package Width In
- 13
- Std Package Width MM
- 330.2
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 61305683301
Specifications
- Adapter Color
- Green
- Application
- FlexCore ODF/OSF
- Color
- Black
- Connection Type
- LC
- Connector 1 Type
- LC Duplex
- Fiber Diameter (µm)
- 9
- Maximum Connector Insertion Loss (dB)
- 0.35
- Minimum Connector Return Loss (dB)
- 65
- Number of Fibers
- 24
- Overall Depth (In.)
- 6.75
- Overall Depth (mm)
- 171.5
- Overall Height (In.)
- 0.46
- Overall Height (mm)
- 11.7
- Overall Width (In.)
- 11.53
- Overall Width (mm)
- 292.8
- Product Segment
- EDI-DC
- Product Type
- FlexCore Front Access Cassette
- Standards Met
- ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5, (FOCIS-5), TIA-604-10 (FOCIS-10), RoHS 2002/95/EC compliant, supports IEEE802.3 and ANSI T11.2 (Fiber Channel)
