Panduit EV18-P47B-L
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

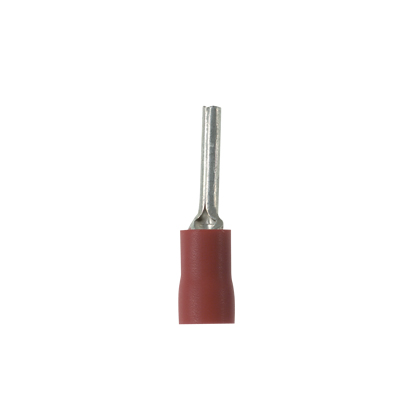

StrongHold™ Pin Terminal, vinyl insulated, 22 - 18 AWG, .49 pin length.StrongHold™ EV18-P47B-L Pin Terminal
Panduit EV18-P47B-L is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- MX
- EAN
- 00074983281626
- GTIN Carton
- 50074983281621
- GTIN Package
- 00074983281626
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 500
- Min. Order UOM
- Piece
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.1031
- Standard Carton Weight Pounds
- 1.0000
- Standard Package Volume Ft3
- 0.0103
- Standard Package Weight Pounds
- 0.1000
- Std Carton Height In
- 4.4
- Std Carton Height MM
- 111.76
- Std Carton Length In
- 9.2
- Std Carton Length MM
- 233.68
- Std Carton Width In
- 4.4
- Std Carton Width MM
- 111.76
- Std Ctn Qty
- 500
- Std Package Height In
- .05
- Std Package Height MM
- 1.27
- Std Package Length In
- 6.75
- Std Package Length MM
- 171.45
- Std Package Width In
- 4.5
- Std Package Width MM
- 114.3
- Std. Pkg. Qty.
- 50
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 07498328162
Specifications
- Base Material
- Copper
- Color Code
- Red
- Finish/Coating
- Tin-Plated
- Flammability Rating
- V0
- For Use With
- CT-100A, CT-260, CT-1550, CT-1551, CT-2300/ST with CD-550, CT-2500/L with CT-2550CH
- Insulation Diameter (In.)
- 0.15
- Insulation Diameter (mm)
- 3.8
- Insulation Material
- Vinyl
- Maximum Metric Conductor Size (mm²)
- 1
- Maximum Operating Temperature (°C)
- 105
- Maximum Operating Temperature (°F)
- 221
- Maximum Voltage (kV)
- 0.6
- Maximum Voltage (V)
- 600
- Maximum Wire Insulation Diameter (In.)
- 0.15
- Maximum Wire Insulation Diameter (mm)
- 3.8
- Minimum Metric Conductor Size (mm²)
- 0.5
- Overall Length (In.)
- 0.97
- Overall Length (mm)
- 24.6
- Pin Length (In.)
- 0.49
- Pin Length (mm)
- 12.4
- Product Segment
- IEI
- Product Type
- Pin Terminal
- Standards Met
- UL
- Sub Brand
- StrongHold™
- Wire Strip Length (In.)
- 0.31
- Wire Strip Length (mm)
- 7.9
