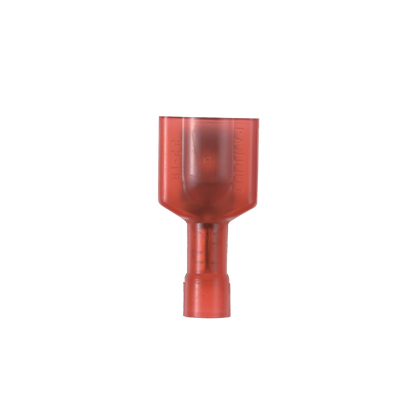

Panduit EDNF18250FIMB-Q
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
StrongHold™ Male Disconnect, nylon fully insulated, 22 -18 AWG, .250 x .032 tab size.StrongHold™ EDNF18250FIMB-Q Loose Piece Disconnect Terminal
Panduit EDNF18250FIMB-Q is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- Country of Origin 2Digit
- MX
- EAN
- 00613056366657
- GTIN Carton
- 50613056366652
- GTIN Package
- 00613056366657
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 250
- Min. Order UOM
- Piece
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.1031
- Standard Carton Weight Pounds
- 0.5000
- Standard Package Volume Ft3
- 0.0103
- Standard Package Weight Pounds
- 0.0500
- Std Carton Height In
- 4.4
- Std Carton Height MM
- 111.76
- Std Carton Length In
- 9.2
- Std Carton Length MM
- 233.68
- Std Carton Width In
- 4.4
- Std Carton Width MM
- 111.76
- Std Ctn Qty
- 250
- Std Package Height In
- .05
- Std Package Height MM
- 1.27
- Std Package Length In
- 6.75
- Std Package Length MM
- 171.45
- Std Package Width In
- 4.5
- Std Package Width MM
- 114.3
- Std. Pkg. Qty.
- 25
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 61305636665
Specifications
- Base Material
- Brass
- Color Code
- Red
- Disconnect Type
- Male Tab Disconnect
- Finish/Coating
- Tin-Plated
- For Use With
- CT-520CT-600-ACT-1525CT-2500
- Insulation Material
- Nylon - Fully Insulated
- Insulation Type
- Nylon - Fully Insulated
- Maximum Copper Conductor Size (AWG)
- #18
- Maximum Metric Conductor Size (mm²)
- 1
- Maximum Operating Temperature (°C)
- 125
- Maximum Operating Temperature (°F)
- 257
- Maximum Voltage (kV)
- 0.6
- Maximum Voltage (V)
- 600
- Maximum Wire Insulation Diameter (In.)
- 0.13
- Maximum Wire Insulation Diameter (mm)
- 3.4
- Maximum Wire Size (AWG)
- #18
- Minimum Copper Conductor Size (AWG)
- #22
- Minimum Metric Conductor Size (mm²)
- 0.5
- Minimum Wire Size (AWG)
- #22
- Overall Length (In.)
- 0.91
- Overall Length (mm)
- 21.3
- Overall Thickness (In.)
- 0.61
- Overall Thickness (mm)
- 0.4
- Overall Width (In.)
- 0.45
- Overall Width (mm)
- 11.4
- Product Segment
- IEI
- Product Type
- Loose Piece Disconnect Terminal
- Seam Type
- Butted
- Standards Met
- UL, CSA
- Sub Brand
- StrongHold™
- Tab Size (In.)
- 0.25
- Tab Size (mm)
- 6.3
- Wire Strip Length (In.)
- 0.28
- Wire Strip Length (mm)
- 7.1
