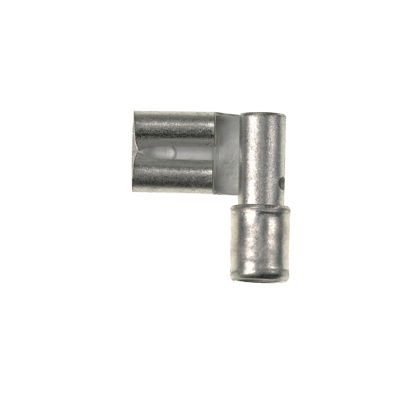

Panduit DR18-250-M
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.57" (14.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1000.Pan-Term® DR18-250-M Loose Piece Disconnect
Panduit DR18-250-M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- MX
- EAN
- 00074983827657
- GTIN Package
- 00074983827657
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1,000
- Min. Order UOM
- Piece
- Pallet Quantity
- 720,000
- Pallet Weight
- 2,088.0000
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 0.5969
- Standard Package Weight Pounds
- 2.9000
- Std Package Height In
- 3.4
- Std Package Height MM
- 86.36
- Std Package Length In
- 7.2
- Std Package Length MM
- 182.88
- Std Package Width In
- 3.4
- Std Package Width MM
- 86.36
- Std. Pkg. Qty.
- 1000
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 07498382765
Specifications
- Barrel Type
- Standard
- Base Material
- Brass
- Disconnect Type
- Female Disconnect
- Finish/Coating
- Tin-Plated
- For Use With
- CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
- Insulation Material
- Non-Insulated
- Maximum Copper Conductor Size (AWG)
- #18
- Maximum Metric Conductor Size (mm²)
- 1
- Maximum Operating Temperature (°C)
- 150
- Maximum Operating Temperature (°F)
- 302
- Maximum Voltage (kV)
- 0.6
- Maximum Voltage (V)
- 600
- Maximum Wire Size (AWG)
- #18
- Minimum Copper Conductor Size (AWG)
- #22
- Minimum Metric Conductor Size (mm²)
- 0.5
- Minimum Wire Size (AWG)
- #22
- Overall Depth (In.)
- 0.54
- Overall Depth (mm)
- 13.7
- Overall Height (In.)
- 0.54
- Overall Height (mm)
- 13.7
- Overall Length (In.)
- 0.57
- Overall Length (mm)
- 14.5
- Overall Thickness (In.)
- 0.18
- Overall Thickness (mm)
- 0.5
- Overall Width (In.)
- 0.3
- Overall Width (mm)
- 7.6
- Packaging Type
- Box
- Product Segment
- IEI
- Product Type
- Disconnect
- Standards Met
- UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
- Sub Brand
- Pan-Term®
- Tab Size (In.)
- 0.250 x 0.032
- Tab Size (mm)
- 6.3 x 0.8
- Tongue Angle
- Right Angle
- Wire Strip Length (In.)
- 1932-09-01
- Wire Strip Length (mm)
- 7.1
