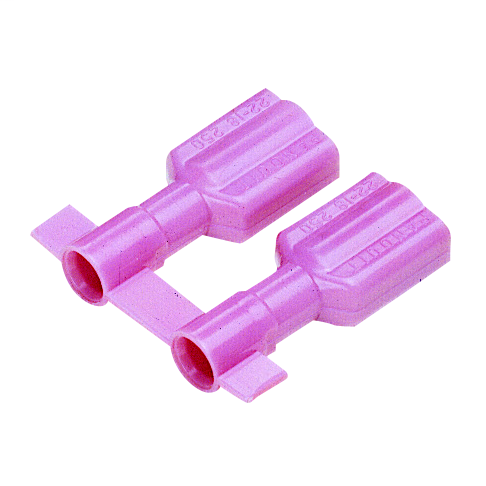

Panduit DPF18250FIBR-3K
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Female disconnect, restricted fully insulated premium nylon, 22 – 18 AWG wire range, .250 x .032 in. (6.3 x .8mm) tab size.Female disconnect, restricted fully insulated premium nylon, 22 – 18 AWG wire range, .250 x .032 in. (6.3 x .8mm) tab size
Panduit DPF18250FIBR-3K is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Specifications
- Barrel Configuration
- Funnel Entry
- Barrel Type
- Butted Seam
- CA-800/EZ Series Crimp Die
- CD-800-10
- CA9 Series Crimp Die
- CD9-10A
- Country of Origin 2Digit
- MX
- Country of Origin Description
- Mexico
- Gross Volume UOM
- CU
- Hazardous Material Flag
- N
- Insulation
- Premium Nylon - Fully Insulated
- Lowest Level UOM
- EA
- Master Pack Packaging Description
- CTN
- Master Pack Quantity
- 1
- Max. Ins.
- 0.106
- Max. Ins. (mm)
- 2.7
- Max. Insulation Diameter In. (mm)
- 0.106 (2.7)
- Max. Voltage Rating
- 600V
- Model (Design)
- Sleeve
- NMFC Rate
- 70
- Panduit Color Code
- Red
- Part Number Series
- DPF-FIBR
- Pieces Per Reel
- 3000
- Plating Type
- Tinned
- Product Group Assignment
- ReelSmart
- Shelf Life
- 0
- Tab Size (In.)
- 0.250 x 0.032
- Tab Size In. (mm)
- 0.250 x 0.032 (6.3 x 0.8)
- Tab Size (mm)
- 6.3 x 0.8
- Temperature Rating
- 221 Degrees Fahrenheit (105 Degrees Celsius)
- Unit Volume
- .0002459
- Unit Weight
- .0033
- UNSPSC
- 39121409
- UOM EA Pk
- PK
- Wire Range In. (mm²)
- 22 - 18 AWG (0.5 - 1.0)
- Wire Range (mm²)
- 0.5 - 1.0
- Wire Strip Length In. (mm)
- 9/32" (.2812) (7.1)
Certifications & Approvals
- ARRA Compliant
- Y
- Buy American Compliant
- Y
- CE Compliant
- No
- CE Marking
- No
- CSA Certified
- C22.2 No.153
- ECCN Commodity Code
- EAR99
- MSDS Indicator
- N
- Ozone Depleting Compounds
- N
- RoHS Compliancy Status
- Compliant
- Standards
- UL 310 Listed
- UL Listed
- Yes
Packaging Details
- GTIN Carton
- 50074983089333
- GTIN Package
- 00074983089338
- Minimum Order Quantity
- 3000
- Part Number Full UPC
- 7498308933
- Sell Pack Packaging Description
- ROL
- Sell Pkg Qty 1
- 1
- Ship Pack Packaging Description
- ROL
- Stanard Carton Quantity
- 3000
- Standard Carton Weight
- 9.9
- Standard Package Quantity
- 3000
- Standard Package Weight
- 9.9
- Std Carton Height
- 26.12
- Std Carton Height MM
- 663.448
- Std Carton Length
- 25.37
- Std Carton Length MM
- 644.398
- Std Carton Width
- 2037
- Std Carton Width MM
- 51739.8
- Std Package Height
- 2.4
- Std Package Height MM
- 60.96
- Std Package Length
- 26.1
- Std Package Length MM
- 662.94
- Std Package Width
- 25.4
- Std Package Width MM
- 645.16
- UNSPSC Carton Description
- CARTON
- UNSPSC Carton UOM
- CT
- UNSPSC Package Description
- PACKAGE
- UNSPSC Package UOM
- PK
- UNSPSC Piece Desription
- EACH
- UNSPSC Piece UOM
- EA
Specifications
- Base Material
- Brass
- Brand Name
- Panduit
- Flammability Rating
- V2
- Height (In.)
- 0.22
- Height (mm)
- 5.6
- Length (In.)
- 0.84
- Length In (mm)
- 0.84 (21.3)
- Length (mm)
- 21.3
- Order Min Qty Each
- 1
- Order Multiple Quantity Each
- 1
- Packaging Type
- Reel
- Style
- Female Disconnect
- Sub Brand
- Type DPF-FIBR
- Tool
- CA9 Applicator, CA-800EZ Applicator
- Type
- Restricted Fully Insulated
- Width (In.)
- 0.35
- Width In (mm)
- 0.35 (8.9)
- Width (mm)
- 8.9
- Wire Range
- 22 - 18 AWG
