Description

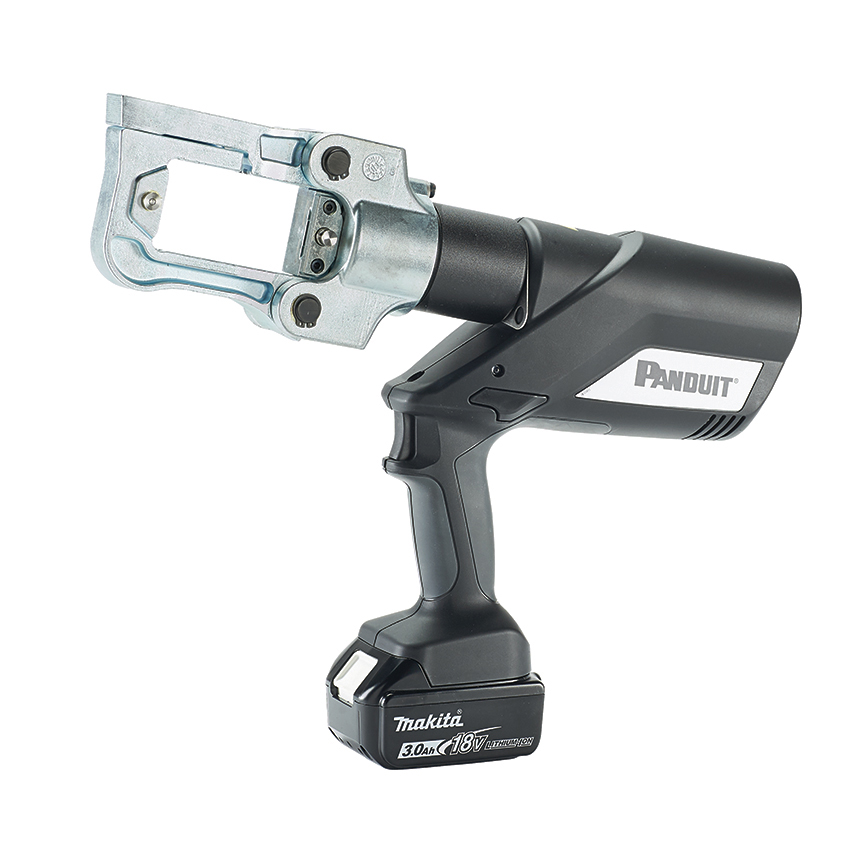

The Panduit® BlackFin® Crimping Tool crimps, cuts and punches with just the touch of a button. Thanks to a 355-degree rotating, flip-top crimp head, adapters and dies change out quickly and easily. This crimping tool has a force of 12 tons and crimps #8 AWG – 750 kcmil copper code, #8 AWG – 535 kcmil copper flex, #6 AWG - 600 kcmil aluminum, 10mm2 – 400mm2 copper class 2 metric, 10mm2 – 300mm2 copper class 5f and 6f metric, #10 AWG – 500 kcmil ferrules and #6 AWG - 1/0 AWG copper code Direct Burial Grounding connectors. Includes battery powered crimping tool with two 3.0 Ah Li-ion battery cartridges, 120 V charger with USA Type A plug, adapters for CD920/930 dies, carrying case and a shoulder strap. Crimp dies sold separately.Pan-Lug™ CT-2920/CCP Li+ Battery Powered Hydraulic, 12-Ton, Crimping Tool, PK1
Panduit CT-2920/CCP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- California Pro65 Cancer
- No
- Country of Origin 2Digit
- DE
- EAN
- 00613056172333
- GTIN Package
- 00613056172333
- Hazardous Material Flag
- Y
- Mercury Content Indicator
- No
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- Pallet Quantity
- 6
- Pallet Weight
- 171.0000
- REACH Status
- False
- RoHS Compliant
- RoHS directive is not applicable
- Standard Package Volume Ft3
- 4.8889
- Standard Package Weight Pounds
- 28.5000
- Std Package Height In
- 16
- Std Package Height MM
- 406.4
- Std Package Length In
- 24
- Std Package Length MM
- 609.6
- Std Package Width In
- 22
- Std Package Width MM
- 558.8
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 61305617233
Specifications
- Base Material
- Steel
- Battery Charge Time (min)
- 22
- Battery Chemistry
- Lithium-Ion
- Battery Voltage (V)
- 18
- Compatible Connector
- Panduit Lugs and Splices
- Crimp Cycle Time (s)
- 9
- Crimp Force (ton)
- 12
- Crimp Head Rotation (°)
- 350
- Crimp Profile
- Circumferential
- Crimps Per Charge
- 110
- For Use With
- Panduit Crimp Dies
- Includes
- UA12TKL die adapter, Two Makita 3.0 Ah,Li-Ion 18V rechargable batteries, One Makita 120V battery charger, storage case
- Insulated Tool Head
- No
- Jaw Opening Width (In.)
- 1.8
- Jaw Opening Width (mm)
- 45.7
- Maximum Aluminum Conductor Size (kcmil)
- 600
- Maximum Copper Conductor Size (kcmil)
- 750
- Maximum Flex conductor size (kcmil)
- 535
- Maximum Metric Class 2r Wire Size (mm²)
- 400
- Maximum Metric Class 5f Wire Size (mm²)
- 300
- Maximum Metric Class 6f Wire Size (mm²)
- 300
- Minimum Aluminum Conductor Size (AWG)
- 6
- Minimum Copper Conductor Size (AWG STR)
- 8
- Minimum Flex conductor size (AWG)
- 8
- Minimum Metric Class 2r Wire Size (mm²)
- 10
- Minimum Metric Class 5f Wire Size (mm²)
- 10
- Minimum Metric Class 6f Wire Size (mm²)
- 10
- Overall Height (In.)
- 13.1
- Overall Height (mm)
- 333
- Product Segment
- IEI
- Product Type
- Battery Hand Crimping Tool
- Standards Met
- Certified to IEC/EN 62841-1
- Sub Brand
- Pan-Lug™
- Tool Configuration
- Pistol Grip Design
- Tool Type
- Die Type
- Universal Tool Capabilities
- Wire Cutting
- Weight (Kg)
- 6.5
- Weight (lb)
- 14.33
