Description

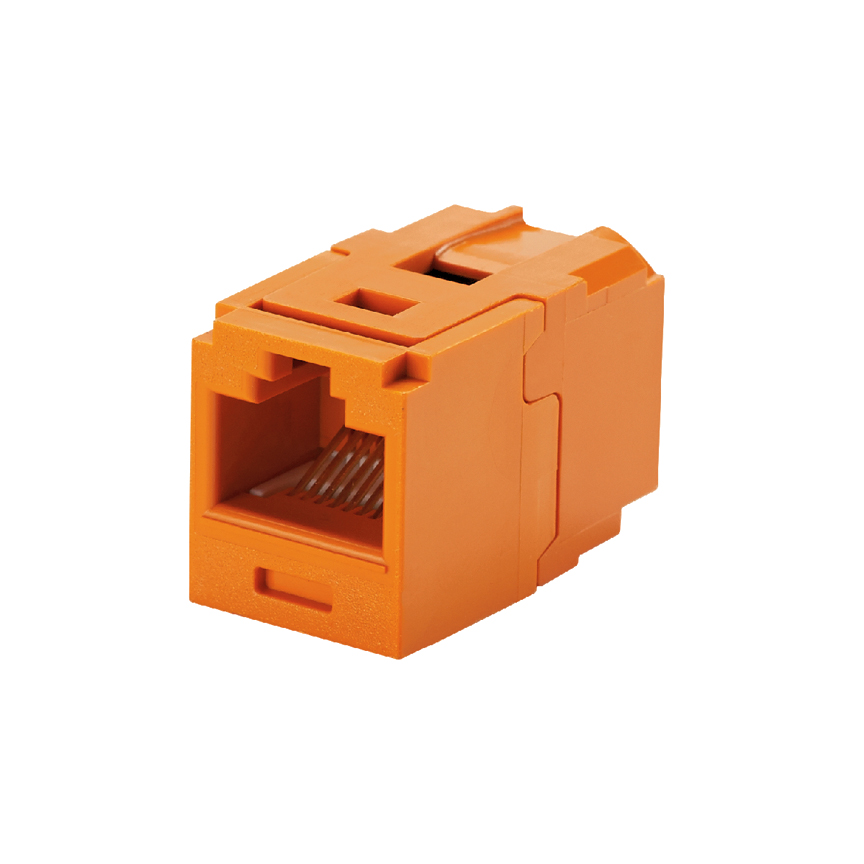

The Mini-Com® Cat 6 UTP RJ45 Coupler Module is designed and 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. The coupler module is compatible with Mini-Com Modular Patch Panels and Faceplates. The coupler is Orange.Mini-Com® UTP RJ45 Cat 6 Coupler Module, Orange
Panduit CC688OR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- MX
- EAN
- 00074983945429
- GTIN Carton
- 50074983945424
- GTIN Package
- 00074983945429
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 10
- Min. Order UOM
- Piece
- Pallet Quantity
- 13,000
- Pallet Volume
- 41.697801
- Pallet Weight
- 344.5000
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.1604
- Standard Carton Weight Pounds
- 1.3250
- Standard Package Volume Ft3
- 0.0032
- Standard Package Weight Pounds
- 0.0265
- Std Carton Height In
- 3.5
- Std Carton Height MM
- 88.9
- Std Carton Length In
- 10.7
- Std Carton Length MM
- 271.78
- Std Carton Width In
- 7.4
- Std Carton Width MM
- 187.96
- Std Ctn Qty
- 50
- Std Package Height In
- .5
- Std Package Height MM
- 12.7
- Std Package Length In
- 3.7
- Std Package Length MM
- 93.98
- Std Package Width In
- 3.1
- Std Package Width MM
- 78.74
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 07498394542
Specifications
- Body Material
- Polycarbonate
- Color
- Orange
- Connector Type
- Coupler Module
- Contact Material
- Plated Phosphor Bronze
- Maximum Operating Temperature (°C)
- 75
- Maximum Operating Temperature (°F)
- 167
- Maximum Storage Temperature (°C)
- 75
- Maximum Storage Temperature (°F)
- 167
- Minimum Operating Temperature (°C)
- -10
- Minimum Operating Temperature (°F)
- 14
- Minimum Storage Temperature (°C)
- -40
- Minimum Storage Temperature (°F)
- -40
- Module Type
- Mini-Com®
- Overall Depth (In.)
- 1.09
- Overall Depth (mm)
- 27.7
- Overall Height (In.)
- 0.71
- Overall Height (mm)
- 18
- Overall Length (In.)
- 1.09
- Overall Length (mm)
- 27.7
- Overall Width (In.)
- 0.62
- Overall Width (mm)
- 15.7
- Performance Level
- Category 6
- Product Segment
- EDI-ENT
- Product Type
- Coupler Module
- Resistance Properties
- Heat-Resistant
- Shield Type
- Unshielded (UTP)
- Standards Met
- Exceeds Channel Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category with up to 2 couplers per channel, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
- Sub Brand
- Pan-Net®
- Termination Style
- Coupler
- Wiring Scheme
- T568A/T568B
