Description

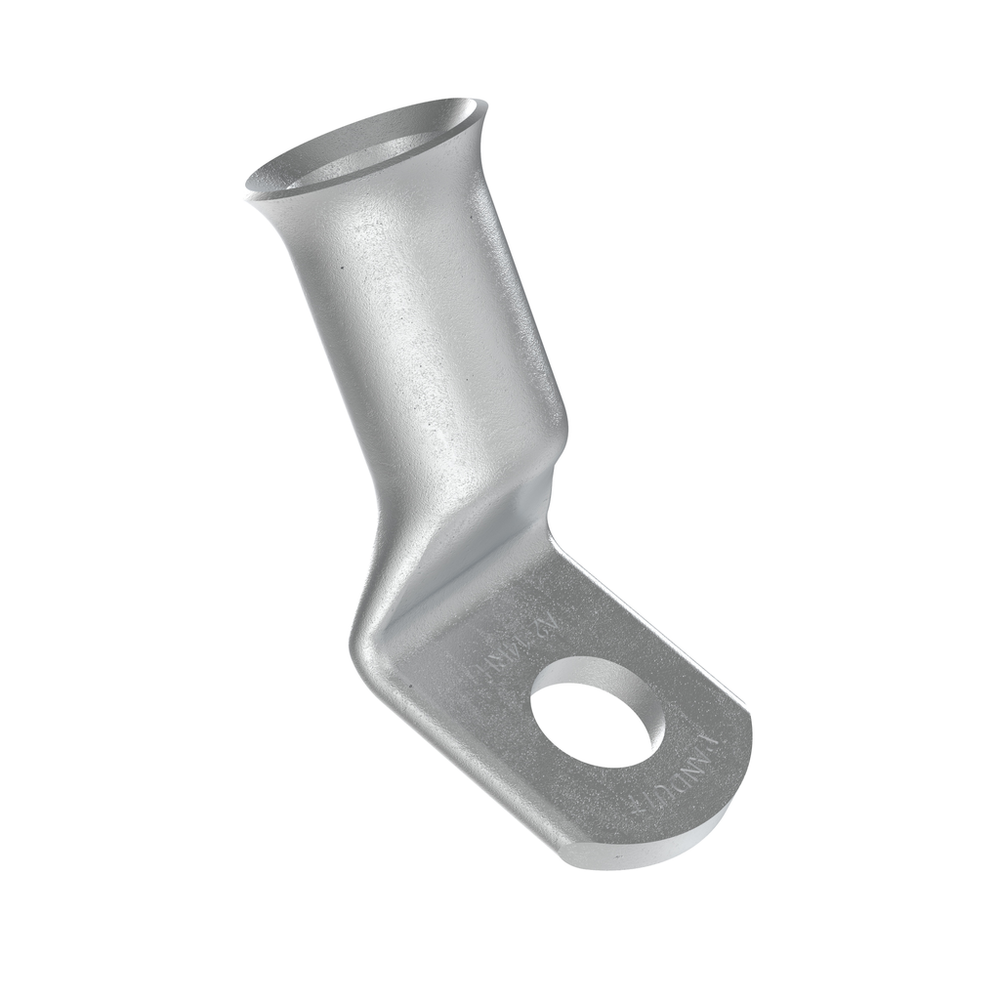

The A2-14RH-C Copper Compression Battery Cable Lug, 2 AWG, 1/4" Stud with a 45 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.Pan-Lug™ A2-14RH-C Comp. Lug, 2, Tin Plt Copper, 45°, One 0.25" Stud, PK100
Panduit A2-14RH-C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- California Pro65 Cancer
- Y
- Country of Origin 2Digit
- IN
- EAN
- 00613056793187
- GTIN Package
- 00613056793187
- Hazardous Material Flag
- N
- Mercury Content Indicator
- N
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- Pallet Quantity
- 88,000
- Pallet Weight
- 2,965.6000
- REACH Status
- N
- Restricted Use of Hazardous Substances
- N
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 0.0530
- Standard Package Weight Pounds
- 3.3700
- Std Package Height In
- 2.9
- Std Package Height MM
- 73.66
- Std Package Length In
- 7.9
- Std Package Length MM
- 200.66
- Std Package Width In
- 4
- Std Package Width MM
- 101.6
- Std. Pkg. Qty.
- 100
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 61305679318
Specifications
- Barrel Length (In.)
- 0.74
- Barrel Length (mm)
- 18.8
- Barrel Type
- Standard Barrel w/Flared Entry, No Window
- Base Material
- Copper
- Class K Copper Flex Conductor Size (AWG)
- 2
- Finish/Coating
- Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
- Inside Diameter (In.)
- 0.31
- Inside Diameter (mm)
- 7.9
- Lug Type
- 1 Stud Hole Lug
- Maximum Voltage (kV)
- 35
- Note
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Outer Diameter (In.)
- 0.42
- Outer Diameter (mm)
- 10.7
- Overall Length (In.)
- 1.71
- Overall Length (mm)
- 43.4
- Product Segment
- IEI
- Product Type
- Copper Compression Lug
- Standards Met
- UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
- Stud Hole Size (In.)
- 0.25
- Stud Hole Size (mm)
- 6.4
- Sub Brand
- Pan-Lug™
- Tongue Angle
- 45°
- Tongue Thickness (In.)
- 0.1
- Tongue Thickness (mm)
- 2.5
- Tongue Type
- Round
- Tongue Width (In.)
- 0.6
- Tongue Width (mm)
- 15.2
- UL Temperature Rating (°C)
- 90
- Wire Strip Length (In.)
- 0.75
- Wire Strip Length (mm)
- 19.1
