nVent 569204
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

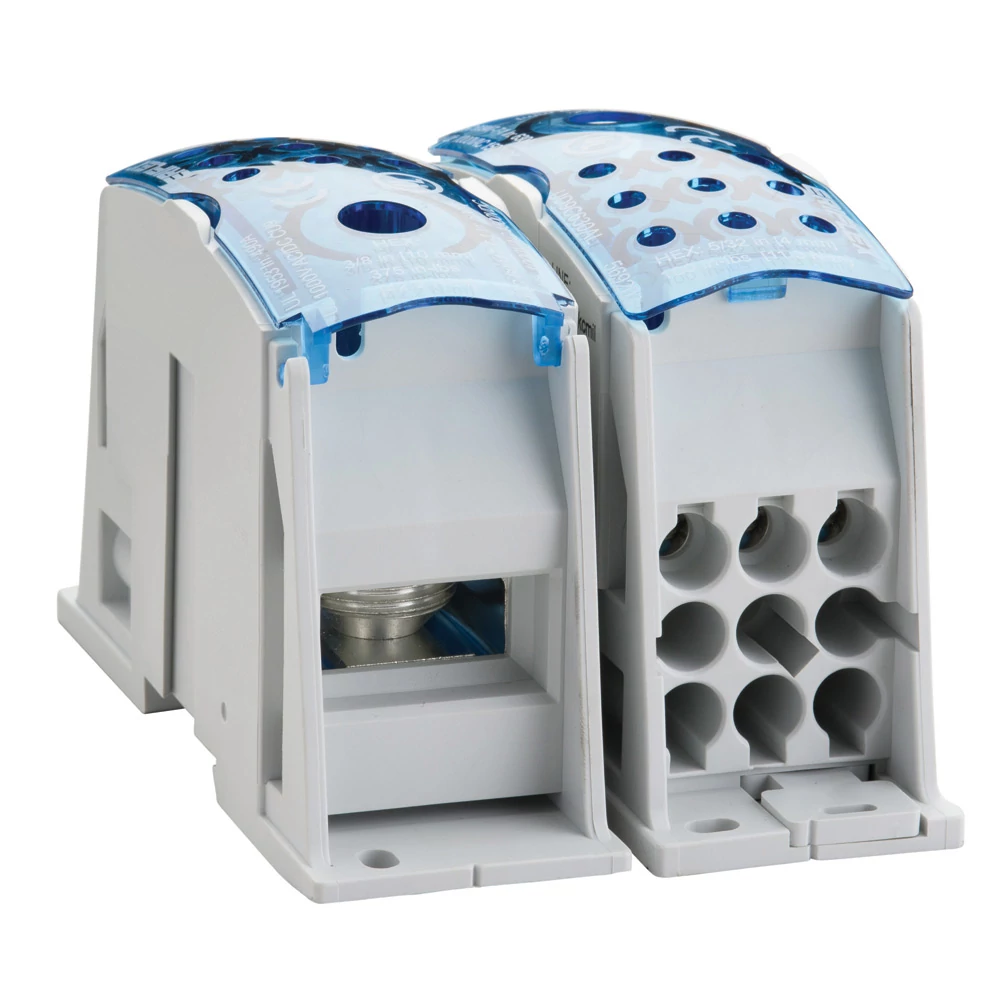

Primary device for easy assembly between a wide range of conductors to perform electrical power distribution. Single Pole Dist. Block UDF9C500AL, Aluminum.Single Pole Dist. Block, 490 A UL/CSA, Flat Cond. Line, 9 Cables Load, Aluminum
nVent Eriflex 569204 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Amperage Rating
- 500 A; 490 A
- Certification Details
- UL® 1953
- Color
- White/Blue
- Complies With
- IEC® 60947-7-1
- Conductor Range
- 100 mm²; #4
- Consist of
- null
- Depth (D)
- 127-127.00
- Enclosure Rating
- IP 20
- Environmental Conditions
- 86 To 167 Deg F
- Finish
- Tinned
- Flammability Rating
- UL® 94V-0
- Height (H)
- 78-78.00
- Insulation
- No
- Line Side Connection
- Flat Conductor
- Line Side Insulated Power Braid Cross Section
- 50
- Line Side Max Conductor Size, IEC
- 100 mm²
- Line Side Max Conductor Size, UL
- 100 mm²
- Line Side Number of Connections
- 1
- Line Side nVent ERIFLEX Flexibar Size
- 2x20x1 - 10x24x1
- Load Side Compact Stranded Wire Size
- 4 - 25 mm²
- Load Side Connection
- 9 Cables
- Load Side Max Conductor Size, IEC
- 25 mm²
- Load Side Max Conductor Size, UL
- #4
- Load Side Number of Connections
- 9
- Load Side Stranded Wire Size - Ferrule
- #12 - # 6
- Load Side Wire Size
- #12 - #4
- Material
- Aluminum
- Max Current Rating, IEC
- 500
- Max Current Rating, UL/CSA
- 490
- Max Working Voltage, IEC (Ui)
- 1,000
- Max Working Voltage, UL (Vin)
- 1,000
- Number of Conductors
- Flat Conductor; 9 Cables
- Number of Poles
- 1
- Peak Short Circuit Current (Ipk)
- 52.5
- Rated Conditional Short-Circuit Current (Icc)
- 25
- Short Circuit Current Rating (SCCR)
- 100
- Short Term Withstand Current (Icw) 1s
- 32.2
- Size
- 5x3.07x1.72
- Sub Brand
- ERIFLEX
- Temperature Rating
- 185 Deg F
- Unit Weight
- 0.27-0.27
- Voltage Rating
- 1,000 VAC, 1,500 VDC; 1,000 VAC/DC
- Weight
- 0.27 kilogram
- Width (W)
- 43.7-43.70
