nVent 561165
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

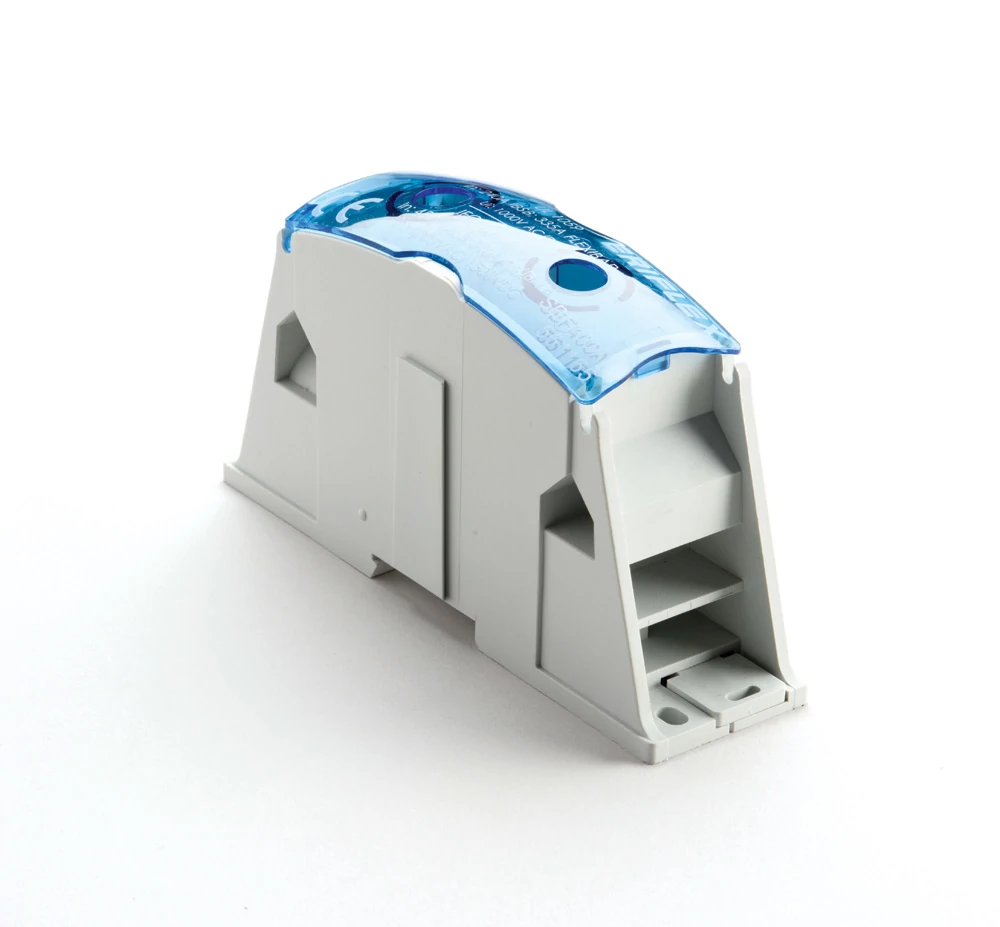

Primary output/input device for power connection between primary and secondary switchboard, or for machine or industrial equipment. Power Block SBF400AL, Aluminum.Splice Block, Flexibar-Cable, 335 A UL, Aluminum
nVent Eriflex 561165 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Certification Details
- UL® 1059
- Complies With
- IEC® 60947-7-1
- Depth (D)
- 82-82.00
- Enclosure Rating
- IP 20
- Finish
- Tinned
- Flammability Rating
- UL® 94V-0
- Height (H)
- 146.4-146.40
- Line Side Insulated Power Braid Cross Section
- 100
- Line Side Max Conductor Size, IEC
- 100 mm²
- Line Side Max Conductor Size, UL
- 100 mm²
- Line Side Number of Connections
- 1
- Line Side nVent ERIFLEX Flexibar Size
- 2x20x1 - 5x24x1
- Load Side Compact Stranded Wire Size
- 95 - 240 mm²
- Load Side Max Conductor Size, IEC
- 240 mm²
- Load Side Max Conductor Size, UL
- 400 kcmil
- Load Side Number of Connections
- 1
- Load Side Wire Size
- 3/0 – 400 kcmil
- Material
- Aluminum
- Max Current Rating, Insulated Power Braid, IEC
- 450
- Max Current Rating, Insulated Power Braid, UL/CSA
- 240
- Max Current Rating, nVent ERIFLEX Flexibar, IEC
- 510
- Max Current Rating, nVent ERIFLEX Flexibar, UL/CSA
- 335
- Max Working Voltage, IEC (Ui)
- 1,000
- Max Working Voltage, UL (Vin)
- 1,000
- Number of Poles
- 1
- Peak Short Circuit Current (Ipk)
- 51
- Rated Conditional Short-Circuit Current (Icc)
- 24.3
- Short Circuit Current Rating (SCCR)
- 100
- Short Term Withstand Current (Icw) 1s
- 28.8
- Sub Brand
- ERIFLEX
- Type
- Flexibar-Cable
- Typical Application Current Rating, IEC
- 400-400.00
- Typical Application Current Rating, UL
- 335-335.00
- Unit Weight
- 0.27-0.27
- Width (W)
- 41.5-41.50
