Description

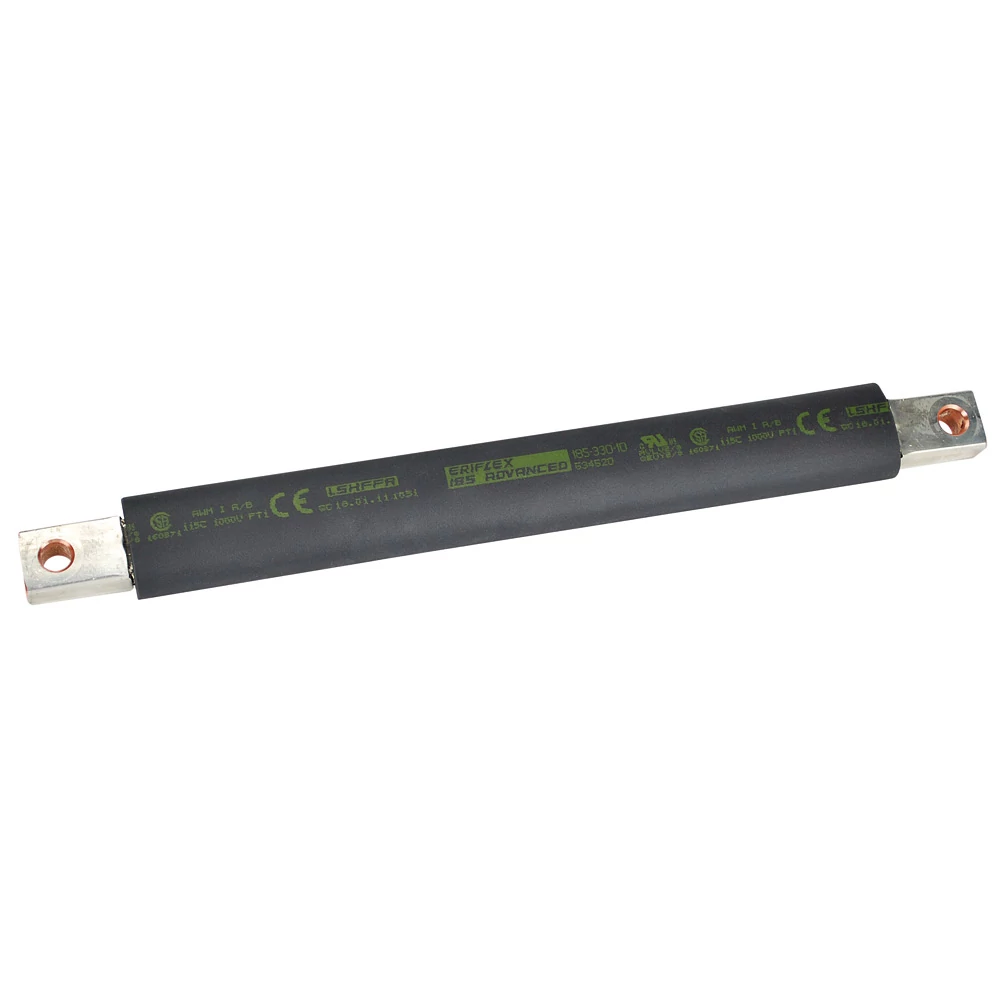

nVent Eriflex 534521 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Certification Details
- UL® 67
- Complies With
- IEC® 60439.1
- Conductor Thickness
- 15-15.00
- Conductor Width
- 24-24.00
- Cross Section
- 185
- Diameter (Ø)
- 31-31.00
- Dielectric Strength
- 20
- Finish
- Tinned
- Flammability Rating
- UL® 94V-0
- Halogen Free Rating
- UL® 2885
- Height
- 32.70 millimetre
- Hole Size (HS)
- 10.5-10.50
- Insulation Elongation
- 500-500.00
- Insulation Thickness
- 1.8-1.80
- Length
- 454.00 millimetre
- Length (L)
- 430-430.00
- Low Smoke Rating
- IEC® 61034-2
- Material
- Copper
- Max Working Voltage, IEC/UL 758
- 1,000
- Max Working Voltage, UL 67
- 600
- Sub Brand
- ERIFLEX
- Typical Application Current Rating
- 500-500.00
- Unit Weight
- 1.07-1.07
- UV Resistance Rating
- UL® 854
- Weight
- 1.07 kilogram
- Width
- 32.70 millimetre
- Wire Diameter
- 0.15
- Working Temperature
- -50-115.00
