Description

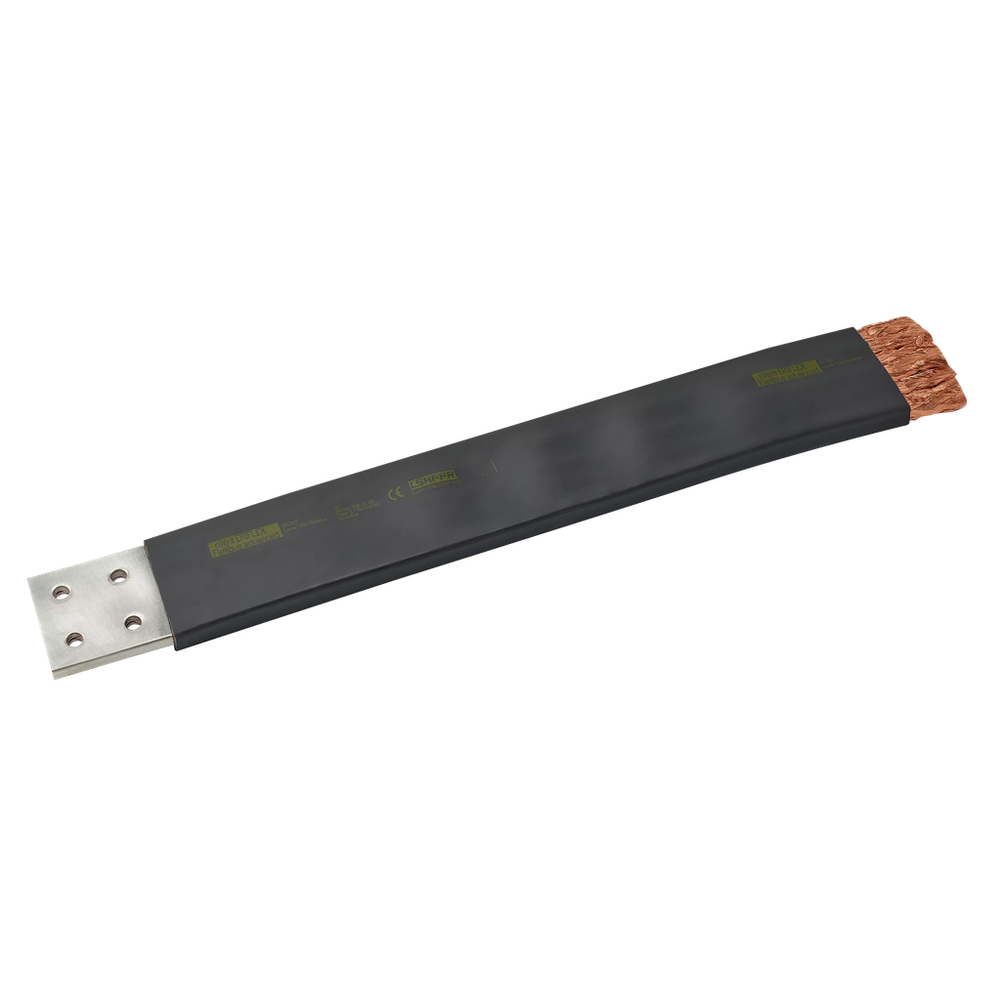

nVent ERIFLEX FleXbus Conductor is ready-to-use from one side with direct connection to busbar or circuit-breaker palm. 1.488 in², 393.7" x 1.97" x 1.97" x 0.98" x 98.11 lb.FleXbus Conductor, 1.488 in², 393.7" x 1.97" x 1.97" x 0.98" x 98.11 lb
nVent Eriflex 508048 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- 2 Bar Current Coefficient, Non-Symmetric
- 1.48
- 2 Bar Current Coefficient, Symmetric
- 2
- Complies With
- IEC® 60695-2-11 (Glow Wire Test 960 °C)
- Conductor Material
- Copper Clad Aluminum
- Connector Finish
- Tinned
- Connector Material
- Copper
- Cross Section
- 960
- Cross Section (square inch)
- 1.49
- Dielectric Strength
- 20
- Euroclass CPR
- Eca - s2, d2, a3
- Flammability Rating
- UL® 94V-0
- Halogen Free Rating
- UL® 2885
- Height
- 110.00 millimetre
- Height 1 (H1)
- 28.15
- Height 2 (H2)
- 14.8
- Hole Size (HS)
- 14-14.00
- Installation Standard
- AS 3008
- Insulation Elongation
- 500
- Insulation Material
- Thermoplastic Elastomer
- Insulation Thickness
- 2.5-3.50
- Length
- 940.00 millimetre
- Length 1 (L1)
- 10,000-10000.00
- Length 2 (L2)
- 100-100.00
- Low Smoke Rating
- IEC® 61034-2
- Mechanical Resistance Rating
- IK09
- Nominal Voltage, IEC
- 1,000
- ∆T 60 K
- 1,761
- Unit Weight
- 44.5-44.50
- UV Resistance Rating
- UL® 2556
- Weight
- 44.50 kilogram
- Width
- 940.00 millimetre
- Width 1 (W1)
- 108-108.00
- Width 2 (W2)
- 100-100.00
- Wire Diameter
- 0.2
- Working Temperature
- -50-115.00
