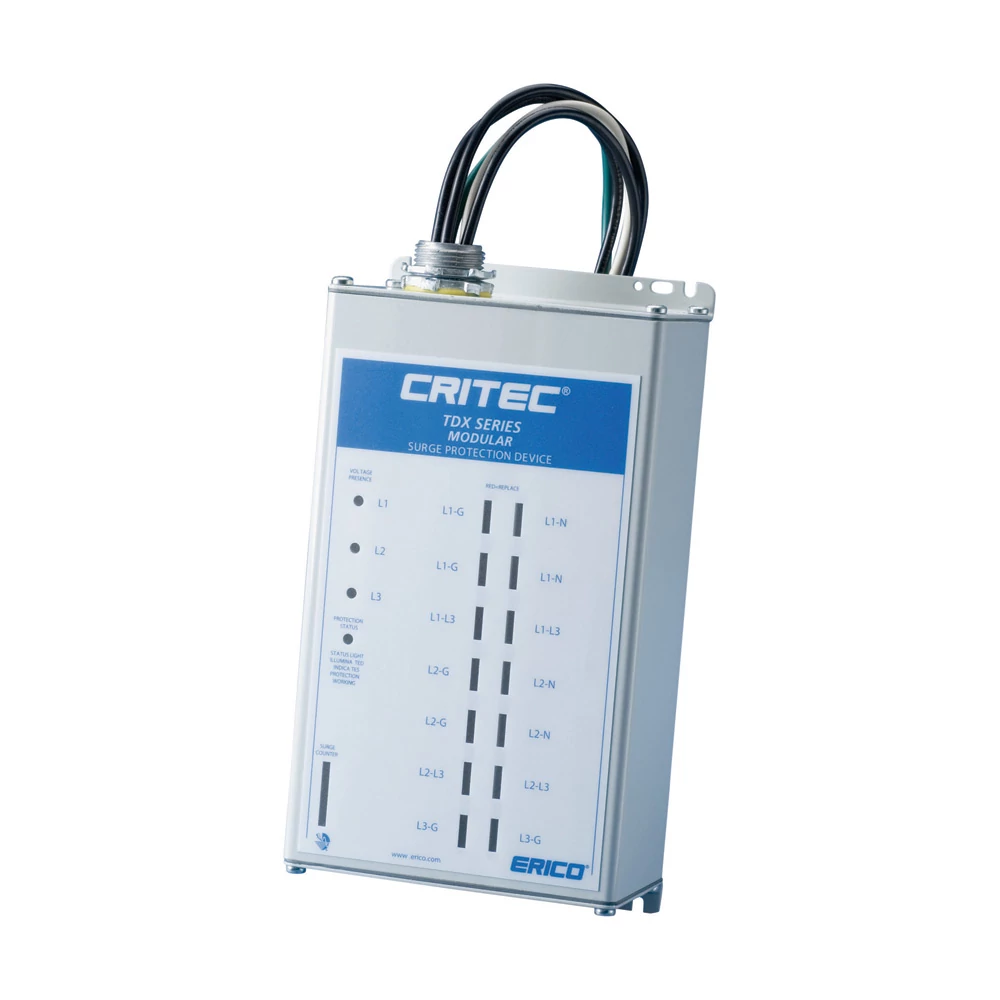

nVent TDX200M240D
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Modular TDX Panel Protector, 200 kA, 240 VAC Un, 3PhΔ 3W+G Distribution System
nVent Erico TDX200M240D is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Certification Details
- UL® 1449 Edition 5 Type 1/2, 20 kA Mode
- Complies With
- ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C
- Depth (D)
- 78-78.00
- Distribution System
- 3PhΔ 3W+G
- Enclosure Material
- Metal
- Enclosure Rating
- IP 65
- Frequency
- 50-60.00
- Ground Lead Length
- 914
- Height (H)
- 240-240.00
- Impulse Current (Iimp), Per Mode
- 25
- Lead Length
- 762
- Lead Size
- 5.26-5.26
- Max Continuous Operating Voltage (Uc)
- 276 VAC
- Max Discharge Current (Imax), Per Phase
- 200
- Mounting
- 3/4” straight nipple
- Nominal Discharge Current (In), IEC
- 80
- Nominal Discharge Current (In), UL
- 20
- Nominal System Voltage (Un)
- 240 VAC
- Protection Modes
- L-N
- Remote Contacts
- Yes
- Replacement Module
- TDS150M240
- Service Configuration
- Delta
- Short Circuit Current Rating (SCCR)
- 200
- Stand-off Voltage
- 415 VAC
- Status Indication
- LED
- Surge Counter
- No
- Technology
- TD technology with thermal disconnect
- Temperature
- -40-80.00
- Unit Weight
- 2-2.00
- Voltage Protection Rating (VPR)
- 1000 V @ 3 kA L-L
- Weight
- 2.00 kilogram
- Width (W)
- 130-130.00
