nVent TDX100C277480
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

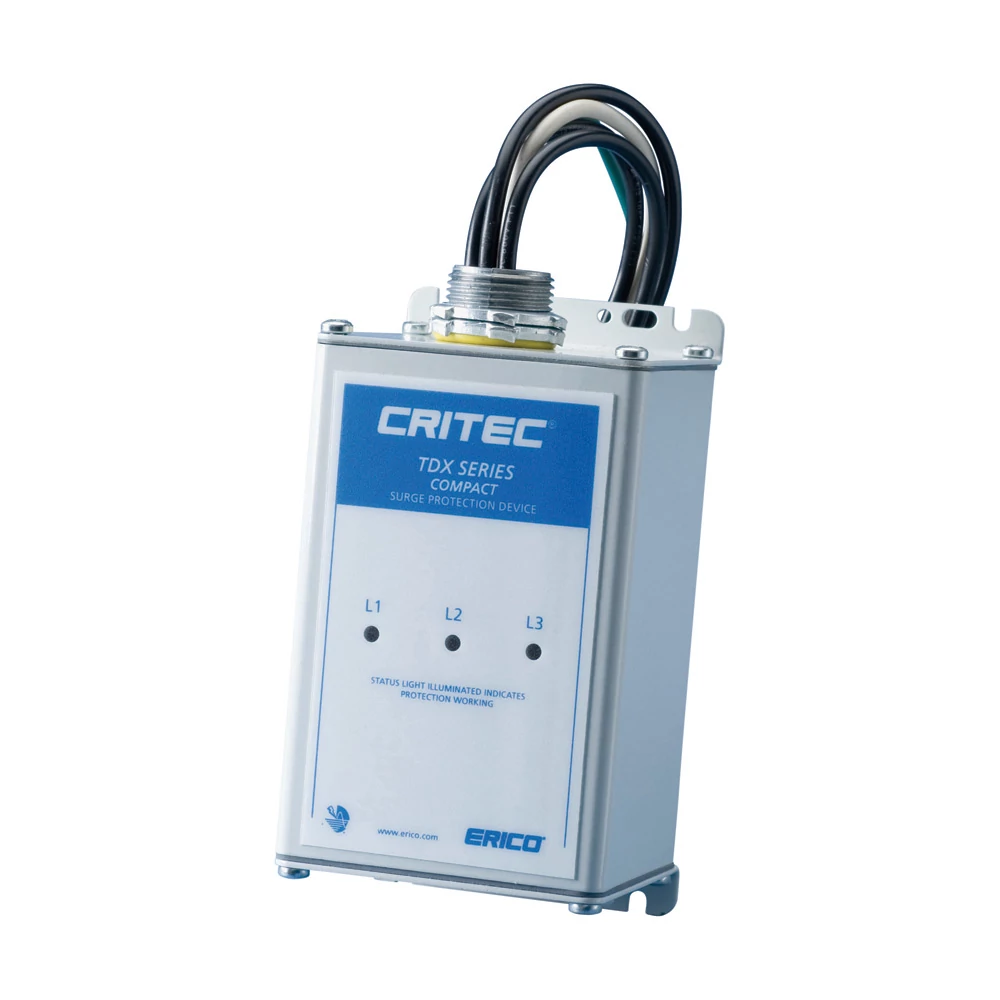

nVent Erico TDX100C277480 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Certification Details
- UL® 1449 Edition 5 Type 1/2, 20 kA Mode
- Complies With
- ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C
- Depth (D)
- 78-78.00
- Distribution System
- 3Ph 4W+G
- Enclosure Material
- Metal
- Enclosure Rating
- IP 65
- Frequency
- 50-60.00
- Ground Lead Length
- 914
- Height (H)
- 153-153.00
- Impulse Current (Iimp), Per Mode
- 12.5
- Lead Length
- 762
- Lead Size
- 5.26-5.26
- Max Continuous Operating Voltage (Uc)
- 320/550 VAC
- Max Discharge Current (Imax), Per Phase
- 100
- Mounting
- 3/4” straight nipple
- Nominal Discharge Current (In), IEC
- 40
- Nominal Discharge Current (In), UL
- 20
- Nominal System Voltage (Un)
- 277/480 V
- Protection Modes
- L-N
- Remote Contacts
- Yes
- Short Circuit Current Rating (SCCR)
- 200
- Stand-off Voltage
- 480/831 VAC
- Status Indication
- LED
- Surge Counter
- No
- Technology
- Over-current fusing
- Temperature
- -40-80.00
- Unit Weight
- 0.8-0.80
- Voltage Protection Rating (VPR), L-N
- 1200 V @ 3 kA
- Weight
- 0.79 kilogram
- Width (W)
- 84-84.00
