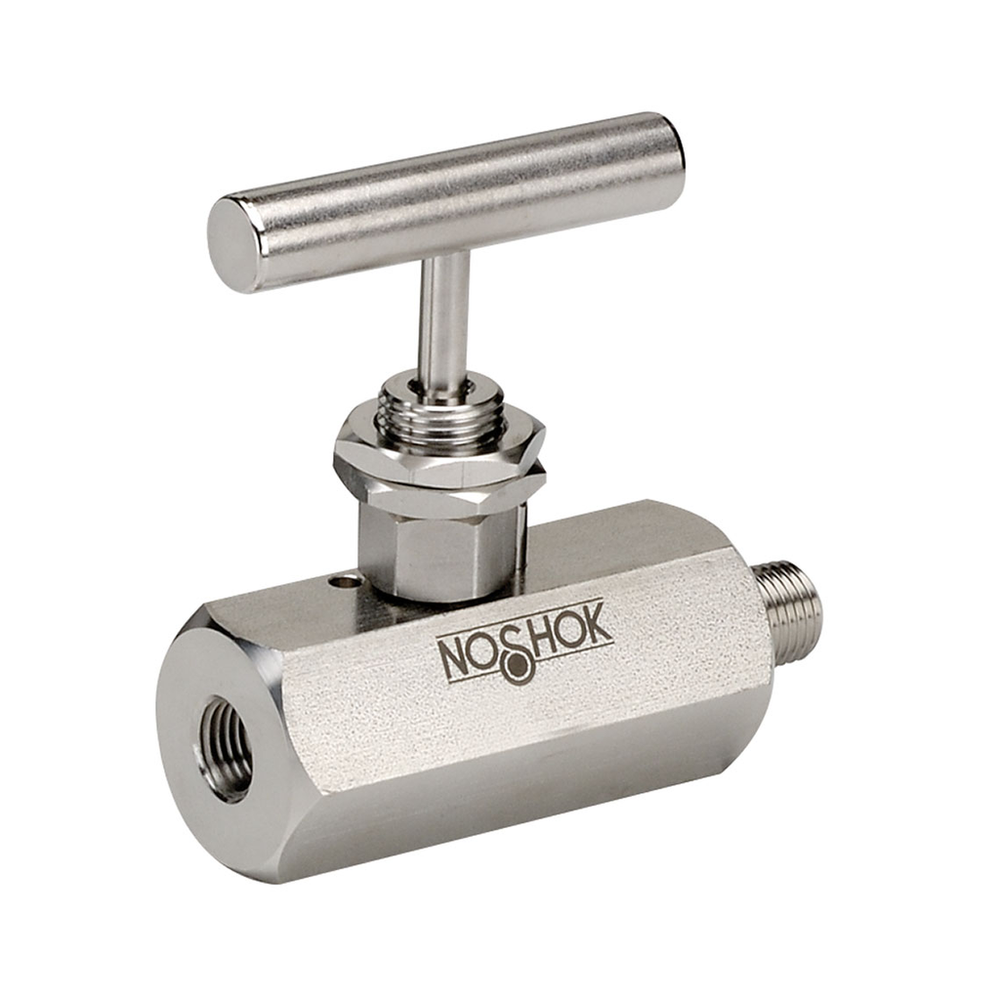

NOSHOK 404-FFS
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliabilityBlow-out proof stem provides a secondary stem seal in the full open positionFKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional (certain NPT sizes only)1/2" National Pipe Thread (NPT), Female x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Needle Valve
NOSHOK 404-FFS is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Assembly Options
- NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
- Body Material
- Electropolished 316 Stainless Steel
- Cv Coefficient
- 0.44
- End Size
- 1/2
- End Type
- National Pipe Thread (NPT)
- Installed Options and Accessories
- Packing (If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the Pressure vs. Temperature: Packing Style with Compatible Fluid chart Options Reference Chart) PTFE (P1) Graphite (P2) Stem Tips Non-rotating (316 Stainless Steel) (T1) Ball, 440C Stainless Steel (T5) Ball, carbide (T6) Ball, ceramic (T7) Ball, Monel (T8) Non-rotating regulating, 316 Stainless Steel (T9) O-Rings (Other o-ring materials available on request) EPDM (EM1) FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1) NBR (NB1) Panel Mount 1 nut (PM1) 2 nuts (PM2) Handles 1-3/8" Phenolic Handle (HL4) 1-3/4" Phenolic Handle (HL5) Cleaning For Oxygen Service (Stainless Steel Only)
- Orifice Diameter
- 0.187 in
- Pressure [Max]
- 10,000 psi
- Seat
- Hard Seat
- Stem Material
- All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional for 1/4", 3/8" & 1/2" NPT only
- Type
- Needle Valve
- Valve Material
- Stainless Steel
- Valve Type
- Female-Female
- Warranty
- 3 yr
- Weight
- 1.3 lb
