NOSHOK 40-911-60-psi
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

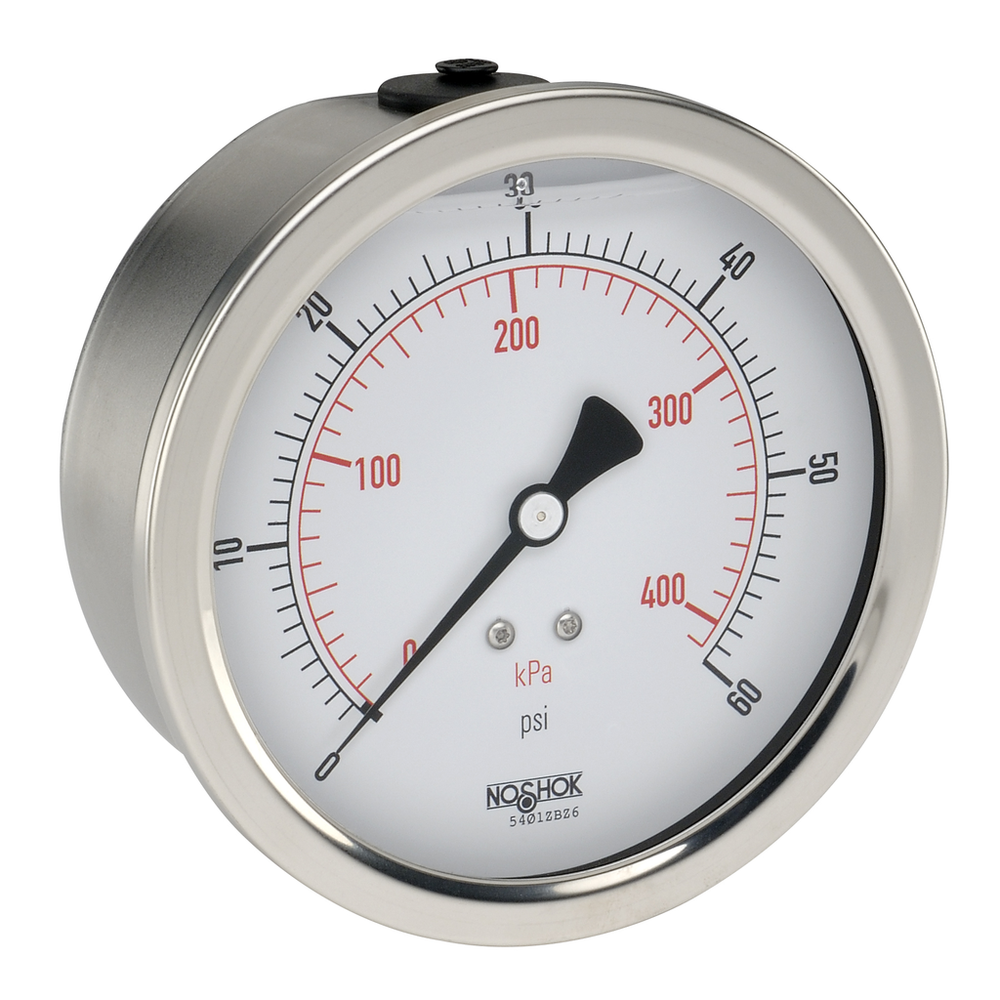

High quality liquid filled gaugeVacuum and compound ranges through 0 psi to 15,000 psiImpact resistant ABS and Stainless Steel caseCopper alloy and Brass wetted partsCleaning for Oxygen Service (O2) is available only for dry or HL (Halocarbon) filled gaugesFor gauges with MIP, GY40 fill is standard for liquid filled gauges4" 304 Stainless Steel Case, Copper Alloy Internals, 60 psi, 1/4" National Pipe Thread (NPT) Male Back Connection Pressure Gauge with Glycerin Filled
NOSHOK 40-911-60-psi is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accuracy
- 1.0 %
- Ambient Temperature Range (Glycerin Fill)
- -20 to 60 ºC, -4 to 140 ºF
- Ambient Temperature Range (Special Fill)
- -40 to 60 ºC, -40 to 140 ºF
- Bezel Material
- 304 Stainless Steel
- Case Type
- Stainless Steel (SS) Case, Liquid Filled, Back Connection
- Connection Location
- Back
- Connection Material
- Brass
- Dial/Display Size
- Aluminum, White Background with Black Primary Scale & Red Secondary Scale. Ultraviolet (UV) Resistant..
- Diaphragm Seals
- NOSHOK offers a wide variety of standard & elevated pressure, and reduced pressure replaceable and non-replaceable diaphragm seals, designed to isolate and/or protect the pressure measuring instrument from corrosive, viscous, contaminated or very high temperature process media.
- Distribution Manifolds
- NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.
- Gauge Size
- 4 in
- Installed Options and Accessories
- Available 1/4" NPT x G1/4 Adaptor (1/4-NPTFXG1/4M-BRASS-ADAPTER) G1/4 Sealing Washer (G1/4-SEALING-WASHER) 10-32-UNF-2B (10-32) Orifice - Brass Press Fit 0.3mm (BP3) - Standard Orifice - Brass Threaded 0.5mm (BT5) Laser Marking (LM) Stainless Steel Tagging (ST) -40 Degree Service (GY40) - Standard Consult Factory Silicone Fill (SL) Halocarbon Fill (HL) Mineral Oil Fill (MO) Cleaning for Oxygen Service (O 2 ) Up to 1,000 psi Cleaning for Oxygen Service (O 2 ) 1,500 psi & up Gauge Fill Options -40 Degree Service (GY40) - Standard Certificates Certified Calibration (CC)
- Material
- 304 Stainless Steel
- Measuring Element
- Copper Alloy C-Type Bourdon Tube
- Media Temperature Range (Glycerin Fill)
- -20 to 60 ºC, -4 to 140 ºF
- Media Temperature Range (Special Fill)
- -40 to 60 ºC, -40 to 140 ºF
- Metric Dials and Customized Special Dials
- Dual scale metric dials in psi/bar, psi/kPa and psi/kg/cm 2 Other scales are available for specific sizes and ranges, such as single scale bar and kPa, refrigerant scales and altitude scales Customized special dials such as non-standard metric scale, tons of ram, lbs. of force, etc. are available in small quantities (as few as one piece) on some NOSHOK gauges Please consult the factory for availability.
- Pointer
- Balanced Aluminum, Black Finish
- Pressure Range
- 0 to 60 psi
- Scale Option
- psi Single Scale
- Steam Syphons
- Protect the instrument from the damaging effects of high temperature steam Recommended for use in all steam applications Available in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3800 psi at 850 ºF
- Type
- Pressure Gauge
- Uninstalled Options and Accessories
- Certificate of Cleaning (COCL) Certificate of Conformance (COC)
- Warranty
- 3 yr
- Working Pressure Limitations
- Dynamic Pressure The working pressure should be limited to 60% of the dial range Static Pressure The working pressure, where no sharp fluctuations occur, should be limited to 90% of the dial range
