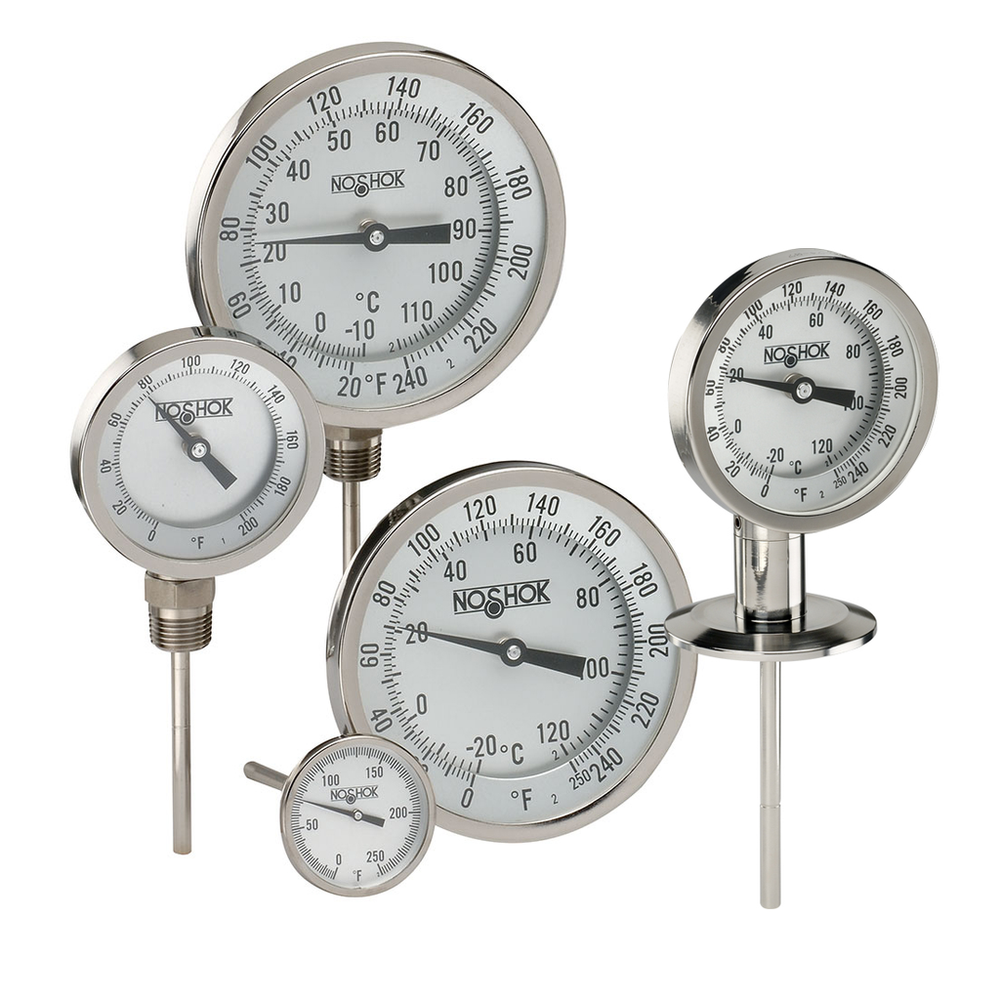

NOSHOK 30-310-060-0/200-F/C

Specifications

• 1/2" NPT Adjustable Union (AU)
  • Can be used to reposition the dial face for better viewing Also helpful when installing a thermometer where space is limited
• 300 Series Bimetal Thermometer Silicone Filled (SL)
  • Available only for ranges from -50 ºF (-45 ºC) to 500 ºF (260 ºC) For applications where severe vibration may be a factor Silicone dampens and lubricates the internal mechanism thus reducing pointer oscillation and premature wear Maximum case temperature not to exceed 300 ºF (150 ºC) Polycarbonate lens is standard with Silicone Fill
• Accuracy
  • 1.0 %
• Accuracy Grade
  • A
• Bimetal Coil
  • Silicone coated helix coil on ranges below 500 ºF for vibration dampening, maximum heat transfer and response time
• Case Type
  • Back Connection
• Certified Calibration
  • Certified calibration provides the user with a serial numbered thermometer along with a calibration sheet against a primary temperature standard Traceable to the National Institute of Standards and Technology
• Connection Type
  • National Pipe Thread (NPT)
• Dial
  • Anodized Aluminum with large black numbers and graduations
• Dial Size
  • 3 in
• Glow Dial (GD)
  • Available only on 50-310 and 50-320 model allows up close daylight and/or distant night time viewing 5" Adjustable angle or back connect Reflective Pointer Two reflective clips included to indicate custom minimum and maximum limits
• Hermetic Seal
  • Per American Society of Mechanical Engineers (ASME) B40.3 dustproof and leakproof
• Lens Display Material
  • Instrument Glass
• Limits Over Temperature at 100 Percentage
  • Up to 250 ºF
• Limits Over Temperature at Continuous Use Up to 800 ºF
  • 550 to 1,000 ºF
• Material
  • 304 Stainless Steel
• Min and Max Indicating Pointers (MIP2)
  • The MIP2 allows you to view your minimum and maximum temperatures for visual clarification of safe operation Available only on 30-310 and 50-310 model
• Mounting Flanges - Bimetal Thermometers
  • Various sizes and types of mounting flanges are available
• Operating Temperature Max
  • 200 ºF
• Optional Wetted Parts Material
  • 316 Stainless Steel
• Options and Accessories
  • 1/2" NPT Adjustable Union (AU), available for 3" and 5" dial sizes only 316 SS Connection & Stem, available for 3" and 5" dial sizes only 6 mm stem diameter, available for 3" and 5" dial sizes only 8 mm stem diameter, available for 3" and 5" dial sizes only Acrylic Lens (PL) Certificate of Conformance Heavy-Duty Stem (0.375" Dia.), available for 3" and 5" dial sizes only Mounting Brackets - Consult Factory Polycarbonate Lens (LL), should not be used where case temperature exceeds 300 ºF/150 ºC Safety Glass Lens (SG), available for 3" and 5" dial sizes only Stainless Steel Tagging (ST) Tempered Glass Lens (TG), not available with Silicone Filled (SL) option.
• Pointer
  • Aluminum, Black Finished
• Recalibrator
  • External Reset
• Series
  • 300
• Special Dials - Bimetal Thermometers
  • Special ranges and dials with company names, company logos, part numbers, telephone numbers, or almost any custom layout is available
• Stem Diameter
  • 0.250 in, 6.35 mm
• Stem Types
  • The 304 Series Stainless Steel stem is welded at the tip and case for hermetic seal 1/4" (6.35 mm) diameter is standard for lengths up to 24" (609 mm) 3/8" diameter, sharp tip options and optional 316SS wetted parts are also available
• Stock
  • Yes
• Temperature Scale
  • Dual
• Thermowells
  • Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument.
• Type
  • Bimetal Thermometer
• Wetted Parts Material
  • 304 Stainless Steel
