NOSHOK 30-110-040-50/500-F/C
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

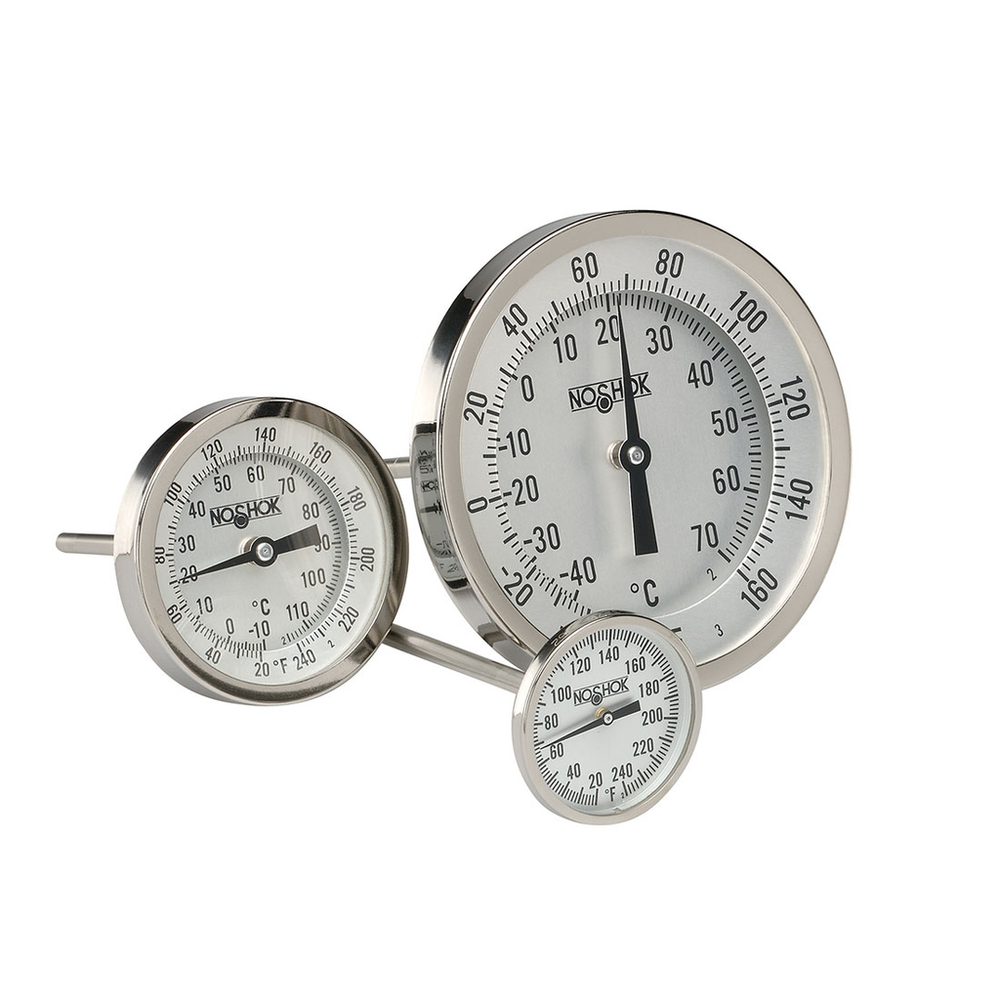

Heavy-duty, industrial thermometer featuring a weather-resistant, tamper-proof case ± 1-3/4", 2", 3" and 5" sizes - center back connection only Highly sensitive bimetallic helix coil is heat-treated for stress relief, and silicone-coated to minimize pointer vibration and maximize heat transfer and response time 360º groove around stem is a visual reference to show minimum immersion point Made in the U.S.A.3" Bimetal, 1/2" National Pipe Thread (NPT) Back Connection, 4" Stem Length, 50/500 ºF/ºC, 0.250" Diameter Thermometer
NOSHOK 30-110-040-50/500-F/C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- 100 Series Bimetal Thermometer Silicone Filled (SL)
- Available for 20-110, 30-110 and 50-110 models only Available only for ranges from -50 ºF (-45 ºC) to 500 ºF (260 ºC) For applications where severe vibration may be a factor Silicone dampens and lubricates the internal mechanism thus reducing pointer oscillation and premature wear Maximum case temperature not to exceed 300 ºF (150 ºC) Polycarbonate lens is standard with Silicone Fill
- 1/2" NPT Adjustable Union (AU)
- Can be used to reposition the dial face for better viewing Also helpful when installing a thermometer where space is limited
- Accuracy
- 1.0 %
- Accuracy Grade
- A
- Bimetal Coil
- Silicone coated helix coil on ranges below 500 ºF for vibration dampening, maximum heat transfer and response time
- Case Type
- Back Connection
- Certified Calibration
- Certified calibration provides the user with a serial numbered thermometer along with a calibration sheet against a primary temperature standard Traceable to the National Institute of Standards and Technology
- Connection Type
- National Pipe Thread (NPT)
- Dial
- Anodized Aluminum with large black numbers and graduations
- Dial Size
- 3 in
- Hermetic Seal
- Per American Society of Mechanical Engineers (ASME) B40.3 dustproof and leakproof
- Lens Display Material
- Instrument Glass
- Limits Over Temperature at 100 Percentage
- Up to 250 ºF
- Limits Over Temperature at Continuous Use Up to 800 ºF
- 550 to 1,000 ºF
- Material
- 304 Stainless Steel
- Mounting Flanges - Bimetal Thermometers
- Special ranges and dials with company names, company logos, part numbers, telephone numbers, or almost any custom layout is available
- Operating Temperature Max
- 500 ºF
- Optional Case and Bezel Material
- 316 Stainless Steel
- Optional Wetted Parts Material
- 316 Stainless Steel
- Options and Accessories
- 316 SS Wetted Parts, Available 6 mm Stem Diameter, Available 8 mm Stem Diameter, Available Acrylic Lens (PL) Safety Glass Lens (SG) available Certificate of Conformance Mounting Brackets - Consult Factory Stainless Steel Tagging (ST) Heavy-Duty Stem (0.375 in. Dia.) (HD) available Tempered Glass Lens
- Pointer
- Aluminum, Black Finished
- Series
- 100
- Special Dials - Bimetal Thermometers
- Special ranges and dials with company names, company logos, part numbers, telephone numbers, or almost any custom layout is available
- Stem Diameter
- 0.250 in, 6.35 mm
- Stem Types
- The 304 Series Stainless Steel stem is welded at the tip and case for hermetic seal 1/4" (6.35 mm) diameter is standard for lengths up to 24" (609 mm) 3/8" diameter, sharp tip options and optional 316SS wetted parts are also available
- Stock
- Yes
- Temperature Scale
- Dual
- Thermowells
- Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument.
- Type
- Bimetal Thermometer
- Warranty
- 1 yr
