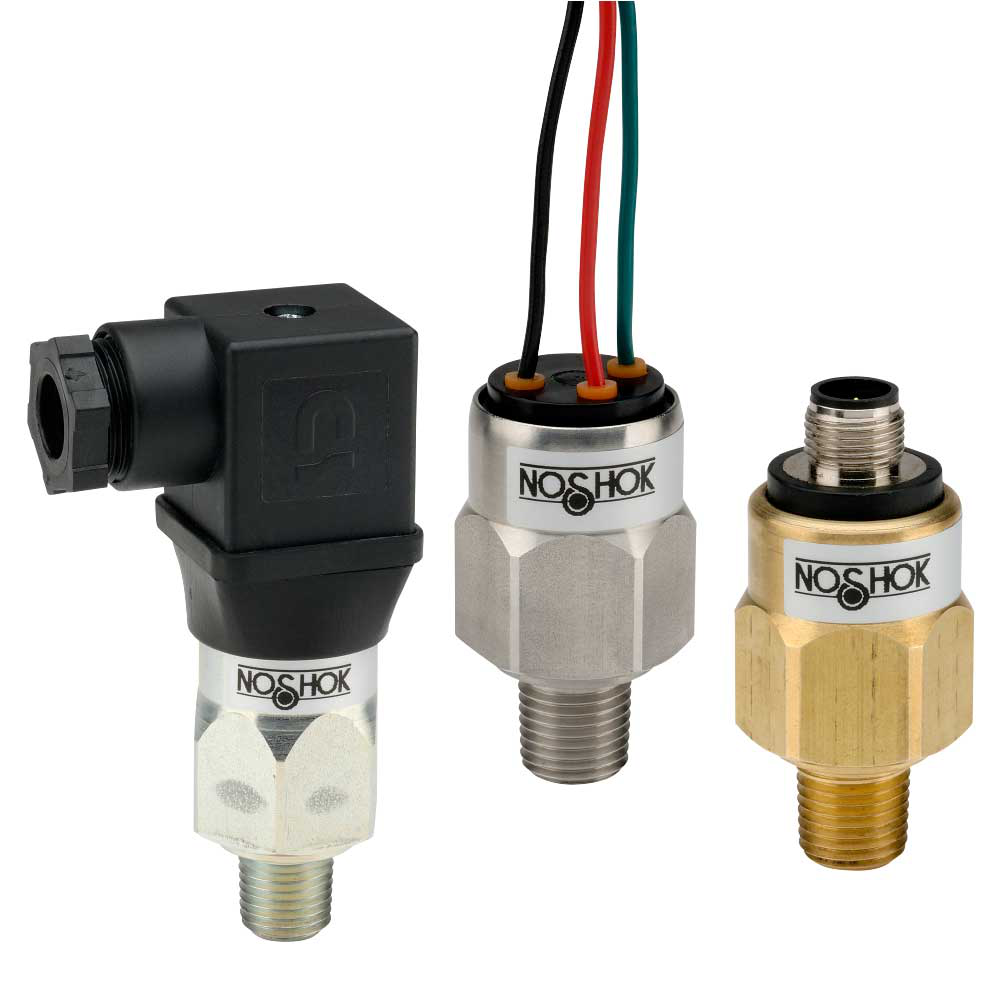

NOSHOK 200L-3-2-15/75-77
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switch adjustment ranges from vacuum through 6,00 psig depending on model200V & 200L: Standard Brass with NBR diaphragm wetted parts, 200H: Standard Zinc-nickel with NBR diaphragm wetted partsSPST or SPDT snap-action switch with solid Silver contactsCE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD)RoHS compliant200L Series Snap Action, Brass Wetted Materials, NBR Diaphragm, 1 SPDT, (NO/NC), 1/4" NPT, 15 to 75 psig (350 psig), 18" Flying Leads Mechanical Compact SPDT Pressure Switch
NOSHOK 200L-3-2-15/75-77 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient Temperature Range
- -20 to 80 ºC, -4 to 176 ºF
- Contact Material
- Solid Silver, Self-Cleaning
- Distribution Manifolds
- NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.
- Dynamic Proof Pressure
- 517 bar, 7,500 psi
- Frequency [Max]
- 100 cpm
- Hysteresis
- 4 to 7 psi
- Measuring Element
- Brass, NBR Diaphragm
- Mechanical Switches Options & Accessories
- Factory Adjusted Switch Point (Specify)
- Media Temperature Range
- -20 to 80 ºC, -4 to 176 ºF
- Non-Repeatability
- 1 psi or 5% of Setpoint
- Optional Contact Material
- Gold-Plated
- Pressure Snubbers - Piston Type
- Resist clogging and are self-cleaning Five different sized pistons included with each snubber to ensure the correct amount of snubbing for virtually every application Available in Brass and 316 Stainless Steel in 1/4" NPT, 1/2" NPT or SAE J1926-3: 7/16-20 Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2"
- Process Connection Size
- 1/4 in
- Series
- 200
- Service Life
- < 1,000,000 Load Cycles
- Static Proof Pressure
- 620 bar, 9,000 psi
- Switch Adjustable Range
- 15 to 75 psig
- Switching Function
- Single Pole Double Throw (SPDT)
- Switch Point
- Field Adjustable and/or Factory Set
- Switch Type
- Snap Action
- Swivel Adapters
- Temperature ratings: 15,000 psi at 200 ºF and 3,000 psi at 1,000 ºF Used with gauges and gauge valves to adjust the line of sight Rotates 360º to allow the connected instrument to be positioned in the desired direction The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut All 316 Stainless Steel construction Standard with 1/2" NPT male process - 1/2" NPT female instrument connections Also available with 1/4" NPT connections, same specifications apply Weight approximately 0.8 lb.
- Type
- Mechanical Pressure Switch
- Warranty
- 1 yr
- Weight
- 0.2 lb
