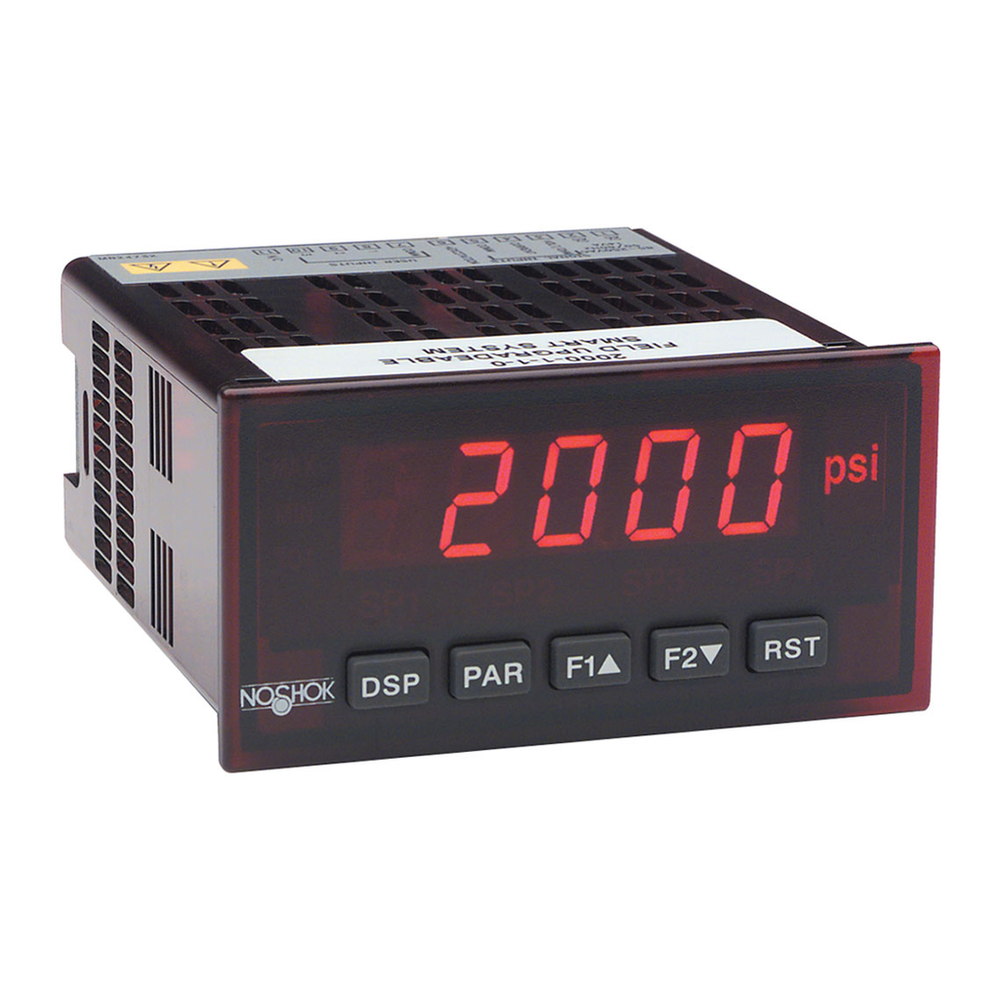

NOSHOK 2000-5-1-0
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Accepts a variety of standard process signals and precisely scales them into any desired unit of measurementSingle input or dual inputEmploys advanced technology for stable, drift-free readoutField upgradeable with plug-in option cards; including 4 set point alarms, analog output and serial communication16 point scaling for non-linear processesMax. and min. value displayVoltage Input, 115/230 Vac, Smart System Indicator
NOSHOK 2000-5-1-0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- 2000/2100 Series Smart System Intelligent Digital Indicator Option Cards
- No Option Card Quad Relay Option Card Quad NPN-OC Option Card Quad PNP-OC Option Card RS232-C Serial Communications Option Card RS 485 Serial Communications Option Card
- AC to DC Retrofit Package
- Easily integrates with non-metallic seal and transmitter/switch assemblies to operate with 110/240 VAC systems Solid state relay - 10A at 250 VAC DIN rail mountable with NEMA 4X enclosure
- Alternating Current (AC) Voltage
- 115|230 V
- Application
- Process indication On/Off pump controls Compressor controls Safety or shutdown alarms Local indication with signal Local indication with signal retransmission to computer control system
- Direct Current (DC) Transmitter Power Supply Voltage
- 24 V
- Display Type
- 5 digit, 0.56" Red LED
- Effect
- ≤0.1 %
- Electrical Connection
- Screw terminals at back of case
- Environmental Rating
- National Electrical Manufacturers Association (NEMA) 4, National Electrical Manufacturers Association (NEMA) 4X, Ingress Protection (IP65) (Front of Display Only)
- Full Scale Temperature
- 10 ºC, 18 ºF
- Industry Standards/Certifications
- European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326-1, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
- Key Pad
- 3 programmable function keys, 5 total
- Linearization
- 2 to 16 points, selectable
- Memory
- Electrically Erasable Programmable Read-Only Memory (EEPROM)
- NEMA 4 Enclosure - 1950 Series Digital Indicator
- NEMA 4X/IP65 enclosures (sealed bezel only) standard Black painted steel enclosures (ENC1) are available
- Normal Rejection Mode Frequency
- 50|60 Hz
- Operating Temperature [Max]
- 50 ºC, 122 ºF
- Operating Temperature [Min]
- 0 ºC, 32 ºF
- Option Cards
- No Option Card
- Options
- Resistance Temperature Device (RTD), Thermocouple
- Power Requirement
- AC version 85 Vac to 250 Vac, 50/60 Hz, 15 VA, DC version 11 Vdc to 36 Vdc, 11 W
- Reading [Min/Max]
- Captures and stores min/max measurement
- Selectable Filtering
- 0 to 25 s
- Sensor Excitation
- Built-in 24 Vdc
- Shock
- 25 g
- Storage Temperature
- -40 to 60 ºC, -40 to 140 ºF
- Totalizer Time Base
- Second, Minute, Hour or Day
- Type
- Digital Indicator
- Update Rate
- 200 ms
- User Inputs
- 3 programmable, 30 Vdc max. continuous
- Vibration
- 2 g, 5 to 150 Hz
- Warranty
- 2 yr
