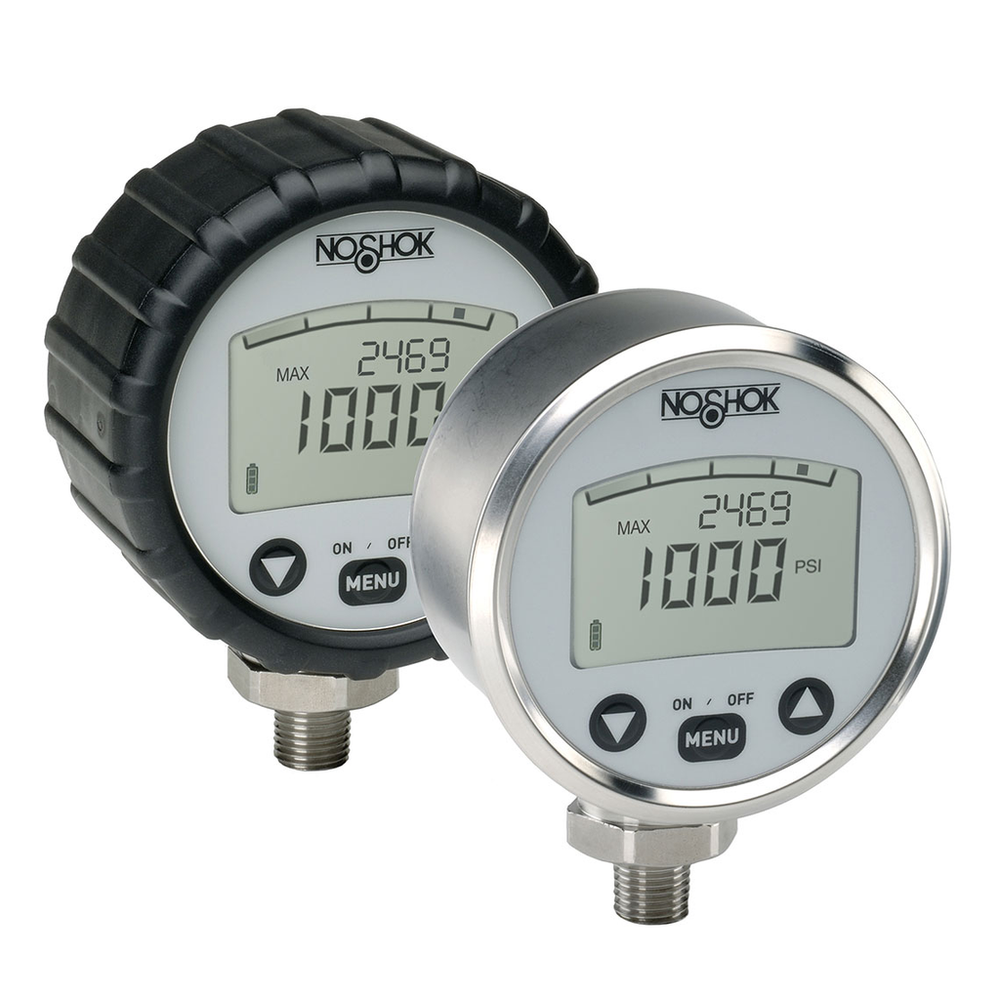

NOSHOK 1000-10000-2-1

Specifications

• Ambient Temperature Range
  • -10 to 60 ºC, 14 to 140 ºF
• Assembly Options
  • NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
• Caution
  • Operating conditions including, but not limited to, system pressure, media compatibility and ambient conditions must be considered when selecting gauges and accessories. Improper selections and use of gauges could possibly cause gauge failure and lead to possible property damage or personal injury. Refer to the American National Standard ANSI B40.1 for the correct selection and use of gauges. A copy of this standard may be obtained from the American Society of Mechanical Engineers, United Engineering Center, 345 East 47th Street, New York, NY 10017. In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
• Compensated Temperature Range
  • 0 to 60 ºC, 32 to 140 ºF
• Connection Material
  • 316 Stainless Steel
• Dial/Display Size
  • Liquid Crystal Display with 0.43" digits, 4 digits up to 9999 with bar graph
• Diaphragm Seals
  • NOSHOK offers a wide variety of standard & elevated pressure, and reduced pressure replaceable and non-replaceable diaphragm seals, designed to isolate and/or protect the pressure measuring instrument from corrosive, viscous, contaminated or very high temperature process media.
• Digit Accuracy (±)
  • 1 %
• Distribution Manifolds
  • NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.
• Environmental Rating
  • Ingress Protection (IP65)
• Gauge Size
  • 3.31 in
• Industry Standards/Certifications
  • European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
• Installed Options and Accessories
  • Peak Memory (1) - Standard Enhanced Software (6) Includes: Tare Function, Password Protection, Min/Max Memory, Internal Lighting & Rotatable Base SS Threaded Orifice (ST8) Rubber Case Protector (RCP) Gauge Carrying Case (GC)
• Material
  • Stainless Steel
• Measuring Element
  • Stainless Steel, Thin-Film Measuring Element
• Measuring Units
  • Bar, Psi, MPa
• Media Temperature Range
  • -30 to 85 ºC, -22 to 185 ºF
• Operating Temperature [Max]
  • 70 ºC, 158 ºF
• Operating Temperature [Min]
  • -20 ºC, -4 ºF
• Options and Accessories
  • Peak Memory - Standard
• Peak Memory
  • Min/Max, Display, Hold
• Power Requirement
  • 2 x 1.5V "AA" Battery, 4,000 hrs ("AA" 2,000 mAh)
• Pressure Range
  • 0 to 10,000 psig
• Programmable Functions
  • Adjustable Through Front Key Pad
• Proof Pressure [Max]
  • 15,000 psi
• Response Time
  • 200 ms
• Rotatable Base Angle
  • 300 º
• Series
  • 1000
• Steam Syphons
  • Protect the instrument from the damaging effects of high temperature steam Recommended for use in all steam applications Available in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi at 850 ºF
• Terminal Point Accuracy (±)
  • 0.5 %
• Triangular Bezel Material
  • Stainless Steel
• Type
  • Digital Pressure Gauge
• Warranty
  • 3 yr
• Weight
  • 0.88 lb
