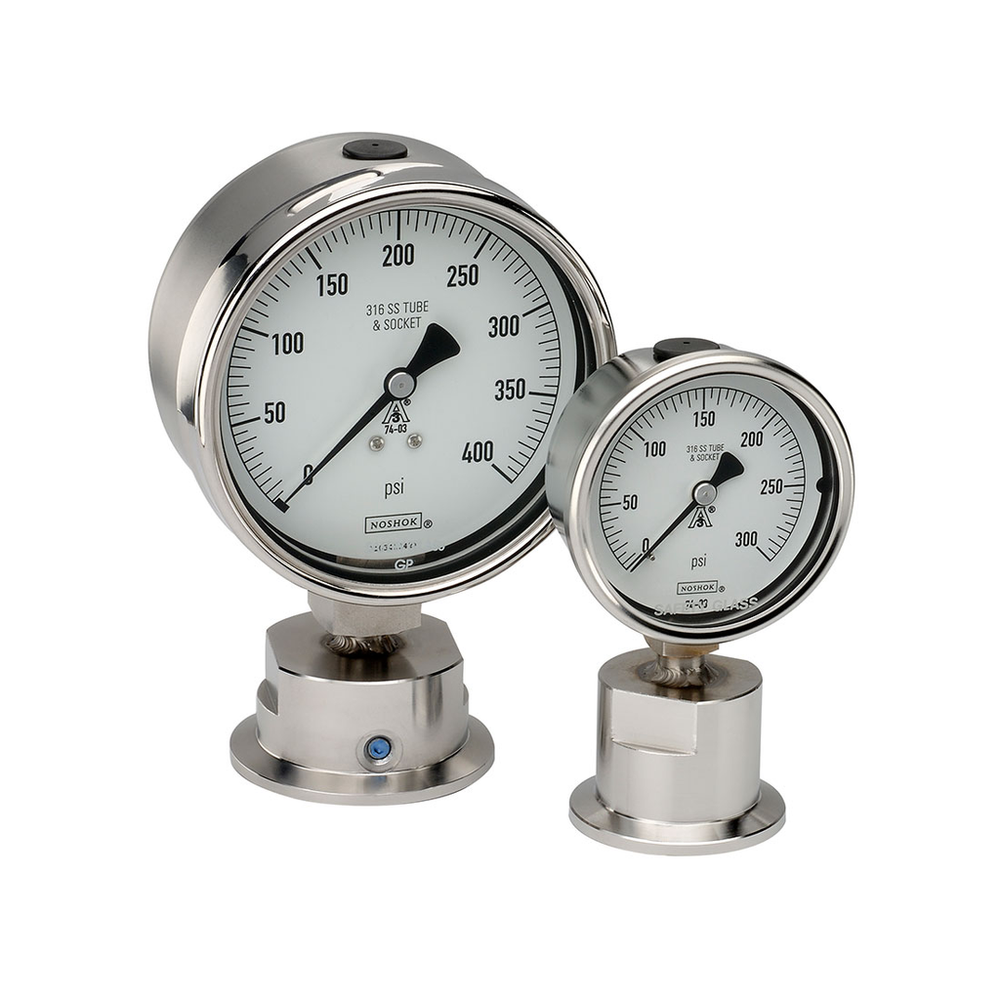

NOSHOK 100-16-1-40-55-0-0

Specifications

• 10 Series Heavy-Duty Sanitary Pressure Gauges
  • None (0) Maximum Indicating Pointer - 4" Gauge (1) Adjustable Pointer - 4" Gauge (2) Polycarbonate Lens - 2-1/2" Gauge (3) Polycarbonate Lens - 4" Gauge (3)
• Accuracy
  • 1.0 %
• Ambient Temperature Range
  • -4 to 60 ºC, 25 to 140 ºF
• Bayonet Ring Material
  • Electropolished 304 Stainless Steel
• Caution
  • Operating conditions including, but not limited to, system pressure, media compatibility and ambient conditions must be considered when selecting gauges and accessories. Improper selections and use of gauges could possibly cause gauge failure and lead to possible property damage or personal injury. Refer to the American National Standard ANSI B40.1 for the correct selection and use of gauges. A copy of this standard may be obtained from the American Society of Mechanical Engineers, United Engineering Center, 345 East 47th Street, New York, NY 10017. In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice. NOSHOK pressure transmitters or transducers are not to be used in heat sterilization systems as stated in 3A Standard 74-03 paragraph D10.1.2 Diaphragm seal must be installed facing downward or in a vertical position for drain ability. Do not install diaphragm seal facing in an upward position.
• Clamp Size
  • 2 in
• Connection Location
  • 1-1/2 or 2 in. ASME-BPE Sanitary Clamp, 316L stainless steel, Diaphragm 316L stainless steel, electropolished to 32 μin Ra or better
• Dial/Display Size
  • Aluminum, white background with black scale.
• Fill Liquid
  • Glycerin, USP Grade
• Gauge Fill Fluids
  • null
• Lens/Display Material
  • Safety Glass
• Material
  • Electropolished 304 Stainless Steel
• Measuring Element
  • 316 Stainless Steel "C" Tube
• Media Temperature Range
  • -40 to 150 ºC, -40 to 300 ºF
• Movement
  • Stainless Steel
• Operating Temperature [Max]
  • 60 ºC, 140 ºF
• Operating Temperature [Min]
  • -4 ºC, 25 ºF
• Options
  • null
• Pointer
  • Balanced Aluminum, Black Finish
• Pressure Range
  • 0 to 160 psig
• Sanitary Clamps and Gaskets
  • Clamp-style fittings are constructed of T304 Stainless Steel; T316 Stainless Steel on request Double hinge design for easy installation and removal Available in sizes from 3/4" to 4" Standard pressure rating of 500 psi at 70 ºF (21 ºC); up to 3000 psi rating on request Clamp gaskets are available in NBR, EPDM, PTFE and FKM All clamps and gaskets meet FDA and 3A sanitary standards ASME-BPE Sanitary Clamp 1-1/2" (CR 12) 2" (CR 16) 2-1/2" (CR 20) 3" (CR 24) NBR Gasket 1-1/2" (BG 12) 2" (BG 16) 2-1/2" (BG 20) 3" (BG 24) PTFE Gasket 1-1/2" (TG 12) 2" (TG 16) 2-1/2" (TG 20) 3" (TG 24)
• Seal Fill Fluid
  • Glycerin
• Series
  • 10 Series Heavy-Duty, Bottom Connected
• Stock
  • Yes
• Type
  • Pressure Gauge
• Warranty
  • 1 yr
