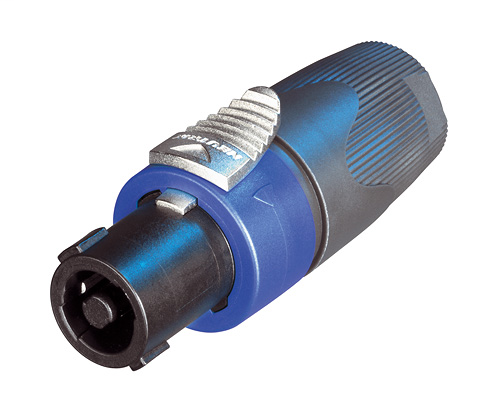

Neutrik NL4FX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Neutrik NL4FX is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Attention
- speakON is NOT to be used as an AC mains or power supply connector!
- Contact resistance
- < 2 mΩ (after lifetime)
- Dielectric strength
- 4 kVdc (peak)
- Insulation resistance
- > 1 GΩ (after dampheat)
- Rated current per contact
- 50 A audiosignal, duty cycle 50 %
- 40 A rms continuous
- Rated voltage
- 250 V ac
Material
- Contact plating
- 4 µm Ag
- Contacts
- Brass (CuZn39Pb3)
- Insert
- PBTP 20 % GR
- Locking element
- Zinc diecast (ZnAl4Cu1)
- Shell
- PBTP 20 % GR
- Strain relief
- Polyacetal (POM)
Mechanic Specifications
- Cable O.D.
- 7 - 14.5 mm
- Cable retention
- ≥ 220 N (subject to cable O.D. and material)
- Lifetime
- > 5000 mating cycles
- Locking device
- Quick Lock (latch)
- Wiresize
- 4 mm² / 6 mm² (screw type terminals/soldering)
- 12 AWG / 10 AWG
- Wiring
- screw type terminals or soldering
Product Information
- Connection Type
- speakON
- Gender
- female
- Product Family
- SPX Series
- Title
- NL4FX
Specifications
- Flammability
- UL 94 HB
- Solderability
- Complies with IEC 68-2-20
- Temperature range
- -30 °C to +80 °C
Williams Automation sells Neutrik parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
