Neutrik NJ3FC6-BAG
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

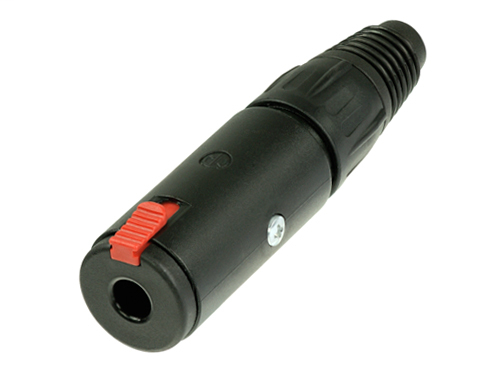

Professional locking 1/4" cable jack for secure in-line connections. Black metal housing, silver contacts, excellent cable protection The 3 pole phone cable jack in-line version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.Professional locking 1/4" cable jack for secure in-line connections, Black metal housing, silver contacts, excellent cable protection
Neutrik NJ3FC6-BAG is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- < 6 mΩ (initial)
- Dielectric strength
- 1 kVdc
- Insulation resistance
- ≥ 1 GΩ @ 500 V dc
- Rated current per contact
- 10 A
Material
- Boot
- Polyurethan
- Contact plating
- 2 µm Ag
- Contacts
- Brass (CuZn37) (Ground)
- Insert
- Polyamide (PA 6.6 30 % GR)
- Shell
- Zinc diecast (ZnAl4Cu1)
- Shell plating
- Black
- Strain relief
- Polyacetal (POM)
Mechanic Specifications
- Cable O.D.
- 3.5 - 8.0 mm
- Insertion force
- < 30 N
- Lifetime
- > 10000 mating cycles
- Locking device
- Latch lock
- Locking force
- > 80 N
- Wiresize
- 1 mm²
- 18 AWG
- Wiring
- Solder contacts
- Withdrawal force
- < 20 N
Product Information
- Connection Type
- Jack
- Gender
- female
- Product Family
- Locking 1/4'' Chassis Jacks
- Title
- NJ3FC6-BAG
Specifications
- Solderability
- Complies with IEC 68-2-20
- Standard compliance
- EIA RS 453, IEC 60603-11
- Temperature range
- -25 °C to +70 °C
