Neutrik NE8FDP
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

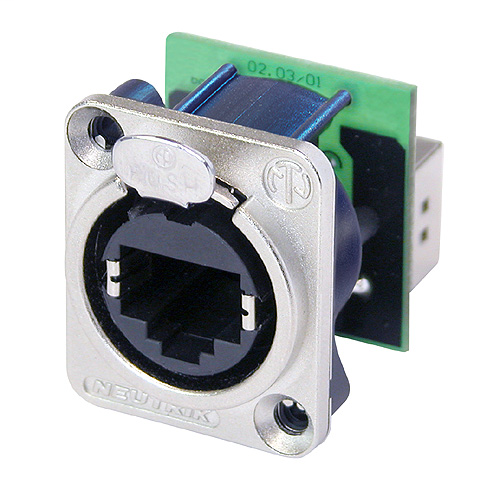

RJ45 feedthrough receptacle, D-shape metal flange with the latch lock, mounting screws included The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.RJ45 feedthrough receptacle, D-shape metal flange with the latch lock
Neutrik NE8FDP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- < 10 mΩ
- Dielectric strength
- 1 kVdc
- Frequencyrange
- 1 - 100 MHz
- Insulation resistance
- > 0.5 GΩ
- Rated current per contact
- 1,5 A
- Rated voltage
- < 50 V
- Standard compliance
- TIA/EIA 586B, IEC11801
- Transmission performance
- CAT 5e
Material
- Contact plating
- 0.2 µm Au over Ni plating
- Contacts
- Bronze (CuSn8)
- Insert
- PBTP 15 % GR
- Shell
- Zinc diecast (ZnAl4Cu1)
- Shell plating
- Nickel
Mechanic Specifications
- Chassis shape
- D
- Insertion force
- ≤ 20 N
- Lifetime
- > 1000 mating cycles
- Locking device
- Latch lock
- Panel thickness
- max. 4 mm 0.16'
- Wiring
- Feedthrough
- Withdrawal force
- ≤ 20 N
Product Information
- Gender
- female
- Product Family
- etherCON D Series
- Title
- NE8FDP
Specifications
- Flammability
- UL 94 V-0
- Temperature range
- -30 °C to +80 °C
