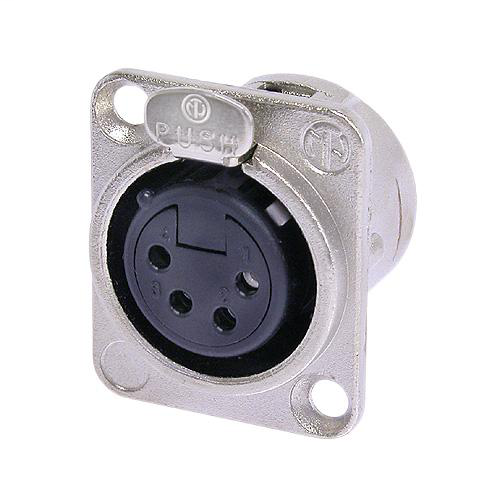

Neutrik NC4FD-L-1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
4 pole female receptacle, solder cups, Nickel housing, silver contacts Universal D-size metal body XLR panel mount series. UL recognized component.4 pole female receptacle, solder cups, Nickel housing, silver contacts
Neutrik NC4FD-L-1 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Capacitance between contacts
- ≤ 7 pF
- Contact resistance
- ≤ 5 mΩ
- Dielectric strength
- 1,5 kVdc
- Insulation resistance
- > 10 GΩ (initial)
- Rated current per contact
- 10 A
- Rated voltage
- < 50 V
Material
- Contact plating
- 2 µm Ag over 2 µm Ni
- Contacts
- Brass (CuZn39Pb3)
- Insert
- Polyamide (PA 6.6 30 % GR)
- Locking element
- Steel Ck67
- Shell
- Zinc diecast (ZnAl4Cu1)
- Shell plating
- Nickel
Mechanic Specifications
- Chassis shape
- D
- Insertion force
- ≤ 20 N
- Lifetime
- > 1000 mating cycles
- Locking device
- Latch lock
- Wiresize
- max. 1.5 mm²
- max. 16 AWG
- Wiring
- Solder contacts
- Withdrawal force
- ≤ 20 N
Product Information
- Connection Type
- XLR
- Gender
- female
- Product Family
- DL Series
- Title
- NC4FD-L-1
Specifications
- Approvals
- UL
- Flammability
- UL 94 HB
- Protection class
- IP 40
- Solderability
- Complies with IEC 68-2-20
- Standard compliance
- IEC 61076-2-103
- Temperature range
- -30 °C to +80 °C
