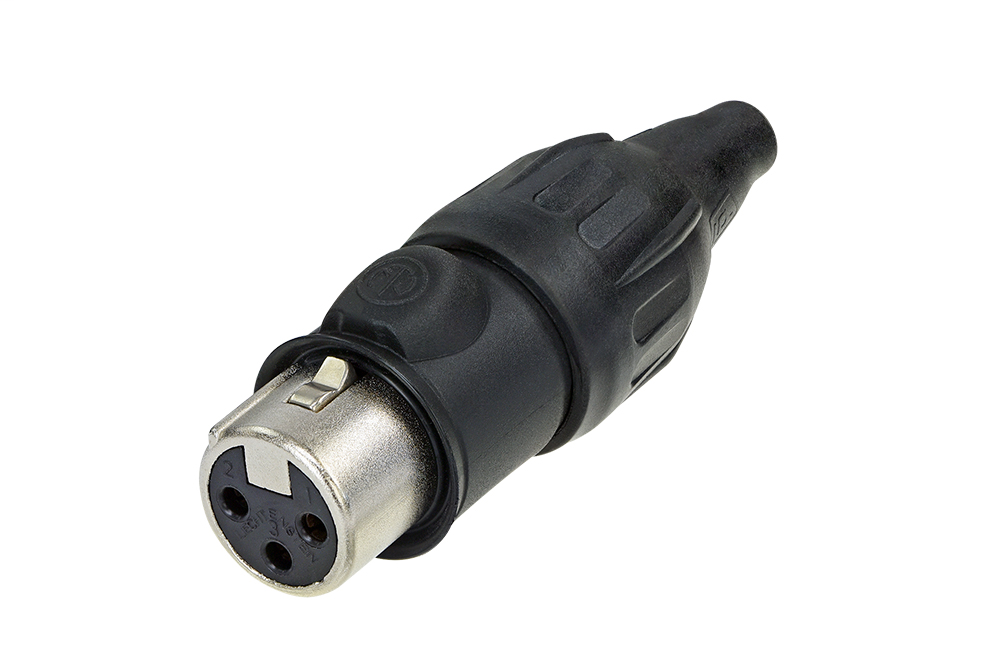

Neutrik NC3FX-TOP
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
3 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP) The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable or chassis connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.3 pole female cable connector, TRUE OUTDOOR PROTECTED (TOP)
Neutrik NC3FX-TOP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Capacitance between contacts
- ≤ 4 pF
- Contact resistance
- ≤ 3 mΩ
- Dielectric strength
- 1,5 kVdc
- Insulation resistance
- > 10 GΩ (initial)
- Rated current per contact
- 8.3 A
- Rated voltage
- < 50 V
Material
- Bushing
- UV-resistant rubber
- Contact plating
- 0.2 µm Au hard alloy over 2 µm Ni
- Contacts
- Bronze (CuSn8)
- Insert
- Polyamide (PA 6.6 30 % GR)
- Locking element
- St3K32 (latch) / Ck 67 (spring)
- Sealing jacket
- UV-resistant rubber
- Shell
- Zinc diecast (ZnAI4Cu1)
- Shell plating
- Shell plating
- Strain relief
- Polyacetal (POM)
Mechanic Specifications
- Cable O.D.
- 5.0 - 8.0 mm
- Insertion force
- ≤ 20 N
- Lifetime
- > 5000 mating cycles
- Locking device
- Latch lock
- Wiresize
- max. 16 AWG
- max. 1.5 mm²
- Wiring
- Solder contacts
- Withdrawal force
- ≤ 20 N
Product Information
- Connection Type
- XLR
- Gender
- female
- Product Family
- TOP Series
- Title
- NC3FX-TOP
Specifications
- Approvals
- UL
- Flammability
- UL 94 HB
- Protection class
- IP65, UL50E (mated)
- Solderability
- Complies with IEC 68-2-20
- Standard compliance
- IEC 61076-2-103
- Temperature range
- -30 °C to +80 °C
