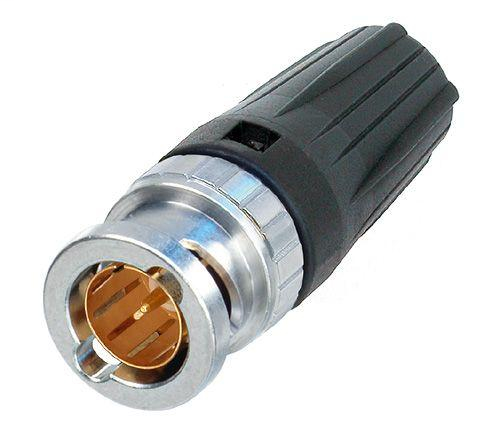

Neutrik NBNC75BFG7
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra Crimp size: Pin: 1.6 mm (square) Shield: 5.0 mm (hex)NBNC75BFG7
Neutrik NBNC75BFG7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- ≤ 2 mΩ (outer)
- ≤ 3 mΩ (inner)
- Dielectric strength
- 1,5 kVdc
- Impedance
- 75 Ω
- Insulation resistance
- > 5 GΩ
- Rated voltage
- <50 V
- VSWR
- ≤1.050/>32 dB up to 1 GHz≤1.065/>30 dB up to 2 GHz≤1.100/>26 dB up to 3 Ghz
Material
- Contacts
- Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
- Insert
- PTFE
- Shell
- Brass (CuZn39Pb3)
- Shell plating
- Optalloy®
Mechanic Specifications
- Cable anchoring
- Jacket crimping
- Cable O.D.
- 4.7 mm
- Cable retention
- > 30 N (Center)
- Crimp size
- 5 Hex crimp (shield) acc. MIL22520/5-43(B)
- Crimp size (pin)
- 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
- Insertion force
- < 25 N
- Lifetime
- > 1000 mating cycles
- Locking device
- Bayonett
Product Information
- Connection Type
- BNC 75 Ω
- Gender
- male
- Product Family
- rearTWIST HD BNC Cable Connectors
- Title
- NBNC75BFG7
Specifications
- Contact crimpability
- Complies with IEC 60803 and IEC 60352-2
- Suitable cables
- Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra
- Temperature range
- -30 °C to +85 °C
