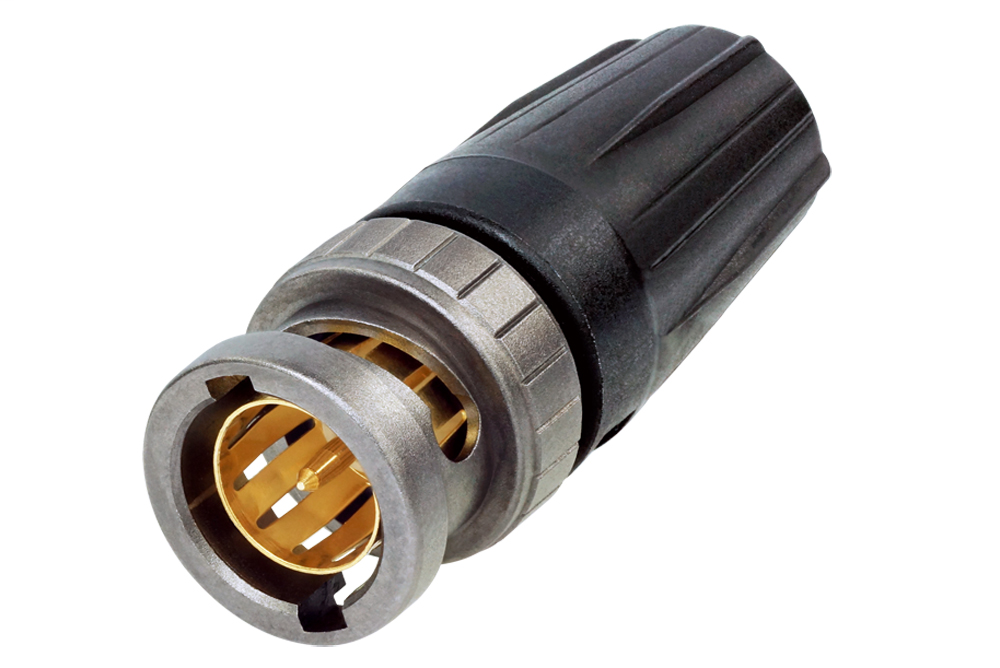

Neutrik NBNC75BDD6X
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.NBNC75BDD6X
Neutrik NBNC75BDD6X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- ≤ 2 mΩ (outer)
- ≤ 3 mΩ (inner)
- Dielectric strength
- 1.5 kVdc
- Impedance
- 75 Ω
- Insulation resistance
- > 5 GΩ
- Rated voltage
- < 50 V
- VSWR
- ≤1.06 / >30 dB up to 6 GHz≤1.13 / >24 dB up to 12 GHz≤1.22 / >20 dB up to 18 Ghz
Material
- Contacts
- Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
- Insert
- PP
- Shell
- Brass (CuZn39Pb3)
- Shell plating
- Antraloy
Mechanic Specifications
- Cable anchoring
- Jacket crimping
- Cable O.D.
- 4.3 mm
- Cable retention
- > 30 N (center)
- Crimp size
- 4.53 Hex crimp (shield)
- Crimp size (pin)
- 1.07 crimp
- Insertion force
- < 25 N
- Lifetime
- > 1000 mating cycles
- Locking device
- Bayonett
Product Information
- Connection Type
- BNC 75 Ω
- Gender
- male
- Product Family
- rearTWIST UHD BNC Cable Connectors
- Title
- NBNC75BDD6X
Specifications
- Contact crimpability
- Complies with IEC 60803 and IEC 60352-2
- Suitable cables
- Belden 1855A, CommScope 7538
- Temperature range
- 30 °C to +85 °C
- UHD optimized cables
- Belden 4855R, Clark Wire CD7523, Gepco VDM230
