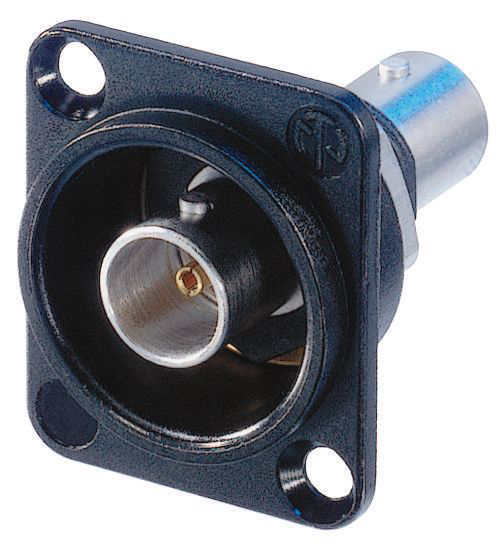

Neutrik NBB75DFIB
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Isolated BNC chassis connectors, feedthrough in black D-shape housing Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).Isolated BNC chassis connectors, feedthrough in black D-shape housing
Neutrik NBB75DFIB is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- ≤ 2 mΩ (outer)
- ≤ 3 mΩ (inner)
- Dielectric strength
- 1,5 kVdc
- Impedance
- 75 Ω
- Insulation resistance
- > 5 GΩ
- Rated voltage
- <50 V
- Signal Type
- HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
- VSWR
- ≤1.03/>37 dB up to 1 GHz≤1.05/>32 dB up to 2 GHz≤1.08/>28 dB up to 3 Ghz
Material
- Contacts
- Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
- D-Shape housing
- Zinc diecast (ZnAl4Cu1) gal black chrome plating
- Insert
- PTFE
- Shell
- Polyacetal (POM) (Insulation Sheell)
- Shell plating
- Optalloy®
Mechanic Specifications
- Chassis shape
- D
- Insertion force
- < 25 N
- Lifetime
- > 1000 mating cycles
- Locking device
- Bayonett
- Mounting direction
- Front mounting
Product Information
- Connection Type
- BNC 75 Ω
- Gender
- female
- Product Family
- D Series
- Title
- NBB75DFIB
Specifications
- Temperature range
- -30 °C to +85 °C
