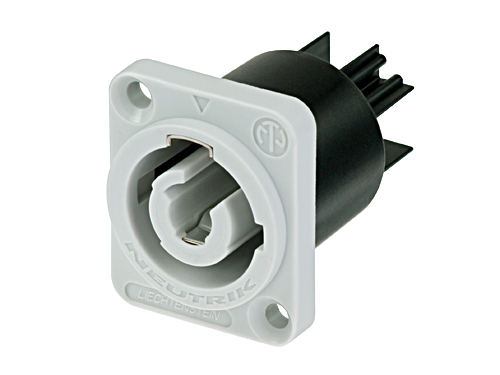

Neutrik NAC3MPB-1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Chassis connector, power-out, 3/16'' flat tab terminals, grey The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!Chassis connector, power-out, 3/16'' flat tab terminals, grey
Neutrik NAC3MPB-1 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- ≤ 3 mΩ
- Dielectric strength
- 4 kVdc / 2.8 kVac
- Insulation resistance
- > 0.1 GΩ (after damp heat test IEC 68-2-30)
- Number of electronical contacts
- 2 + PE
- Rated current per contact
- 20 A rms
- Rated voltage
- 250 V ac
Material
- Contact plating
- 2 µm Ag
- Contacts
- Bronze (CuNi1Si0.2)
- Locking element
- Steel Ck67
- Shell
- Polyamide (PA 6.6 30 % GR)
Mechanic Specifications
- Chassis shape
- D
- Lifetime
- > 1000 mating cycles
- Locking device
- Quick Lock
- Mounting direction
- Front mounting
Product Information
- Gender
- male
- Product Family
- powerCON 20 A
- Title
- NAC3MPB-1
Specifications
- Flammability
- UL 94 V-0
- Temperature range
- -30 °C to +80 °C
