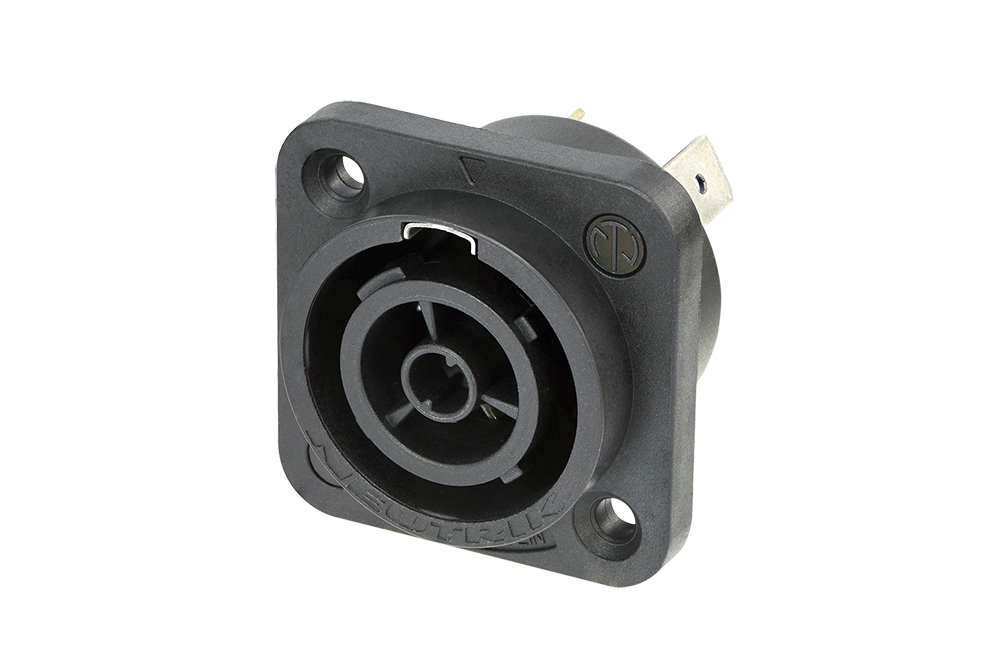

Neutrik NAC3FPX-WOT-TOP
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Appliance outlet connector, 1/4" flat tab terminals, without insulation divider The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.Appliance outlet connector, 1/4" flat tab terminals, without insulation divide
Neutrik NAC3FPX-WOT-TOP is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- ≤ 3 mΩ
- Dielectric strength
- 4 kVdc / 2.8 kVac
- Insulation resistance
- > 0.1 GΩ (after damp heat test)
- Number of electronical contacts
- 2 + PE
- Rated current per contact
- 16 A (USA
- Rated voltage
- 250 V ac
Material
- Contact plating
- 2 µm Ag
- Contacts
- Spring Copper (CuSn0.2)
- Locking element
- Stainless steel
- Shell
- Polyamide (PA 6.6)
Mechanic Specifications
- Lifetime
- > 5000 mating cycles
- Wiresize
- 12 AWG
- 2.5 mm²
Product Information
- Product Family
- powerCON TRUE1 TOP Chassis Connectors
- Title
- NAC3FPX-WOT-TOP
Specifications
- Flammability
- UL 94 V-0
- Protection class
- IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-FPX)
- Temperature range
- -30 °C to +80 °C
