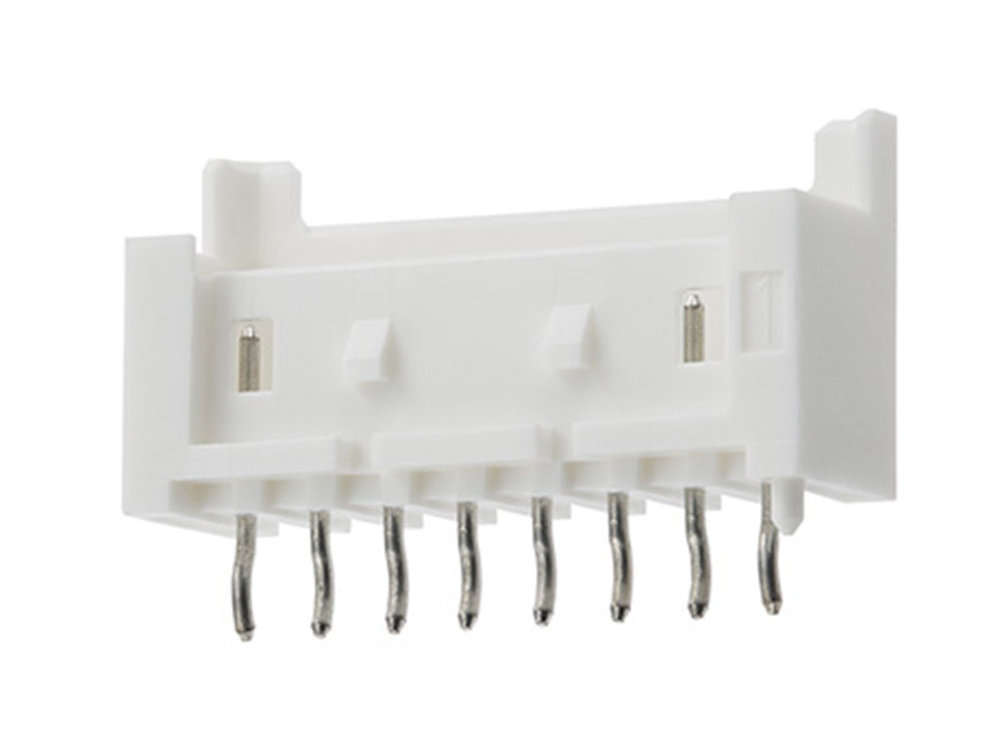

Molex 533750610
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
2.50mm Pitch, Mini-Lock PCB Header, Single Row, Vertical, Through Hole with Kinked Pins, Tin Plating, Positive Lock, 6 Circuits, Bag, 3.40mm PC Tail Length
Molex 533750610 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Agency Certification
- CSA
- LR19980
- UL
- E29179
Electrical
- Current - Maximum per Contact
- 3.0A
- Voltage - Maximum
- 250V AC (RMS)/DC
Physical
- Breakaway
- No
- Circuits (Loaded)
- 6
- Circuits (maximum)
- 6
- Color - Resin
- Natural
- Durability (mating cycles max)
- 30
- First Mate / Last Break
- No
- Flammability
- 94V-0
- Glow-Wire Capable
- No
- Guide to Mating Part
- No
- Keying to Mating Part
- Yes
- Lock to Mating Part
- Yes
- Material - Plating Mating
- Tin
- Material - Plating Termination
- Tin
- Material - Resin
- Polyester
- Net Weight
- 741.800/mg
- Number of Rows
- 1
- Orientation
- Vertical
- Packaging Type
- Bag
- PCB Locator
- Yes
- PCB Retention
- Yes
- PCB Thickness - Recommended
- 1.60mm
- PC Tail Length
- 3.40mm
- Pitch - Mating Interface
- 2.50mm
- Polarized to Mating Part
- Yes
- Polarized to PCB
- Yes
- Shrouded
- Fully
- Stackable
- No
- Temperature Range - Operating
- -40° to +105°C
- Termination Interface: Style
- Through Hole - Kinked Pin
Product Environmental Compliance
- EU ELV
- Not Relevant
- EU RoHS
- Compliant
- Low-Halogen Status
- Not Low-Halogen
- REACH SVHC
- Not Contained Per -D(2020)9139-DC (19 Jan 2021)
Reference - Drawing Numbers
- Packaging Specification
- 533759200-SPK-200
- Product Specification
- 511630000-PS-000, 511631000-PS-000, PS-51103-005-001
- Sales Drawing
- 533750000-SD-000, SD-53375-001-001
