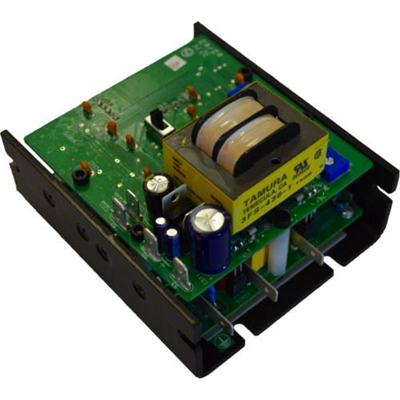

Minarik Drives MMRG40U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Minarik Drives MMRG40U is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q Reversing
- Regenerative/4 Quadrant drives have the ability to perform quick, contactorless reversing on-the-fly!
- MM footprint
- An extremely compact size in an industry standard mounting footprint.
- Options and accessories
- 201-0024 inhibit plug with 18 inch leads for regenerative brake option, 200-0386 limit switch logic board and a DLC600 digital controller.
- PCM option
- Add a -PCM to the end of the part number to receive the drive with an isolation transformer daughter card.
- Spade terminals
- Easy to use, lower cost and able to fit in smaller package.
- Speed range and regulation
- 1% regulation over 50:1 speed range.
- Stopping Modes
- User can decelerate (N.O.),regeneratively brake (N.O.) or coast to a stop (N.C.).
- User adjustable calibration pots
- IR compensation, max speed, forward current limit, reverse current limit and forward and reverse acceleration.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 10 Amps
- Enclosure
- Chassis
- Input Voltage
- 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 180 VDC
- Reversing Type
- Regenerative
Williams Automation sells Minarik Drives parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
